Yueqing Winston Electric Co., Ltd. >> Electronical Programmable Countdown Digital Time Relay with CE

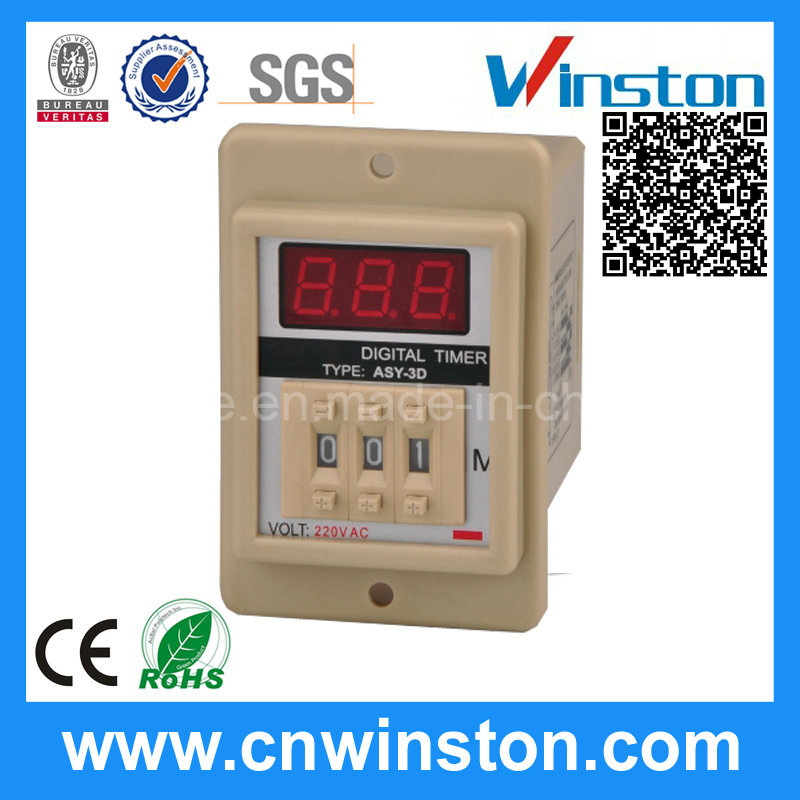

Electronical Programmable Countdown Digital Time Relay with CE

Name: Electronical Programmable Countdown Digital Time Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771244645
Availability: InStock
Rating: 4.6 (22 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 6.5-8.5/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ASY-3D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Brand:	Winston
Consumed Power:	3va
Weight:	230g
Reset Time:	0.3 Sec Max
Manufacturer:	OEM
Condition:	Original New
Dimensions(mm):	88h 58W 68d
Ambient Huminity:	48~85%Rh
Ambient Temperature:	-10~+55 Degree
Quality:	2 Year Warranty

Product Description

Features:
1) Types: ASY-3D, digital timer, 3 -digital
2) Contact capacity: 5A, 250V AC
3) Coil voltage:
A) DC: 12, 24V
B) AC: 12, 24, 48, 110, 220, 240V
4) Coil power: 3VA
5) Time range:
A) ASY-2D: 9.9s, 99s, 9.9min, 99min, 9.9h, 99h
B) ASY-3D: 9.99s, 99.9s, 999s, 9.99min, 99.9in, 999min, 9.99h, 99.9h, 999h
6) Electrical life: 100, 000 times
7) Mechanical life: 5, 000, 000 times
8) Operating temperature: -40 - +50° C
9) Repeat error: ± 0.05%
10) Temperature error: ± 0.05%
11) Voltage error: ± 0.05%
12) Reset time: 0.3s

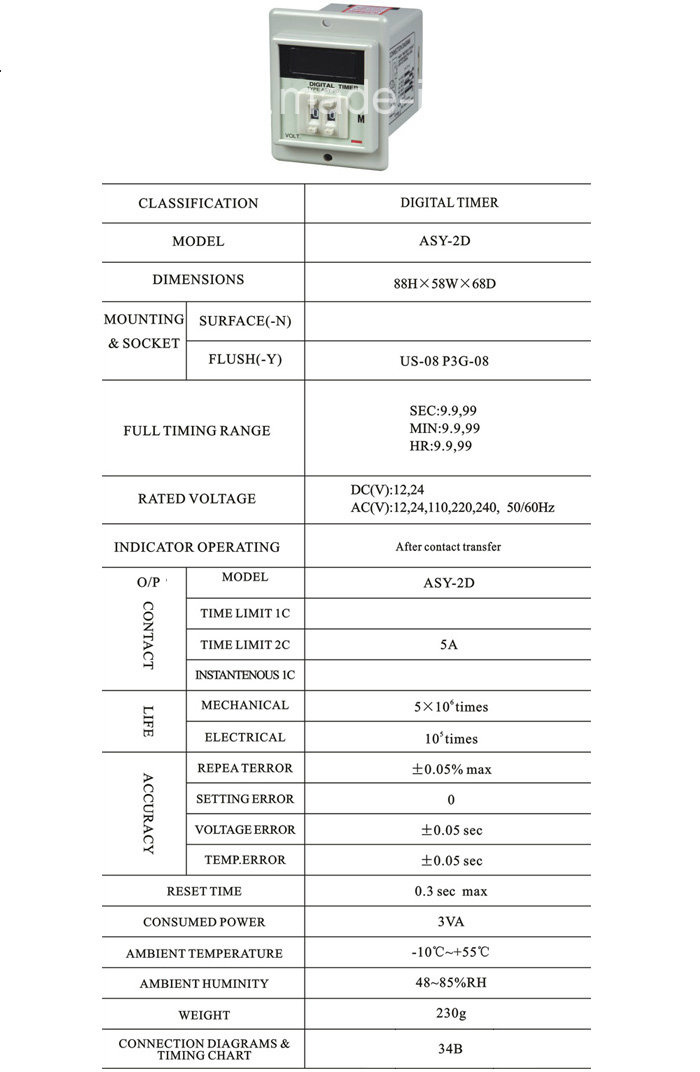

Specification

Classification			Digital Timer	Digital Timer
Specification Model			ASY-2D	ASY-3D
Dimension			88H × 58W × 68D	88H × 58W × 68D
Mounting & Socket		Surface(-N)	PF083A	PF083A
		Flush(-Y)	US-08 P3G-08	US-08 P3G-08
Full Timing Range			SEC: 9.9,99 MIN: 9.9,99 HR: 9.9,99	SEC: 9.99,99.9,999 MIN: 99.9,999 HR: 99.9,999
Rated Voltage (V)			AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating			After contact transfer	After contact transfer
O/P Contact	Model		ASY-2D	ASY-3D
	Time Limit 1C
	Time Limit 2C		5A	5A
	Instantaneous 1C
Life	Mechanical		5 × 106 Times	5 × 106 Times
	Electrical		105 Times	105 Times
Accuracy	Repeat Error		±0.05% max	±0.05% max
	Setting Error		0	0
	Voltage Error		±0.05 Sec	±0.05 Sec
	Temp Error		±0.05 Sec	±0.05 Sec
Reset Time			0.3 sec max	0.3 sec max
Consumed Power			5VA	5VA
Ambient temperature			-10oC~+55oC	-10oC~+55oC
Ambient Huminity			48~85% RH	48~85% RH
Weight			230g	230g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
