Product Specifications
| Prod Model: |
EM17 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor Type: |
One Master with 300MHz Chipset |
| Usage: |
Broadcasting and TV Network Communication Device |
| Type: |
Wired |
| Information Content: |
Data |
| Support Network: |
Broadcasting and TV Network Communication Headend |
Product Description

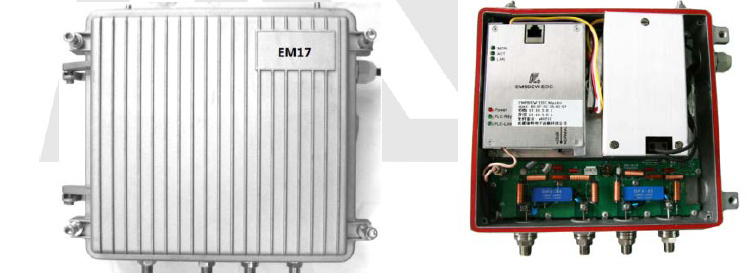

EM17 is a sub-headend equipment for broadband data access in CATV system. It has two CATV input ports and one IP combined output ports as well as an Ethernet interface (or RJ45 interface). Power supply is optional between separated AC 220V and embedded AC 60V.
Features:
1. Modular design. It makes flexible selection according to terminal subscriber quantity, for dual way output/input, or single-way output/input and meet different demands
2. Advanced waterproof, anti-lightning, ensure stable operation under rugged environment.
3. Efficient high-quality switched power supply with anti-surge and under-voltage protection function, improves the general performance while reduce the power consumption and extend working life.
4. Suitable for strand horsing and ground tank installation, make the installation becomes easy.
5. 300Mbps
| Item | Specification |
| CATV RF signal In | Quantity of input port | 1/2pcs |
| Frequency range |
| 87 ~ 860 MHz |
| Input impedance | 75Ω |
| Return loss | ≥ 16 dB |
| CATV RF signal Out | Quantity of output port | 1(2) pcs |
| Frequency range |
| 87 ~ 860 MHz |
| Input impedance | 75Ω |
| Return loss |
| ≥ 16 dB (47/87-860MHz) |
| General | Link loss | 10 dB ~ 80 dB |
| Recommended link loss | 40 dB ~ 60 dB |
| B type power source (50Hz) | AC 150 V - 265 V |
| A type power source (50Hz) | AC 40 V - 72 V |
| Working temperature | -25° C ~ +70° C |
| Weight | ≤ 3.5 Kg |
| Dimension | 245× 197× 90 (mm) |
| Power consumption | ≤ 6 W |
