Eoc Headend Optical Network Base (ONB2000)
Product Specifications
| Prod Model: |
ONB2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset: |
7410 High Speed |
| Master: |
Two Master |
| Type: |
Wired |
| Information Content: |
Data |
| Support Network: |
Broadcasting and TV Network Communication Headend |
| Usage: |
Broadcasting and TV Network Communication Device |
Product Description

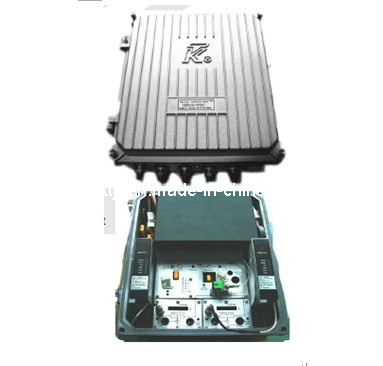

ONB2000 optical network base is a kind of four-way RF output outdoor optical network base with high performance and multi-function.Its basic configuration is GZE series optical node, in which we can install EOC master (max.2 masters), ONU, IP network management responder (class II) and two-way low loss data signal insert output port (max.Two ways of IP data, can support 128 terminal address simultaneously).
Features:
1.Advanced waterproof and thunder-proof, could work stably in all-weather condition;
2.Four-way output;
3.CATV signal output over 104dBμV;
4.Could install 2 EOC masters;
5.Could install ONU inside;
6.Flat appearance, can save working space.
|
Item |
Specification |
|
CATV signal (downstream) |
Optical receiving display range |
-7~0 (dBm) |
|
Nominal optical wavelength |
1290~1600 (nm) |
|
Frequency range |
47/87~860/1000 (MHz) |
|
Flatness |
± 0.75 dB |
|
RF output signal level |
104dBμ (-7dBm receiving) |
|
C/CTB |
> 65dB (79-path PAL-D analog TV channel) |
|
C/CSO |
> 62dB 79-path PAL-D analog TV channel) |
|
Return loss |
≥ 16dB (87~860/1000MHz) |
|
EOC data |
Frequency range |
5~65MHz (ONB2000H) |
|
2~30MHz (ONB2000) |
|
Port isolation |
≥ 100dB |
|
EOC modem module number |
1~2 |
|
Uplink interface |
100Base-T |
|
Max RF output signal level |
118dBμ V |
|
One-way data original data |
224Mbps |
|
One-way effective IP data throughout |
> 60Mbps |
|
One-way data user terminal number |
Can support 64 online users simultaneously |
|
Total data user terminal number |
128 |
|
Data flow difference service management |
Support |
|
Remote national standard SNMP management |
Support |
|
Remote software upgrade |
Support |
|
Telnet login management |
Support |
|
Whole machine |
Optical connector type |
SC/APC (FC/APC ) |
|
Output impedance |
75Ω |
|
Power supply range |
Cored wire feed |
AC 40~72V |
|
Municipal electric power supply |
AC 150~260V |
|
Max feed current |
AC 3A |
|
working temperature |
-25° C~55° C |
|
Dimension |
300× 271× 106 (mm) |
|
Humidity |
10%~90% non-condensing |
|
Power consumption |
≤ 35W(with network management, 2 EOC modules) |
Order guide
|
Product |
Name |
Model |
Remark |
|
EOC product |
Optical network base |
ONB2000A |
Power supply: AC60V inner feed |
|
Optical network base |
ONB2000B |
Power supply: 220V municipal electric power supply |
