Product Specifications
| Prod Model: |
EM18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Indoor Type |
| Support Network: |
Ethernet |
| Type: |
Wired |
| Information Content: |
Data |
| Usage: |
Broadcasting and TV Network |
Product Description

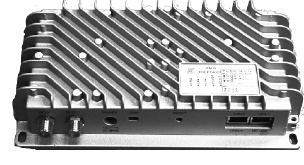

EM18 is headend equipment for broadband data access in CATV system. It has one CATV input port and one CATV/IP data combined output port as well as one Ethernet interface. Working voltage DC12V is provided by external power supply adaptor.
Features:
1. Chain loss could reach 80dB; Transmission distance could be 500 meters. It's suitable for current HFC network.
2. Little installation space(204mm× 118mm× 42.5mm), advanced anti-lighting protection function.
3. Excellent external power supply adaptor, over-voltage and under-voltage protection, high reliability and long use life.
4. Meet MIB requirements and realized the remote control for EM18.
5. Support VLAN and QOS.
6. Support SNMP, could manage the system by local or remote.
7. Support WEB management, easy for maintenance.
8. Support bandwidth control and management.
|
Item |
Specification |
|
CATV signal RF input |
CATV input port |
1pc |
|
Frequency range |
47-860 MHz |
|
87-860 MHz |
|
Input impedance |
75Ω |
|
Return loss |
≥16 dB (47/87MHz-860MHz) |
|
CATV signal RF combined output |
CATV and IP data combined output port number |
1pc |
|
Single-path output port CATV user number |
47MHz-860MHz (EM18VC) |
|
87MHz-860MHz(EM18RC) |
|
Output impedance |
75Ω |
|
Return loss |
≥16 dB (47MHz-860MHz) |
|
≥16 dB (87MHz-860MHz) |
|
EOC modem |
Upper link |
100Base-T |
|
Return loss |
≥14dB (7.5MHz-30MHz) EM90VW |
|
≥14dB (7.5MHz-65MHz) EM90RW |
|
Data flow difference service management |
Support |
|
Remote national standard SNMP management |
Support |
|
Remote software upgrade |
Support |
|
Telnet login management |
Support |
|
General |
Link loss |
10dB-80dB |
|
Recommended link loss |
40dB-60dB |
|
Voltage |
DC 12V |
|
Working temperature |
-25°C~ +70°C |
|
Weight |
750g(power adapter 100g) |
|
Dimension |
204×118×42.5 (mm) |
|
Power consumption |
≤6 W |
n Ordering guide
|
Product Type |
Item |
Model |
Remark |
|
EOC product |
Ethernet Data Access headend |
EM18-VC |
Working frequency
7.5MHz-30MHz |
|
Ethernet Data Access headend |
EM18-RC |
Working frequency: 7.5MHz-65MHz |
