Product Specifications
| Prod Model: |
EM19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Master: |
7400 Chipset 300MHz |
| Type: |
Wireless |
| Support Network: |
Broadcasting and TV Network Communication Headend |
| Usage: |
Broadcasting and TV Network Communication |
Product Description

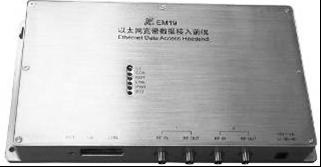

EM19 is the indoor type sub-headend equipment for broadband data access in CATV system, being installed on cable output line of HFC CATV network node or on user distribution input line. It has two CATV input ports, two CATV/IP combined output ports and one Gigabit Ethernet interface.
Features:
1. Adopt the design of modularization, cavity and double covers inside and outside to achieve high isolation between modules, thus can not only meet with the requirements of different communities and users, but also make it more convenient for product maintenance and configuration to provide a humanistic operation platform for user;
2. Small size, compact structure, adopt military-product-class outlook inside and outside, beautiful design, durable; RF input port and output port have thunder-proof design;
3. Adopt excellent high-efficient external power adapter, has passed national 3C Certification, possess good EMC performance and perfect surge immunity protection function. Thus it has greatly improved the reliability, reduced the power consumption and extended the useful life of the equipment;
4. Possess national standard MIB network management; It can remotely control EM19 data access headend and each ES series user terminal.
|
Item |
Specification |
|
CATV signal RF input |
CATV input port number |
2 |
|
Frequency range |
87 MHz~1000 MHz |
|
Input impedance |
75Ω |
|
Return loss |
≥ 16 dB (47MHz~1000MHz) |
|
≥ 16 dB (87MHz~1000MHz) |
|
CATV signal RF output |
CATV output port number |
2 |
|
One-way output port CATV user number |
200 |
|
Frequency range |
87 MHz~1000MHz |
|
Output impedance |
75Ω |
|
Return loss |
≥ 16 dB |
|
EOC modulation |
EOC modem module (optional) |
1 |
|
Frequency range |
(7.5MHz~30MHz) EM90VW |
|
(7.5MHz~65MHz) EM90RW |
|
Uplink interface |
10/100/1000 MBase-T |
|
Data flow difference service management |
Support |
|
Remote national standard SNMP management |
Support |
|
Remote software upgrade |
Support |
|
Telnet login management |
Support |
|
Whole machine |
Working link loss |
10dB~80dB |
|
Recommend best working link loss |
40dB~60dB |
|
(50Hz) Power adapter power supply voltage |
~100V- ~240V |
|
Working temperature |
-25° C~+70° C |
|
Weight |
≤ 1.5Kg |
|
Dimension |
260× 140× 36.5 (mm) |
|
Power consumption |
≤ 6W |
n Ordering guide
|
Product Type |
Item |
Model |
Remark |
|
EOC product |
Ethernet Data Access Headend |
EM19C |
Working frequency: 47-860 MHz |
|
Ethernet Data Access Headend |
EM19HC |
Working frequency: 5-65MHz/87-1000MHz |
