Product Specifications
| Prod Model: |
EM40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outdoor: |
Waterproof |
| Max Master Quatity: |
for Master in Max |
| Chipset: |
300Mbps High Speed |
| Type: |
Wired |
| Support Network: |
Broadcasting and TV Network Communication Headend |
| Usage: |
Broadcasting and TV Network Communication Device |
Product Description

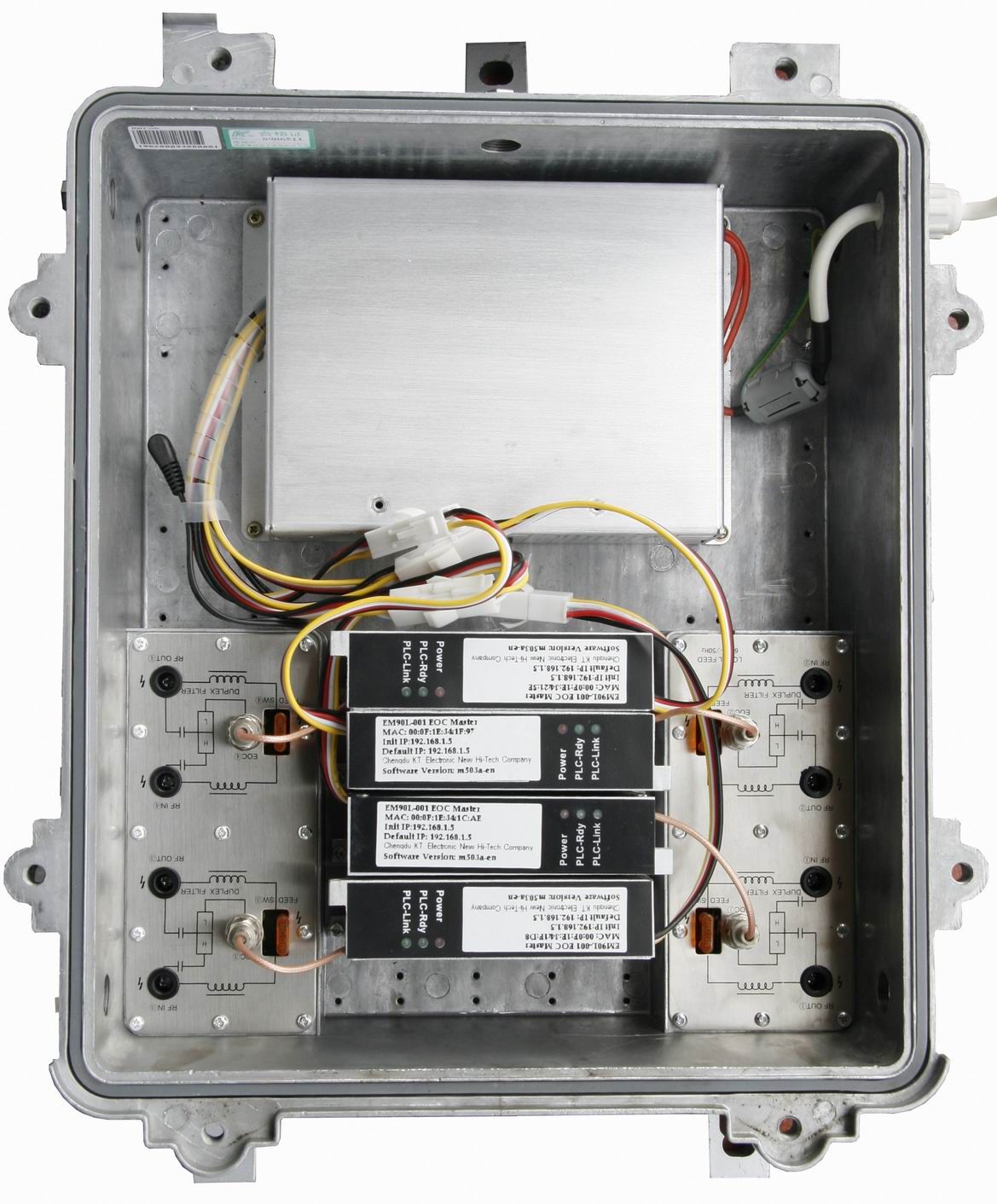

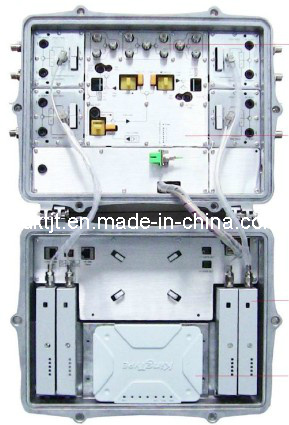

EM40 is the cable TV broadband digital access headend equipment. It gains four cable TV input ports and four cable TV IP mixture output ports, one optical fiber and Ethernet access port(or RJ45 port), individual AC 220V power port (or AC 60V inner feed ).
Features:
1. Advanced water-proof, anti-dust, anti-lighting protection, ensure the stable operation under all kinds of environment.
2. Highly efficient switching power supply. It has blameless over-voltage protection, make its reliable much more better. This makes power lower and long useful life.
3. The new structure designs suitable for strand wires as well as ground tank installation. Excellent heat-sinking ability, super user service platform make engineering installation easier.
4. Can install 1-4 EoC master. Bandwidth 300-1200Mbps
|
Item |
Specification |
|
CATV RF signal input |
Input ports number |
4pcs |
|
Frequency range |
47 MHz~860 MHz |
|
Input impedance |
75Ω |
|
Return loss |
≥ 16 dB (47MHz~550MHz) (EM40A/B) |
|
≥ 16 dB (87MHz~550MHz) (EM40HA/HB) |
|
CATV RF signal output |
Output ports number |
4pcs |
|
Consumer numbers of one way output port |
200pcs |
|
Frequency range |
5 MHz~860 MHz |
|
Output impedance |
75Ω |
|
Return loss |
≥ 16 dB (47MHz~550MHz ) (EM40A/B) |
|
≥ 16 dB (87MHz~550MHz) (EM40HA/HB) |
|
≥ 14dB (550MHz~860MHz) |
EOC
Modem |
EOC demodulate modulating module |
4pcs |
|
Frequency range |
(7.5MHz~30MHz) EM90VL |
|
(7.5MHz~65MHz) EM90RL |
|
Uplink interface |
100MBase-T |
|
Data traffic QoS and Vlan management |
support |
|
Remote national standard SNMP management |
support |
|
Remote software upgrade |
support |
|
Telnet login management |
support |
|
General |
Working link loss |
10dB~80dB |
|
Recommended link loss |
40dB~60dB |
|
AC power voltage (50Hz) |
AC 180V-250V |
|
Inner power voltage(50Hz) |
AC 35V-70V |
|
Working temperature |
-25~+70° C |
|
Waterproof performance |
Waterproof when under two atmosphere pressure |
|
Weight |
10Kg |
|
Dimension |
480× 400× 130 (mm) |
|
Power consumption |
≤ 40W |
n Ordering guide
|
Product Type |
Item |
Model |
Remark |
|
EOC products |
Ethernet Data Access headend |
EM40A |
60V power supply, working frequency
47MHz~550MHz |
|
Ethernet Data Access headend |
EM40B |
220Vpower supply, working frequency
47MHz~550MHz |
|
Ethernet Data Access headend |
EM40HA |
60Vpower supply, working frequency87MHz~550MHz |
|
Ethernet Data Access headend |
EM40HB |
220Vpower supply, working frequency87MHz~550MHz |
