Shenzhen JHC Technology Development Co., Ltd. >> Embedded Box Computer with I7 3G GPS WiFi

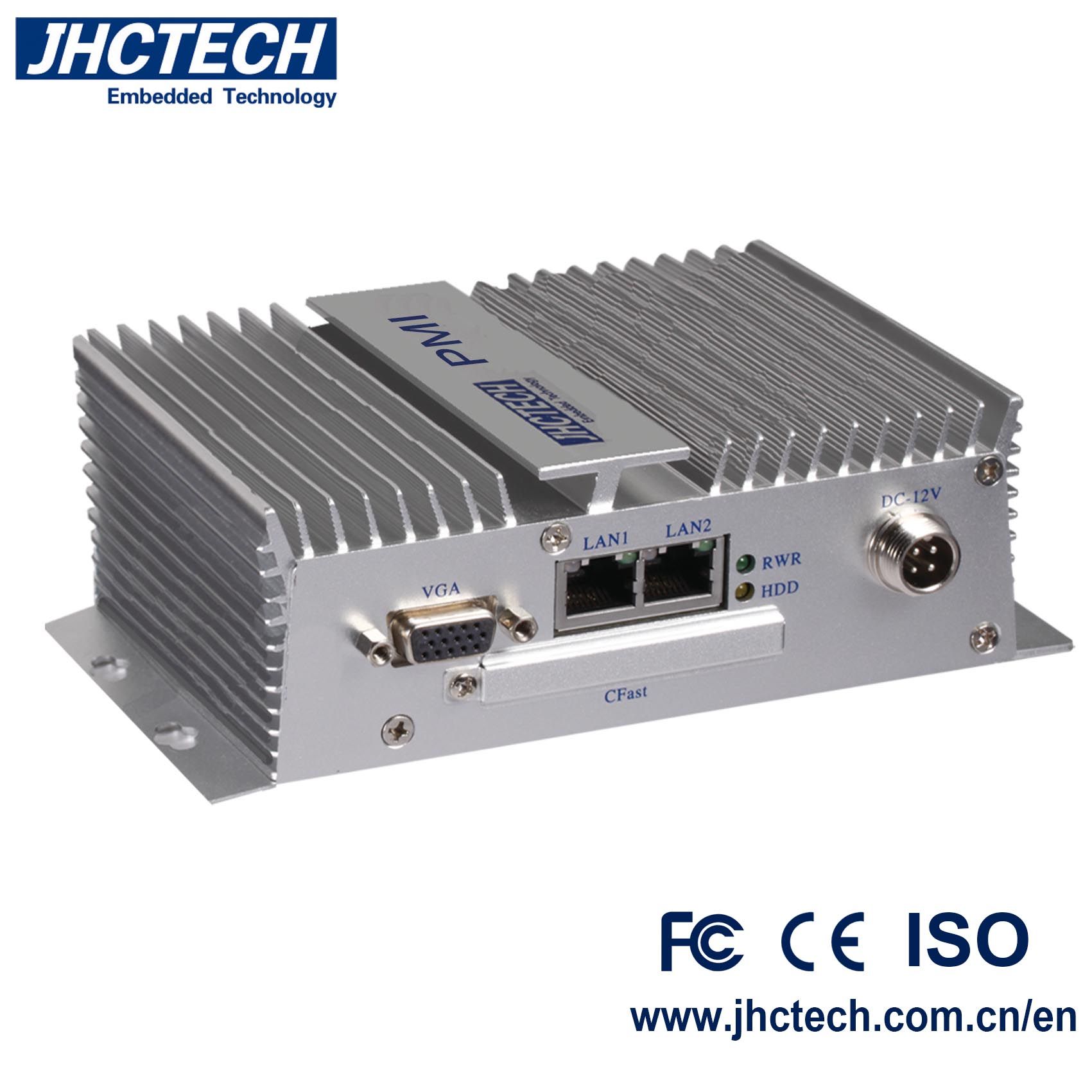

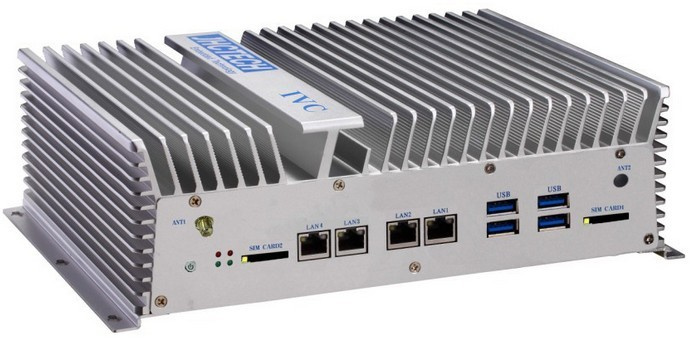

Embedded Box Computer with I7 3G GPS WiFi

Name: Embedded Box Computer with I7 3G GPS WiFi
Brand: china-manufacturer-directory.com
SKU: 751527635
Availability: InStock
Rating: 4.4 (35 reviews)

Supplier:	Shenzhen JHC Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	IVC-3150-S001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	5kg
Size:	228.726349mm
USB:	4*USB
Chip:	Intel Qm87
CPU:	Intel 4th
LAN Ports:	4*LAN
Type:	IPC
CPU Card Size:	Full-size Card
CPU Type:	Core Duo
Hard Disk Rack Type:	Board Type
Installation:	Horizontal
Application:	Industrial
Accessories:	CPU Card
Case Type:	Box Computer

Product Description

Features:

Aluminum alloy chassis, fan less design
Core™I7/I5/I3 CPU
Intel® QM87
2xDDR3/DDR3L 1333/1600 SODIMM, Max16GB
Onboard GPS/WIFI/3 G, single SIM card.
DP/DVI-D display
4xPOE LAN/8bitDIO/4xCOM
4xUSB(2xUSB2.0/2xUSB3.0)
Shock &vibration resistance
Widely voltage input, Ignition for Various Vehicle

SYSTEM	CPU	Intel® 4th Generation Core TM Processor
	MEMORY	DDR3/DDR3L 1333/1600MHZ, up to 16GB
	EXPANSION	3Mini Pcle (1Full-size with SIM holder)
	DISPLAY	DP, DVI-D
	DIO	8 bit DIO
	Ethernet	4*M12 Ports for GbE POE(15.4W per port) Intel® 1210
	SSD	1*mSATA
	HDD	2*2.5" SATA HDD Bays
	SERIAL PORTS	RS232x2,RS485x2(Auto Direction Control)
	USB	USB 2.0 2, USB3.02
	CONTROL	power on/off × 1
	LED LIGHT	power light×1,HDD light×1
	WATCH DOG TIMER	timer system reset/interrupt
POWER	DC IN-PUT VOLTAGE IN-PUT	built-in DC-DC convertor
	DC IN-PUT VOLTAGE IN-PUT	9-36VDC
	AC IN-PUT VOLTAGE IN-PUT	external adapter(for option)
	AC IN-PUT VOLTAGE IN-PUT	100VAC~240VAC@50~60Hz
	OS	Windows 7,Windows 8,Linux(embedded)
	OPTION	WIFI / 4G/GPS/CAN
MECHANICAL	STRUCTURE	aluminum case,Wrinkle shape for cooling, ultra-slim
	COLOUR	Silver
	INSTALLATION	in-wall, desktop
	DIMENSIONS	228.716349mm
	WEIGHT	4.85Kg
ENVIROMNTAL	OPERATION TEMPERATURE	20~70ºC-SSD Without Airflow -10~50ºC-HDD Without Airflow
	STORAGE TEMPERATURE	-40°C~ 80°C
	STORAGE HUMIDITY	5~90%@40°C, non-condensing
	VIBRATION	5 grms / 5 ~ 500Hz / in work status(SSD)
	VIBRATION	1 grms / 5 ~ 500Hz /in work status HDD
	SHOCK	50 g peak acceleration (duration 11ms)(CFD)
	SHOCK	20 g peak acceleration( duration 11ms)( built -in HDD module)
EMC	CE /FCC A class ,UL
ORDER INFORMATION
IVC-3150
Aluminum alloy chassis,Support 4th Generation Intel Core™ i7/i5/i3 and Mobile Processor,4*POE LAN,GPS/3G/WIFI,DC9~36V widely voltage input
IVC-3150
Intel® 4th Generation Core TM Processor
Intel QM87
4*M12 Ports for GbE POE(15.4W per port) Intel® 1210
WBESITE
WWW.JHCTECH.COM.CN/EN

JHCTECH IVC-3150 is a Industrial Computer with 3G,WIFI, GPS, 4th On board i7 CPU and dedicated for In-Vehicle systems, Fishing Vessel, Wireless Communication and some other solutions.

Established in 2002, JHC Technology is one of the leaders of advanced industrial and embedded computing platforms today. Devoted to Innovation and Services, JHC Technology provides integrated solutions, hardware and software services and system integrators all around the world.

Reliable and high quality embedded platforms include industrial PCS, embdedded motherboards and systems, industrial panel PCS, JHC Technology offers customized services from products designing and product development on through to volume maunufacturing and after -sales services.

With 13 years experience of insisiting on innovation and practise, JHC Technology has made a big progress in the fields of intelligent infrastructure, intelligent manufacturing, smart service, as well as be praised in the industry.

JHC Technology is announced to create more diversified embedded products and solutions at higher quality standards to meet world-class design and manufacuring demands in recent years.

Our customers now are distributed over 30 countries: Malaysia, Singapore, Thailand, Ireland, Poland, Spain, Italy, UK, Chile, Mexico, Peru, etc.

JHC Technology Core Values

Reliability: Providing perfect products to our customers

Integrity: We value integrity, which is the fundamental for JHC Technology choosing business partner

Innovation: Keeping pace with indstry leaders to maintain the most advanced technolog, JHC Technology owns the ability of meet our customers needs.

Product Innovation

JHC Technology's development expertise has a strength in product designs that have the most perfect design process for interior and exterior, wihch has a better result to make customers benefit more. JHC Technology's OEM/ODM capabilities help customers meet exact specifications and requirements. JHC Technology has made a significant investment in R&D cabailities in the years to come and will continue to do so much that we can maintain the cutting-ege technology in the industry. JHC Technoloyg has invested aggressively in R&D capabilities and will continue to do so to maintain a leading edge advantage for new designs.

Market Focus

JHC Tecnoloyg has established a worldwide reputation for embedded technology and industry fields. This makes it possibel for JHC Technology to hold a solid position in Factory Automation and Robot Application, as well as the ITS and smart service.

What 's more, JHC Technology owns advtanced technology meeting the specific needs in Intellingent Transportation, Industrial automation, Environmental protecting, Medical and smart service, digital city.
