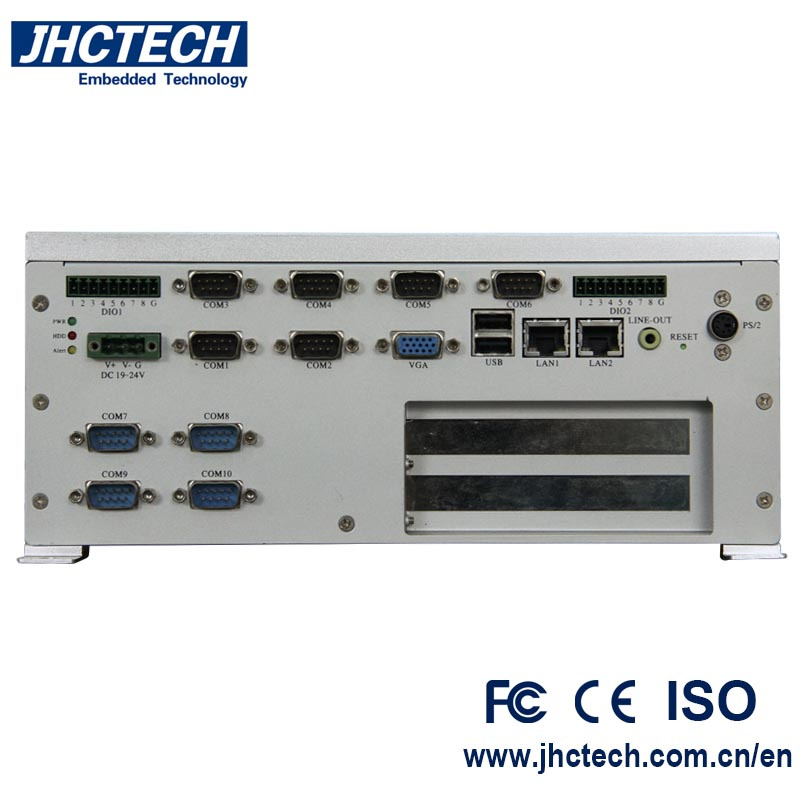

Embedded Box Fanless Industrial Computer with Atom CPU

Name: Embedded Box Fanless Industrial Computer with Atom CPU
Brand: China-Manufacturer-Directory.com
SKU: 751791545
Availability: InStock
Rating: 4.4 (52 reviews)

Supplier:	Shenzhen JHC Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HTS-1320
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Products Line:	Industrial Computer
Type:	IPC
CPU Card Size:	Half-size Card
Hard Disk Rack Type:	Board Type
Installation:	Wall-Mounted
Application:	Industrial
CPU Type:	Atom
Case Type:	Box Computer
Power Supply Type:	DC
System Expansion Slot:	2 PCI

Product Description

Features:
Aluminum alloy chassis, fan less design
Intel Atom D525 1.8GHz Intel® ICH8M
2xDDRIII 800 SODIMM, Max. 4GB
1x Mini Card support mSATA/2xPCI expansion
VGA display 2x 1000Mbps/16 channel DIO/10 COM
2 USB/audio/CF card Shock & Vibration resistance

SYSTEM	CPU	Intel® Atom D525 Processor 1.8GHz processor
	MEMORY	DDRIIISODIMM,up to 4 GB
	EXPANSION	MINI CARDx1,support mSATA
	DISPLAY	VGA
	M/K	PS/2
	Ethernet	Realtek RTL8111DL 10/100/1000Base-TX RJ-45 ×2
	SSD	CFAST,mSATA
	HDD	2.5" HDD Bay
	SERIAL PORTS	RS-232/422/485×6, RS232*4
	USB	USB 2.0 × 2
	CONTROL	power on/off × 1
	LED LIGHT	power light×1,HDD light×2,alarm light x2
	DIO	16 Bit DIO
	WATCH DOG TIMER	timer system reset/interrupt
POWER	DC IN-PUT VOLTAGE IN-PUT	built-in DC-DC convertor
	DC IN-PUT VOLTAGE IN-PUT	DC9-24V
	AC IN-PUT VOLTAGE IN-PUT	external adapter(for option)
	AC IN-PUT VOLTAGE IN-PUT	100VAC~240VAC@50~60Hz
	OS	Windows 7,Windows XP,Windows XP Embedded,Linux
	OPTION	WIFI
MECHANICAL	STRUCTURE	aluminum case,Wrinkle shape for cooling, ultra-slim
	COLOUR	gray
	INSTALLATION	in-wall, desktop
	DIMENSIONS	267.2203116.4 mm
	WEIGHT	3Kg
ENVIROMNTAL	OPERATION TEMPERATURE	-20~65ºC -SSD Without Airflow -10~50ºC -HDD Without Airflow
	STORAGE TEMPERATURE	-20°C~ 70°C (-4°F ~ 158°F)
	STORAGE HUMIDITY	5~90%@40°C, non-condensing
	VIBRATION	5 grms / 5 ~ 500Hz / in work status(CFD)
	VIBRATION	1 grms / 5 ~ 500Hz /in work status ( built -in HDD module)
	SHOCK	50 g peak acceleration (duration 11ms)(CFD)
	SHOCK	20 g peak acceleration( duration 11ms)( built -in HDD module)
EMC	CE /FCC A class ,UL
ORDER INFORMATION
HTS-1320/S001
Embedded PC ,Intel Atom D525 1.8GHz,2LAN,/10 COM(6RS232/422/485Option ) 2xPCI/2xUSB/Audio/16bit GPIO/PS2
HTS-1320/S002
Embedded PC,Intel Atom D525 1.8GHz,2LAN /8 COM(2RS232/422/485 Option ) 2xPCI/2xUSB/Audio /Parallel port /PS2
HTS-1320/T001
Embedded PC,Intel Atom D525 1.8GHz,2LAN ,/10 COM(6RS232/422/485 Option) 2xPCI/6xUSB/Audio /16bit GPIO/PS2
PA-60DC12
AC/DC power adapter,DC12V/5A 60W
