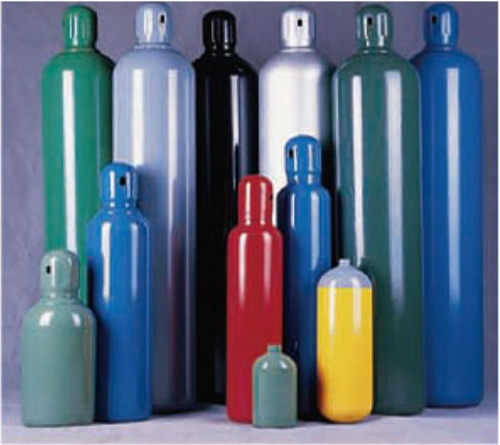

Empty Seamless Gas Cylinder Size From 2L-50L

Name: Empty Seamless Gas Cylinder Size From 2L-50L
Brand: China-Manufacturer-Directory.com
SKU: 748084535
Availability: InStock
Rating: 4.6 (32 reviews)

Supplier:	Linyi Tianhai Import & Export Co., Ltd
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	series
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Gas Cylinder Material:	37mn
Volume:	2L-50L
Color:	White,Black,Green,etc
Nominal Diameter:	140mm-232mm
Standard:	Standard
Power:	Hydraulic
Structure:	General Cylinder
Pressure Direction:	Single-acting Cylinder
Material:	Steel
Usage:	Filling Permanent Gases

Product Description

1. Our main products are: Oxygen cylinder, nitrogen cylinder, carbon dioxide gas cylinder, argon gas cylinders etc.
2. With the world class equipment and advanced technical process, lytianhai can produce large, medium, small sizes high pressure seamless cylinders

All kinds of gas cylinders Specification
Execution standard	ISO9809-3	GB5099-94	GB5099-94	GB5099-94	GB5099-94
The bottle material	37Mn	37Mn	37Mn	37Mn	37Mn
Nominal diameter(mm)	232mm	232mm	219mm	152mm	140mm
Nominal capacity (L)	40\45\50	40\45\50	20\25\32\36\ 38\40\45\50	10\12\13\ 14\15	2.5\3\4\5\ 6\7\8\9
Design wall thickness (mm)	5.4	6	5.7	4	3.7
The bottle shoulder height (mm)	180	180	180	110	100
The cylindrical bottle (mm)	45	45	45	45	45
Collar diameter (mm)	42	42	42	42	42
Bottle of thread	PZ27.8	PZ27.8	PZ27.8	PZ27.8	PZ27.8
The location (mm)	≥10.8	≥12.0	≥11.4	≥8.0	≥7.4
Bottle transition (mm)		9.8	10.5	6.5	6
Bottom center thickness (mm)	≥10.8	≥15.3	≥14.5	≥9.5	≥9.0
Deep bottom center (mm)	30 +2	32 +5	30 +5	21 +3	20 +3
Heat treatment	normalizing850±10ºC	normalizing850±10ºC	normalizing850±10	normalizing850±10ºC	normalizing850±10ºC
Holding time (min)	40	40	30	20	20
Hydrostatic test (MPa)	22.5\18.8	22.5\18.8	22.5\18.8	22.5	22.5
Air test (MPa)	15.0\12.5	15.0\12.5	15.0\12.5	15	15
Water bursting pressure (MPa)	38.6	38.88	39.01	38.9	39.1
Filling medium	Air, oxygen, argon, hydrogen, helium, nitrogen, carbon dioxide and sulfur hexafluoride			Air, oxygen, argon, hydrogen, helium , nitrogen, carbon dioxide

1. Our main products are: Oxygen cylinder, nitrogen cylinder, carbon dioxide gas cylinder, argon gas cylinders etc.

2.In addition, we have also provide supporting valves and we could do various specifications of valves according to client's requirement

3. With the world class equipment and advanced technical process, lytianhai can produce large, medium, small sizes high pressure seamless cylinders
