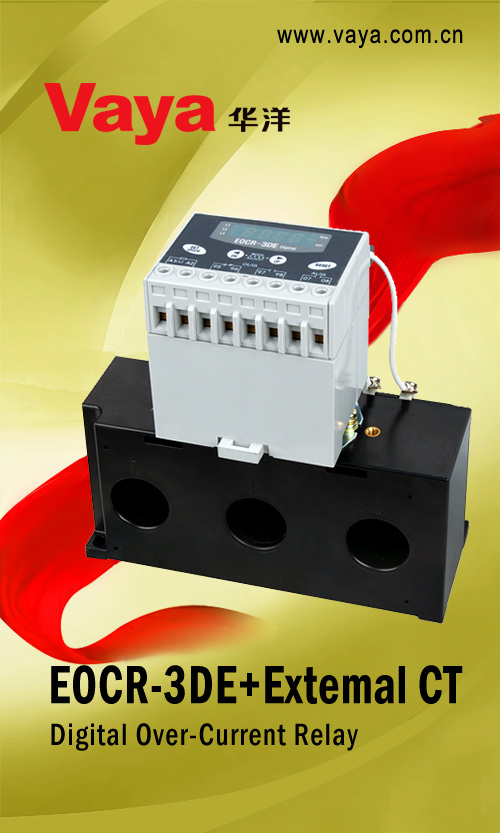

Eocr-3de Digital Over-Current Relay

Name: Eocr-3de Digital Over-Current Relay
Brand: china-manufacturer-directory.com
SKU: 677593606
Availability: InStock
Rating: 4.3 (124 reviews)

Supplier:	Zhejiang Huayang Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	EOCR-3DE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

MCU Based
3 Integral Current Transformers
Over-current, Under-Current, Phase Loss, Phase
Unbalance, Phase Reversal, Locked Rotor Protection
Digital Ammeter & Trip cause indication
Selectable Trip Time-Current Characteristics
Independently Adjustable Starting Trip Delay and Operating
Trip Time
+ Load Alerting Function = EOCR-3DE
+ Ground Fault Protection =EOCR-3EZ

Protection
EOCR-3DE		EOCR-3EZ
Protective Item	Trip Time	Protective Item	Trip Time
Over-current	O-TIME	Over-current	O-TIME
under-current	0.5~30sec	Under-current	0.5~30sec
Phase Loss	3 sec	Phase Loss	3 sec
Phase Unbalance	8 sec	Phase Unbalance	8 sec
Phase Reversal	0.1~0.3 sec	Phase Reversal	0.1~0.3 sec
Locked Rotor	D-TIME	Locked Rotor	D-TIME
-	-	Ground Fault	0.05~10 sec

Specification
Model		EOCR-3DE	EOCR-3EZ
Over Current Setting Range		Refer Table #1
Ground Fault Current Setting		-	0.02 ~ 3A
Alert Setting		50 ~ 100% / OFF	-
Start Delay Time Setting (D-TIME)		1 ~ 200 Sec
Trip Delay Time Setting (O-TIME)	INV	1 ~ 30
	DEF	0.2 ~ 30 Sec
Control Voltage		24VAC/DC, 110VAC± 15%, 220VAC± 15%
Output Relay	OL	2-SPST	1-SPST
	AL/GR	AL Relay	Ground Fault Relay
	Rating	3A/250VAC Resistive
Time Characteristic	In/” tc” mode	Inverse (See Curve-1)
	dE/” tc” mode	Definite (See Curve-2)
Troubleshooting / Trip Indication		LED Display (SSD+LED)
Current Sensing		3-CT
Mounting		35mm Din-rail

Table #1. Current Range
Current Setting Range (Amps)	Number of Conductors thru CT windows	Extermal CT Ratio	Setting of CT Ratio	Remark
0.5 ~ 60A	1	-	OFF	Wide Range
0.25 ~ 3.0A	2	-	2T
0.1 ~ 1.2A	5	-	5T
1 ~ 12A	1	10: 5	10
1.5 ~ 18A	1	15: 5	15
2.0 ~ 24A	1	20: 5	20
2.5 ~ 30A	1	25: 5	25
3.0 ~ 36A	1	30: 5	30
4.0 ~ 48A	1	40: 5	40
5 ~ 60A	1	50: 5	50
6 ~ 72A	1	60: 5	60
7.5 ~ 90A	1	75: 5	75
10 ~ 120A	1	100: 5	100
12 ~ 144A	1	120: 5	120
15 ~ 180A	1	150: 5	150
20 ~ 240A	1	200: 5	200
25 ~ 300A	1	250: 5	250
30 ~ 360A	1	300: 5	300
40 ~ 480A	1	400: 5	400
50 ~ 600A	1	500: 5	500
60 ~ 720A	1	600: 5	600
75 ~ 900A	1	750: 5	750
80 ~ 960A	1	800: 5	800
