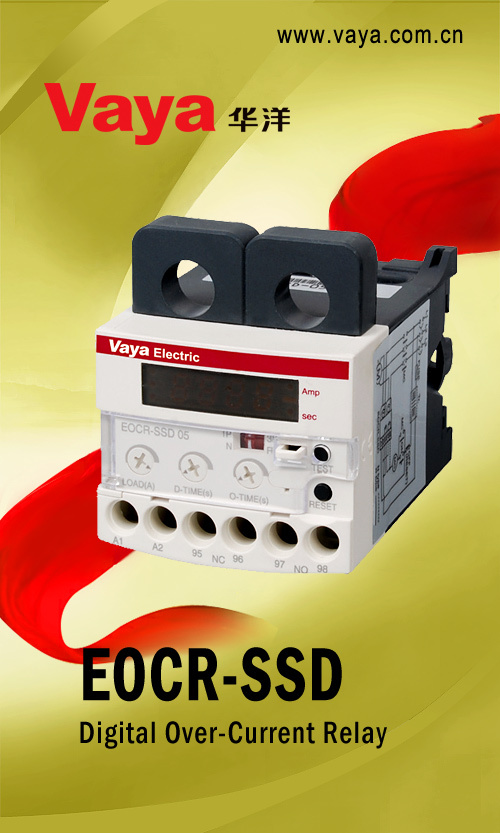

EOCR-SSD Digital Over-Current Relay

Name: EOCR-SSD Digital Over-Current Relay
Brand: china-manufacturer-directory.com
SKU: 677592356
Availability: InStock
Rating: 4.9 (128 reviews)

Supplier:	Zhejiang Huayang Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	EOCR-SSD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

MCU(Micro Controller Unit) based / 2-CT Type
Real Time Processing / Higher Precision
Current Setting Range - 05Type: 0.5 ~ 6A / 30Type: 3 ~ 30A / 60Type: 10 ~ 60A
Digital display: Trip cause / easy troubleshooting
Reset: Manual (instantaneous) / Electrical (remote)
Load selection by DIP switch: Single phase(1P) / Three phase(3P)
Fail safe(N) / Non-fail safe(R)

Specification
Over-current Setting	Current	05	0.5 ~ 6A
		30	3 ~ 30A
		60	10 ~ 60A
	Starting delay time	D-Time	1 ~ 30sec
	Trip time	O-Time	0.5, 1 ~ 10sec
Reset			Manual / Electrical
Operating t-c characteristic		Over-current	Definite
Tolerance			I< 1A : ± 0.05A, I 1A : ± 5%
Tolerance	Time		t 3S : ± 0.2s, t> 3s : ± 5%
Environment	Temperature	Operation	-20 ~60 degree centigrade
	Temperature	Store	-30~80 degree centigrade
	Humidity		30~85% RH non-condensing
Control Power			110 : 110VAC± 15%, 50/60Hz
			220 : 220VAC± 15%, 50/60Hz
			440 : 440VAC± 15%, 50/60Hz
			24 : 240VAC/DC
Output relay		2-SPST	3A / 250VAC , Resistive
Insulation	Between casing and circuit		Over 10MΩ , DC500V
Dielectric Strength	Between casing and circuit		2000VAC 60Hz, 1min
	Between open contacts		1000VAC 60Hz, 1min
	Between circuit		2000VAC 60Hz, 1min
Installation			35mm Din Rail or Panel Mounting
