Product Specifications
| Prod Model: |
VHB-200A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Semi-automatic |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Beading Machine |
Product Description

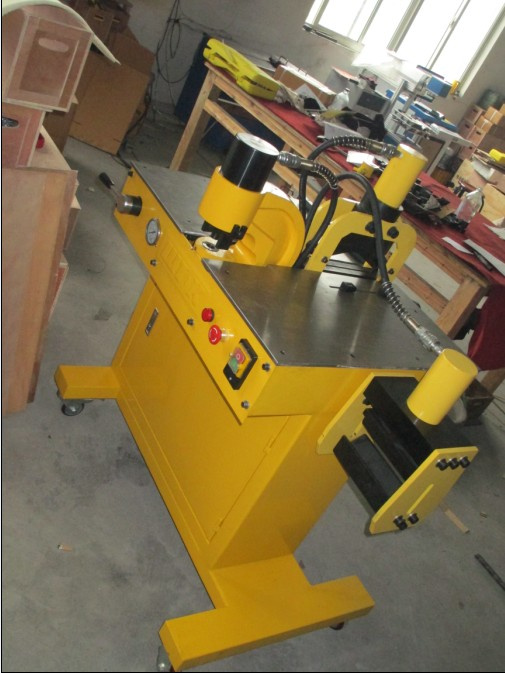

VHB-200A Hydraulic Busbar Processor Machine
Functions
Used for cutting, punching, bending
Input valtage/control valtage
Single phase 50Hz, 220V
Rating working oil pressure
700kgf/cm² (over pressure safety valve set)
Outlet force of busbar cutter
20Ton
Busbar cutting capability
Copper/aluminum bar 200mm*12mm
Outlet force of puncher
35ton
Distance between hole center and busbar edge
110mm
Punching capability-copper bar/aluminum bar
Φ6mm-Φ20.5mm, Max thickness: 12mm
Standard assembled punching dies
Φ10.5mm, Φ13.8mm, Φ17.5mm, Φ20.5mm
Outlet force of bender
20Ton
Horizontal bending capability
200mm*12mm
Weight
220kg
Dimension of moveable workbench
L800mm*W760mm*H1100mm
VHB-200A consist of 3 machines:
Busbar Cutting Tool CWC-200V
Busbar Bending Tool CB-200A
Busbar Punching Tool CH-70
Taizhou huangyan mejatools factory, a tool manufcturer established in 1996, has become the market leader for hydraulic crimping tool, punching tools, hydraulic pumps, busbar machine and etc. Under more than 20 years hard work, we have created the brand "MEJA". For us it stands to reason that all our products comply with the highest quality requirements and represent the latest innovations.
We are ISO 9001: 2000 certified and gain CE certification. Modern Computer Aided Design and production facilities provide great potential for development and design performance. Continuous innovative development of our product range guarantees top efficiency. We strive daily for customer satisfaction. Experienced staff, modern and fast means of communication and proved logistics are our basis. We look very much forward to a further trustful and successful cooperation.
