Product Specifications
| Prod Model: |
VHB-401 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Semi-automatic |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Beading Machine |
Product Description

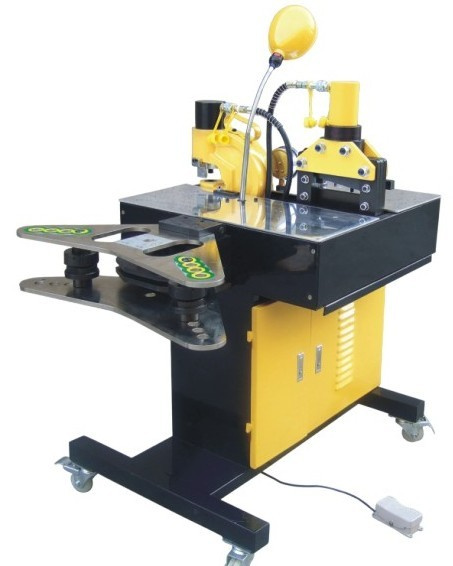

Hydraulic busbar processing machine VHB-401
Functions
Used for cutting, punching, bending
(level and vertical bending)
Input voltage
Single phase 50Hz, 220V
Rating work oil pressure
700kgf/cm² (over pressure safety valve set)
Outlet force of busbar cutter
15Ton
Busbar cutting capability
Copper/aluminum bar 150mm*12mm
Outlet force of punch
35 Ton
Distance between hole center and busbar edge
110mm
Punching capability-copper bar/aluminum bar
Φ6mm-Φ20.5mm, Max thickness: 12mm
Standard assembled punching dies
Φ7, 9, 10.5mm, Φ13.8mm, Φ17.5mm, Φ20.5mm
Output force of bender
25Ton
Horizontal bending capability
120mm*12.5mm
Weight
260kg
Dimension of moveable workbench
L850mm*W750mm*H1100mm
Taizhou huangyan mejatools factory, a tool manufcturer established in 1996, has become the market leader for hydraulic crimping tool, punching tools, hydraulic pumps, busbar machine and etc. Under more than 20 years hard work, we have created the brand "MEJA". For us it stands to reason that all our products comply with the highest quality requirements and represent the latest innovations.
We are ISO 9001: 2000 certified and gain CE certification. Modern Computer Aided Design and production facilities provide great potential for development and design performance. Continuous innovative development of our product range guarantees top efficiency. We strive daily for customer satisfaction. Experienced staff, modern and fast means of communication and proved logistics are our basis. We look very much forward to a further trustful and successful cooperation.
