Product Specifications
| Prod Model: |
VHB-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Semi-automatic |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Beading Machine |
Product Description

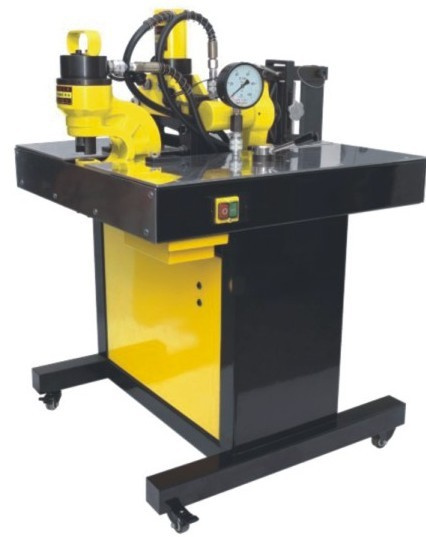

VHB-150 Hydraulic busbar processing machine
Functions
Used for cutting, punching, bending
Input valtage/control valtage
Single phase 50Hz, 220V
Rating working oil pressure
700kgf/cm² (over pressure safety valve set)
Outlet force of busbar cutter
150Ton
Busbar cutting capability
Copper/aluminum bar 150mm*12mm
Outlet force of puncher
31ton
Distance between hole center and busbar edge
95mm
Punching capability-copper bar/aluminum bar
Φ6mm-Φ20.5mm, Max thickness: 10mm
Standard assembled punching dies
Φ10.5mm, Φ13.8mm, Φ17.5mm, Φ20.5mm
Outlet force of bender
16Ton
Horizontal bending capability
150mm*12mm
Weight
190kg
Dimension of moveable workbench
L760mm*W760mm*H1000mm
Taizhou huangyan mejatools factory, a tool manufcturer established in 1996, has become the market leader for hydraulic crimping tool, punching tools, hydraulic pumps, busbar machine and etc. Under more than 20 years hard work, we have created the brand "MEJA". For us it stands to reason that all our products comply with the highest quality requirements and represent the latest innovations.
We are ISO 9001: 2000 certified and gain CE certification. Modern Computer Aided Design and production facilities provide great potential for development and design performance. Continuous innovative development of our product range guarantees top efficiency. We strive daily for customer satisfaction. Experienced staff, modern and fast means of communication and proved logistics are our basis. We look very much forward to a further trustful and successful cooperation.
