Shanghai YingXin World Machinery Co., Ltd. >> Excavator 215 with Original Isuzu Engine

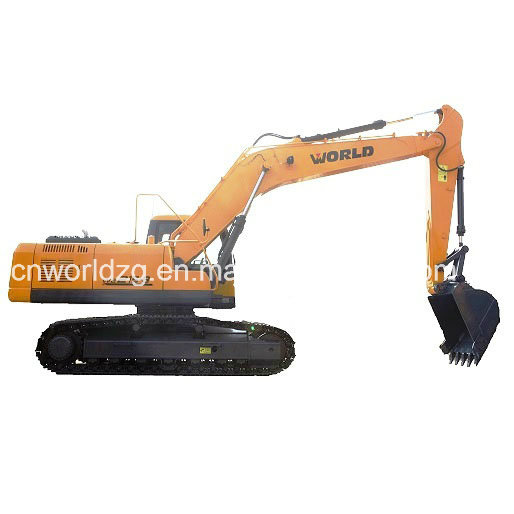

Excavator 215 with Original Isuzu Engine

Name: Excavator 215 with Original Isuzu Engine
Brand: China-Manufacturer-Directory.com
SKU: 737162875
Availability: InStock
Rating: 4.6 (145 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 80000-95000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W2215
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Excavator 215:	Hydraulic Excavator
Bucket Size:	0.9m3
Operation Weight:	21400kg
Engine Brand:	Isuzu
Engine Power:	113kw
Hydraulic Pump:	Kawasaki
Main Valve:	Parker
Type:	Crawler Excavator
Size:	Medium-Sized
Condition:	New
Certification:	ISO9001: 2000

Product Description

excavator 215

Descriptions:

W2215 excavator uses the famous original ISUZU engine and Kawasaki hydraulic pump. The bucket capacity is 0.9 cbm and the operation weight is 21.4ton. Parker main valve, Doosan travel motor and Sungbo swing motor. Engine power is 113.2kw and the track width is 600mm. Perfect matching of the engine power and the hydraulic pump power ensures smoother operation and higher efficiency.

Specifications:

Engine System
Brand & Origin	ISUZU
Model	AA-6BG1TRP-03
Rated Power	113.2kw/2100rpm
Max. Torque	550N.m/1600rpm
Idling Speed	950rpm
Engine Displacement	6.494L
Cylinder No.-Bore/Stroke	6105125
Engine Oil Capacity	21.5L
Fuel Tank Capacity	415L
Fuel Consumption Rate	237gr/kw.g

Working Specifications
Operating weight	21400kg
Bucket capacity	0.9CBM
Max. breakout force
(1)Bucket digging force	120KN
(2)Arm digging force	94.5kn
Max.digging height	10095mm
Max.dumping clearance	7196mm
Max.digging depth	6486mm
Max.vertical wall digging depth	5903mm
Max.digging reach	9813mm
Min.front swing radius	2853mm
Max.pulling force	220KN
Max.travel speed(double modes)	5.2km/h
Max.grade ability	70%

Overall dimensions
Length(with bucket on ground)	9400mm
Width(600mm crawler shoes )	2800mm
Bucket width	1150mm
Ground length (in transportation)	9400mm
Height(To the top of the boom)	2937mm
Height(To the top of the cab)	3010mm
Counter weight ground clearance	1094mm
Track gauge	2200mm
Tail swing radius	2708mm
Min. ground clearance	460mm
Rotating platform width	2712mm
Counter weight height	2123mm
Crawler teeth thickness	26mm
Reach from swing center to tail	2708mm
Crawler ground length	3370mm
Standard arm length	2925mm
overall length of crawler	4155mm

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
