Product Specifications
| Prod Model: |
IVC-3150-S001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
5kg |
| Size: |
228.7*263*49mm |
| Chip: |
Intel Qm87 |
| CPU: |
Intel 1047ue |
| LAN: |
4*10/100/1000base-Tx Rj-45 Ports |
| Memory: |
Ddriii SODIMM, up to 8GB |
| Display: |
VGA/DVI-D/HDMI |
| COM&USB: |
4COM/4USB |
| Option: |
WiFi / 3G |
| OS: |
Windows 7, Windows XP, Windows XP Embedded, Linux |
| Type: |
IPC |
| CPU Card Size: |
Full-size Card |
| CPU Type: |
Core Duo |
| Hard Disk Rack Type: |
Board Type |
| Installation: |
Horizontal |
| Application: |
Industrial |
| Accessories: |
CPU Card |
| Case Type: |
Box Computer |
Product Description
Features:
Aluminum alloy chassis, fan less design
Core™I7/I5/I3 CPU
Intel® QM87
2xDDR3/DDR3L 1333/1600 SODIMM, Max16GB
Onboard GPS/WIFI/3 G, single SIM card.
DP/DVI-D display
4xPOE LAN/8bitDIO/4xCOM
4xUSB(2xUSB2.0/2xUSB3.0)
Shock &vibration resistance
Widely voltage input, Ignition for Various Vehicle
SYSTEM | CPU | Intel® 4th Generation Core TM Processor |
| MEMORY | DDR3/DDR3L 1333/1600MHZ, up to 16GB |
| EXPANSION | 3*Mini Pcle (1*Full-size with SIM holder) |
| DISPLAY | DP, DVI-D |
| DIO | 8 bit DIO |
| Ethernet | 4*M12 Ports for GbE POE(15.4W per port) Intel® 1210 |
| SSD | 1*mSATA |
| HDD | 2*2.5" SATA HDD Bays |
| SERIAL PORTS | RS232x2,RS485x2(Auto Direction Control) |
| USB | USB 2.0 *2, USB3.0*2 |
| CONTROL | power on/off × 1 |
| LED LIGHT | power light×1,HDD light×1 |
| WATCH DOG TIMER | timer system reset/interrupt |
| POWER | DC IN-PUT
VOLTAGE IN-PUT | built-in DC-DC convertor |
| 9-36VDC |
AC IN-PUT
VOLTAGE IN-PUT | external adapter(for option) |
| 100VAC~240VAC@50~60Hz |
| OS | Windows 7,Windows 8,Linux(embedded) |
| OPTION | WIFI / 4G/GPS/CAN |
| MECHANICAL | STRUCTURE | aluminum case,Wrinkle shape for cooling, ultra-slim |
| COLOUR | Silver |
| INSTALLATION | in-wall, desktop |
| DIMENSIONS | 228.7*163*49mm |
| WEIGHT | 4.85Kg |
| ENVIROMNTAL | OPERATION TEMPERATURE |
20~70ºC-SSD Without Airflow
-10~50ºC-HDD Without Airflow |
STORAGE TEMPERATURE | -40°C~ 80°C |
| STORAGE HUMIDITY | 5~90%@40°C, non-condensing |
| VIBRATION | 5 grms / 5 ~ 500Hz / in work status(SSD) |
| 1 grms / 5 ~ 500Hz /in work status HDD |
| SHOCK | 50 g peak acceleration (duration 11ms)(CFD) |
| 20 g peak acceleration( duration 11ms)( built -in HDD module) |
| EMC | CE /FCC A class ,UL |
| ORDER INFORMATION |
| IVC-3150 |
Aluminum alloy chassis,Support 4th Generation Intel Core™ i7/i5/i3
and Mobile Processor,4*POE LAN,GPS/3G/WIFI,DC9~36V widely voltage input |
| IVC-3150 |
| Intel® 4th Generation Core TM Processor |
| Intel QM87 |
| 4*M12 Ports for GbE POE(15.4W per port) Intel® 1210 |
| WBESITE |
| WWW.JHCTECH.COM.CN/EN |

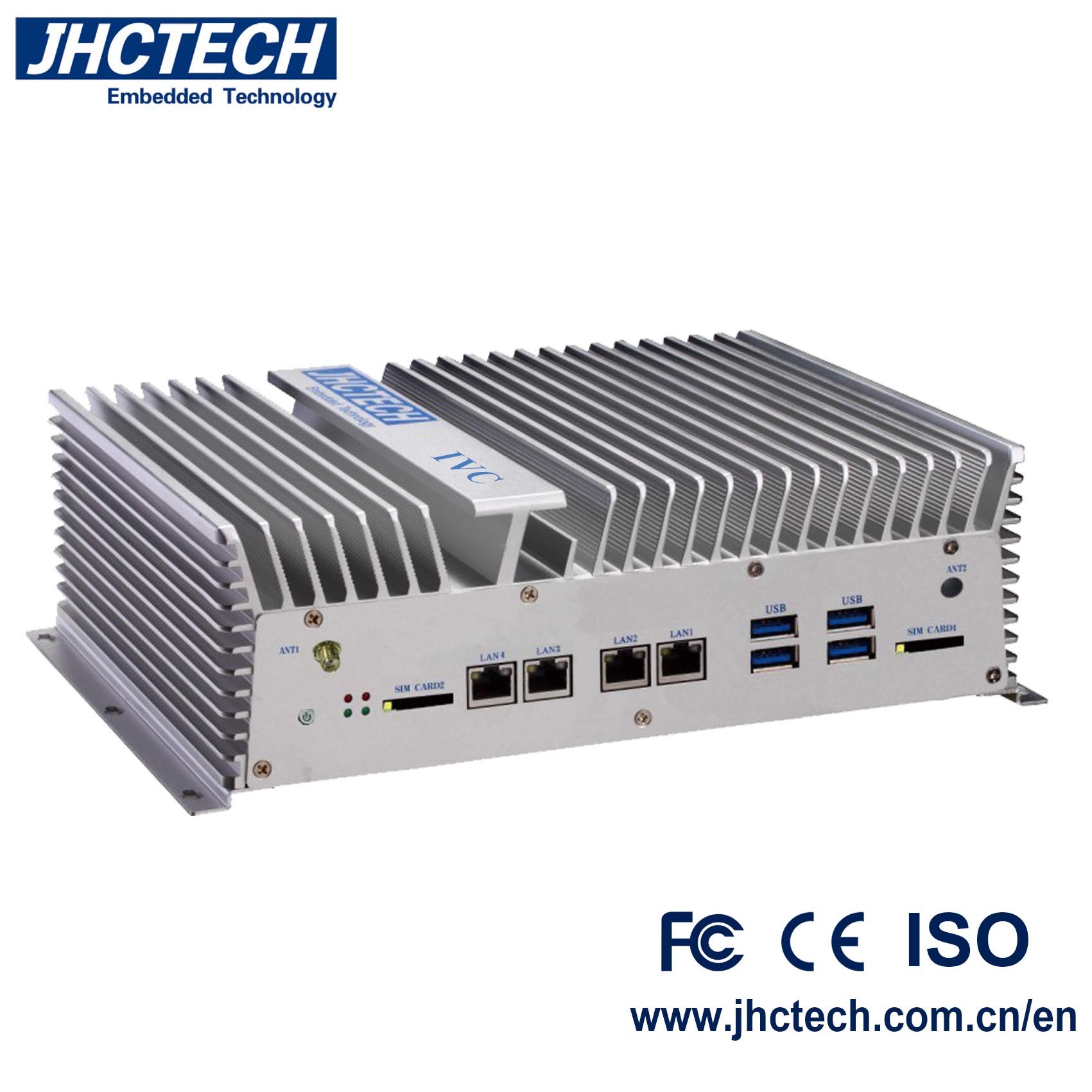

JHCTECH IVC-3150 is a Industrial Computer with 3G,WIFI, GPS, 4th On board i7 CPU and dedicated for In-Vehicle systems, Fishing Vessel, Wireless Communication and some other solutions.
