Shenzhen JHC Technology Development Co., Ltd. >> Fanless Computer with Onboard 4GB Memory

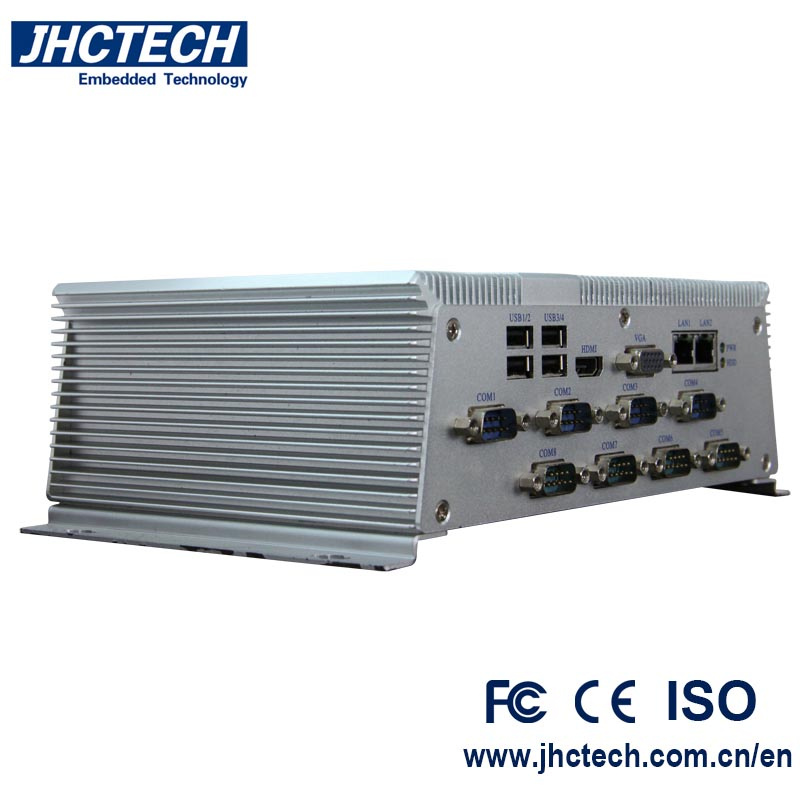

Fanless Computer with Onboard 4GB Memory

Name: Fanless Computer with Onboard 4GB Memory
Brand: China-Manufacturer-Directory.com
SKU: 751542015
Availability: InStock
Rating: 4.8 (119 reviews)

Supplier:	Shenzhen JHC Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	DMC-3120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Products Line:	Industrial Computer
CPU:	Intel Atom D2550 Processor 1.86GHz Dual Core Proc
Memory:	Ddriiisodimm, up to 4 GB
Expansion Card:	1*Mini Card
Display:	VGA/HDMI
LAN:	2*Realtek Rtl8111dl 10/100/1000base-Tx Rj-45
COM&USB:	10COM&5USB
Option:	WiFi / 3G
Dimension:	149mm X 212mm X 70.5mm
OS:	Windows 7, Windows XP, Windows XP Embedded, Linux
CPU Card Size:	Half-size Card
Installation:	Wall-Mounted
Application:	Industrial
CPU Type:	Atom
Case Type:	Box Computer
Power Supply Type:	DC-DC

Product Description

Features:
Aluminum alloy chassis, fan less designe
Intel Atom D2550 1.86GHz Intel® ICH8M
2xDDRIII 800 SODIMM, Max. 4GB
1x Mini Card ,support mSATA , VGA /HDMI display
8 channel DIO/10 COM /2x1000Mbps Ethernet
5 USB/audio/CF card Shock & Vibration resistance

SYSTEM	CPU	Intel® Atom D2550 Processor 1.86GHz dual core processor
	MEMORY	DDRIIISODIMM,up to 4 GB
	EXPANSION	MINI CARDx1,support mSATA
	DISPLAY	VGA/HDMI
	M/K	USB
	Ethernet	Realtek RTL8111DL 10/100/1000Base-TX RJ-45 ×2
	SSD	CFAST,mSATA
	HDD	2.5" HDD Bay
	SERIAL PORTS	RS-232/422/485×8,RS-232×2
	USB	USB 2.0 × 5
	CONTROL	power on/off × 1
	LED LIGHT	power light×1,HDD light×1,alarm light x1
	DIO	8 bit DIO
	WATCH DOG TIMER	timer system reset/interrupt
POWER	DC IN-PUT VOLTAGE IN-PUT	built-in DC-DC convertor
	DC IN-PUT VOLTAGE IN-PUT	DC12V
	AC IN-PUT VOLTAGE IN-PUT	external adapter(for option)
	AC IN-PUT VOLTAGE IN-PUT	100VAC~240VAC@50~60Hz
	OS	Windows 7,Windows XP,Windows XP Embedded,Linux
	OPTION	WIFI / 3G
MECHANICAL	STRUCTURE	aluminum case,Wrinkle shape for cooling, ultra-slim
	COLOUR	gray
	INSTALLATION	in-wall, desktop
	DIMENSIONS	149mm x 212mm x 70.5mm
	WEIGHT	2.2Kg
ENVIROMNTAL	OPERATION TEMPERATURE	20~70ºC-SSD Without Airflow -10~50ºC-HDD Without Airflow
	STORAGE TEMPERATURE	-20°C~ 70°C (-4°F ~ 158°F)
	STORAGE HUMIDITY	5~90%@40°C, non-condensing
	VIBRATION	5 grms / 5 ~ 500Hz / in work status(CFD)
	VIBRATION	1 grms / 5 ~ 500Hz /in work status ( built -in HDD module)
	SHOCK	50 g peak acceleration (duration 11ms)(CFD)
	SHOCK	20 g peak acceleration( duration 11ms)( built -in HDD module)
EMC	CE /FCC A class ,UL
ORDER INFORMATION
DMC-3120/S001
Fan less embedded box PC,Atom D2550,2x1000Mbps Ethernet 10 COM/5 USB/audio/CF Card/8 channel DIO
PA-60DC12
AC/DC power adapter,DC12V/5A 60W
