Product Specifications
| Prod Model: |
TDS-100F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chinese Brand: |
Hipeak |
| MOQ: |
1PC |
| Delivery Date: |
in Stock |
| Sensor: |
Clamp-on/External |
| Type: |
Ultrasonic Flow Meter |
| Accuracy: |
?à0.6-1% |
| Measuring Media: |
Liquid |
| Principle: |
Ultrasonic Wave |
| Measuring Principle: |
Biomimetic |
| Size: |
|
Product Description

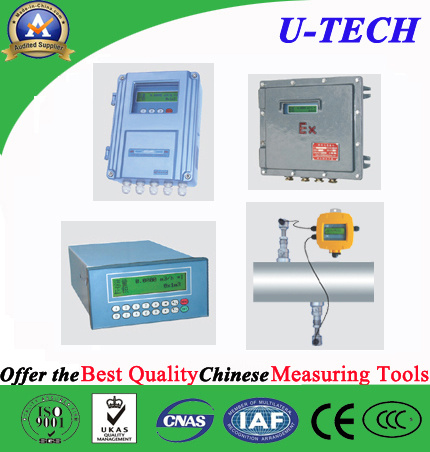

Wall mounted fixed type ultrasonic flow meter
TDS-100F series meters are applicable to measure liquid flow in industry application. Mainframe
Include wall-mounted standard stype, wall mounted ex-proof stype, panel stype and native place
Displaying(F4). Sensors include clamp on type, insertion type, inline type.
Technology features:
1: Operating power: AC 85_264V or isolation DC 8-36VDC
2: Repeatability: Better than 0.2%. Accuracy: Better than 1%
3: Signal output: One channel standard isolation RS485 output
One channel isolation 4-20mA or 0-20mA active output.
One channel OCT output(programmed between the pulse width(6-1000ms), default
Before leaving factory (200ms))
One channel isolation relay output, with positive, negative, net accumulation pulses
And different alarm signals.
4: Signal input: Two channel three wire system PT100 platinum resistor input loop, to make heat
Meter has the function of displaying heat quantity.
Three channel 4-20mA input optional, accuracy: 0.1%, has the ability to input the
Signals of pressure, liquid level, temperature and so on.
5: : Display: 2*20 backlit LCD(Chinese and English optional)
6: Operating: 4*4 tactile keypad or magnetic 4 keypads operating(F4 mainframe)
7: Other functions: Automatic memory the positive, negative, net totaliser flow rate and heat quantity
Of the last 512 days, 128 months, 10years
Automatic memory the time of power on/off and flow rate of the last 30 times,
Realize to replenish by hand or automatically, read the datas through Modbus
Communication protocol.
