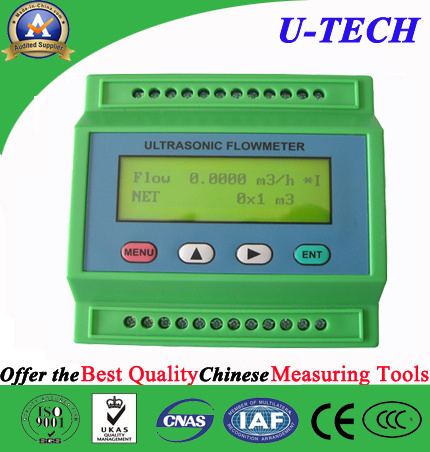

Product Specifications
| Prod Model: |
TDS-100M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chinese Brand: |
Hipeak |
| MOQ: |
1PC |
| Delivery Date: |
in Stock |
| Sensor: |
Clamp-on/External |
| Type: |
Ultrasonic Flow Meter |
| Accuracy: |
?à0.6-1% |
| Measuring Media: |
Liquid |
| Principle: |
Ultrasonic Wave |
| Measuring Principle: |
Biomimetic |
| Size: |
|
Product Description
Technology features:
1: Operating power: Isolation 8-36VDC
2: Current: 50mA(under the condition of connection without keyboard display and sound of buzzer)
3: Signal output: One channel standard isolation RS485 output
One channel isolation 4-20mA or 0-20mA passive output.
Two channel OCT output(programmed between the pulse
Width(6-1000ms), default before leaving factory (200ms))
4: Signal input: Two channel three wire system PT100 platinum resistor input loop, to make heat
Meter has the function of displaying heat quantity.
Three channel 4-20mA input optional, accuracy: 0.1%, has the ability to input the
Signals of pressure, liquid level, temperature and so on.
5: Display: 2*10 backlit LCD, displaying instant flow rate, velocity, positive, negative, net totaliser
Flow rate.
6: Operating: 4 keypad tactile keyboard operating
7: Other functions: Automatic memory the positive, negative, net totaliser or flow rate and heat
Quantity of the last 512 days, 128 months, 10years
Automatic memory the time of power on/off and flow rate of the last 30 times,
Realize to replenish by hand or automatically, read the datas through Modbus
Communication protocol.
8: Protection level: IP57
9: Transducer: Clamp-on type, insertion type, in-line type.
Optional accessory:
1: Clamp-on transducer(standard S1 type, standard M1 type, high temperature S1H, high temperature
M1H)
2: Insertion transducer(standard insertion B, cement insertion B)
3: In-line type transducer(hygienic type, n type, standard type)
4: Remote second times operation meter(wall-mounted type, panel-mounted type)
5: PT100 there wire platinum resistor(used for heat meter)
6: Strap(applied with installation of transducers on cast iron, GRP, PVC, etc. That can not be welded directly.
7: Special shielded twisted pair cable
8: Ultrasonic thickness gauge(measure the thickness of pipe, reduce error, increase accuracy)
