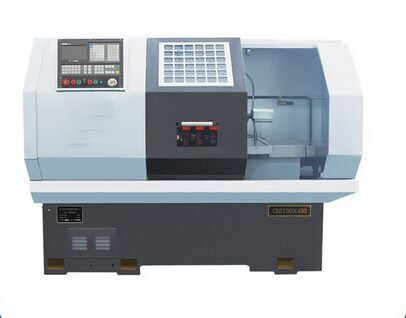

Product Specifications
| Prod Model: |
FH400/CK6150-450 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chuck Size: |
12" |
| Max.Swing Dia.Over Bed: |
500mm |
| Max .Cutting Dia.Over Slide: |
420mm |
| Max .Cutting Dia.: |
320mm |
| Max .Cutting Length: |
450mm |
| Spindle Bore: |
81mm |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Mid-Range CNC Machine Tools |
Product Description
Quick Details
Condition: New
Type: Horizontal
CNC or Not: CNC
Automatic Grade: Automatic
Max. Swing Diameter: 500mm
Voltage: Adjustable
Power(W): 11.0 kW main motor
Dimension(L*W*H): 2300X1300X1700mm
Weight: 2400Kg
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
1.Mechatronics design ,beautiful exterior and mature product mix. It is easy to be operated, one worker can operate multiple lathes at the same time.
2.The lathe bed is made of heavy casting , it has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3.X, Z axes contains high degree of accurate pin-roller lead-screw which is in-between structure, making better dynamics and higher precision.
4.High-precision angular contact ball bearings are used as bearing of the lathe. This gives an optimized combination of high-precision, high bearing capacity and good running speed; moreover, it is more durable
Technical Parameters |
|
| Chuck size | φ12" |
| Max. swing dia. over bed | φ500mm |
| Max. swing dia. over slide | φ420mm |
| Max. cutting dia. | φ320mm |
| Max. cutting length | 450mm |
| Spindle bore | φ81mm |
| Bar dia. capacity | φ70mm |
| Max. spindle speed | 1600rpm |
| Main motor power | 11.0Kw |
| X/Z axis travel | 320/450mm |
| Type of toolpost | 4-station toolpost |
| OD. tool shank size | 25x25mm |
| Bed width | 400mm |
| Guideway | Hard Guideway |
| Power capacity | 11.0KVA |
| Overall dimension(LxWxH) | 2300x1300x1700mm |
| Weight | 2400Kg |
