Yueqing Jianghong Electrical Appliance Factory >> Flush Power Distribution Box Metal Box with IEC Standard

Flush Power Distribution Box Metal Box with IEC Standard

Name: Flush Power Distribution Box Metal Box with IEC Standard
Brand: china-manufacturer-directory.com
SKU: 730080375
Availability: InStock
Rating: 4.5 (134 reviews)

Supplier:	Yueqing Jianghong Electrical Appliance Factory
Price:	US $ 1.38-5.12/Piece
Min Order:	2000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

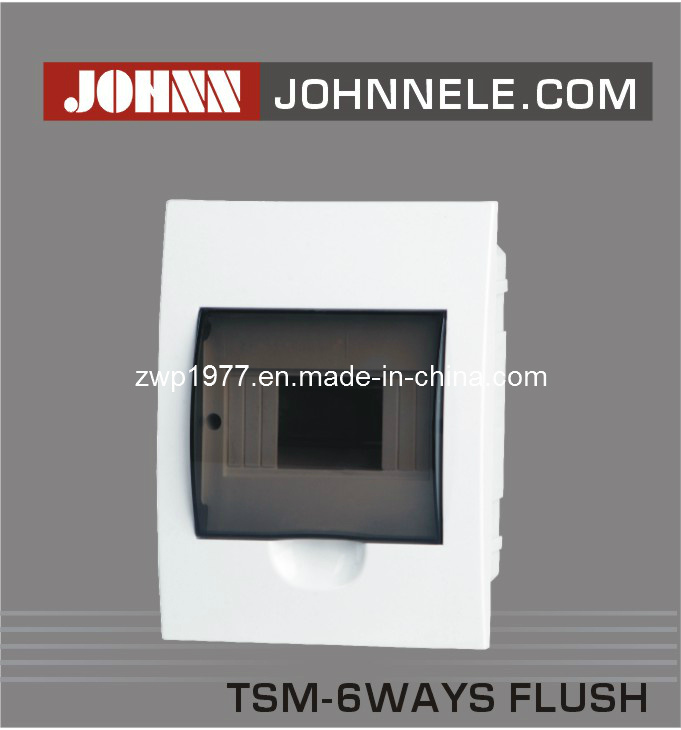

Prod Model:	TSM - 6 WAYS FLUSH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo or Shanghai
Product Type:	Public
Cover:	Transparent
Base:	Iron or Plastic
Type:	Power

Product Description

Rated Current: 63A

Short-Circuit making Current: 10KA

Shell Protection Grade: IP40

Shell Material: ABS polymeric Carbon

Color: White

Face Covering: Transparent

Voltage: 220/380V

Mounting: Flush mounting, or Surface mounting

MOQ: ONE CONTAINER. (CAN MIXED ITEMS)

MOQ: LESS USD$3, 000

PAYMENT TERMS: 30% deposit, balance see the copy of B/L by email or negotiation

DELIVERY METHODS:

By sea
By air ( Express DHL, Fadex, TNT)

DELIVERY TIME: Within 25 days after receipt deposit.

Model (Concealed mounted)	L(mm)	W(mm)	H(mm)
TXM-2RAP	90	140	60
TXM-4RAP	112	200	66
TXM-6RAP	150	200	66
TXM-8RAP	184	200	66
TXM-10RAP	222	200	66
TXM-12RAP	256	200	66
TXM-15RAP	310	200	66
TXM-18RAP	365	220	76
TXM-24RAP	257	310	76
TXM-36RAP	293	455	76
TXM-45RAP	473	326	76

Model (Open mounted)	L(mm)	W(mm)	H(mm)
TXM-2MAP	90	140	60
TXM-4MAP	112	210	100
TXM-6MAP	148	210	100
TXM-8MAP	184	210	100
TXM-10MAP	222	210	100
TXM-12MAP	256	210	100
TXM-15MAP	312	210	100
TXM-18MAP	364	222	100
TXM-24MAP	270	325	100
TXM-36MAP	305	473	100
TXM-45MAP	473	326	100

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
