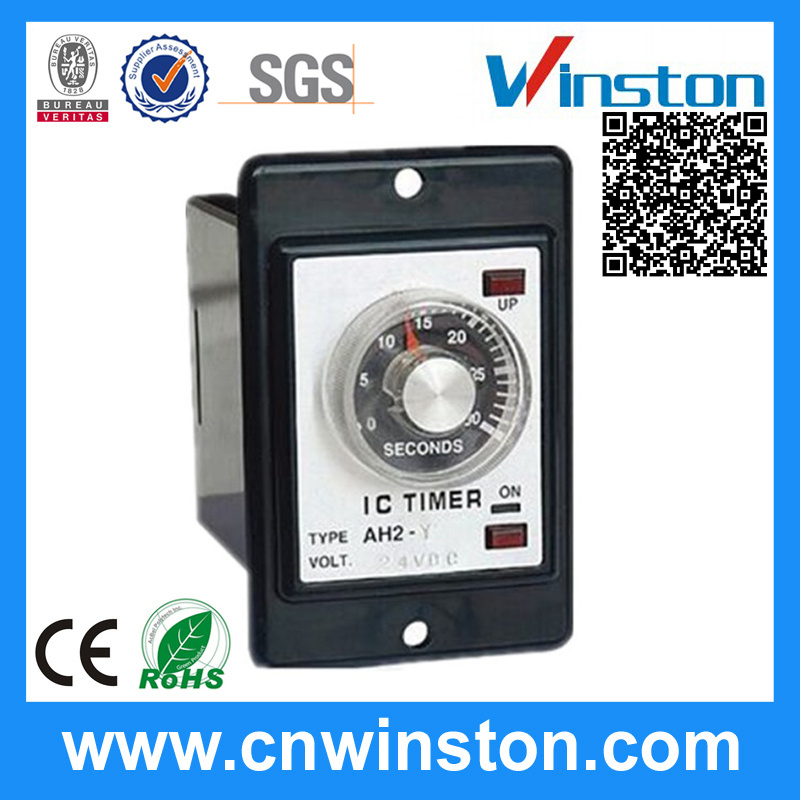

Product Specifications
| Prod Model: |
AH2-Y |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Consumed Power: |
3va |
| Quality: |
2 Year Warranty |
| Dimensions(mm): |
88h *58W * 68d |
| Weight: |
220g |
| OEM/ODM: |
Yes |
| Condition: |
Original New |
| Ambient Huminity: |
48~85%Rh |
| Reset Time: |
0.1 Sec Max |
| Ambient Temperature: |
-10~+55 Degree |
Product Description
Product Description
Surface mounted
Dimensions(mm)61HX49WX70D
Socket type:PF083A(E) PS-08
AC/DC 24-240V
Different timing range on requirement
Technique parameter
Specification Model | AH2-N | AH2-Y |
| Dimension | 61H × 49W × 70D | 88H × 58W × 68D |
| Mounting & Socket | Surface(-N) | PF083A PS-08 | PF083A |
| Flush(-Y) | P2CF-08 | US-08 P3G-08 |
| Full Timing Range | SEC: 1,3,6,12,30,60 |
| MIN: 3,6,12,30,60 |
| HR: 3,6,12,24 |
| Rated Voltage (V) | AC: 12,24,110,220,240 50/60Hz DC: 12,24 |
| Indicator Operating | ON-UP Two Indicator Lamp |
| O/P Contact | Model | AH2-N1/ AH2-Y1 | AH2-N2/ AH2-Y2 | AH2-N/ AH2-Y |
| Time Limit 1C | 5A |
| 5A |
| Time Limit 2C |
| 5A |
|
| Instantaneous 1C |
|
| 5A |
| Life | Mechanical | 5 × 106 Times |
| Electrical | 105 Times |
| Accuracy | Repeat Error | ±1% max |
| Setting Error | ±10% max |
| Voltage Error | ±1% max |
| Temp Error | ±2% max |
| Reset Time | 0.1 sec max |
| Consumed Power | 3VA |
| Ambient temperature | -10oC~+55oC |
| Ambient Huminity | 48~85% RH |
| Weight | 220g
|
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
