Quanzhou Truest Communication Co., Ltd. >> FM Transceiver/Walkie Talkie/Two Way Radio (TC-V77)

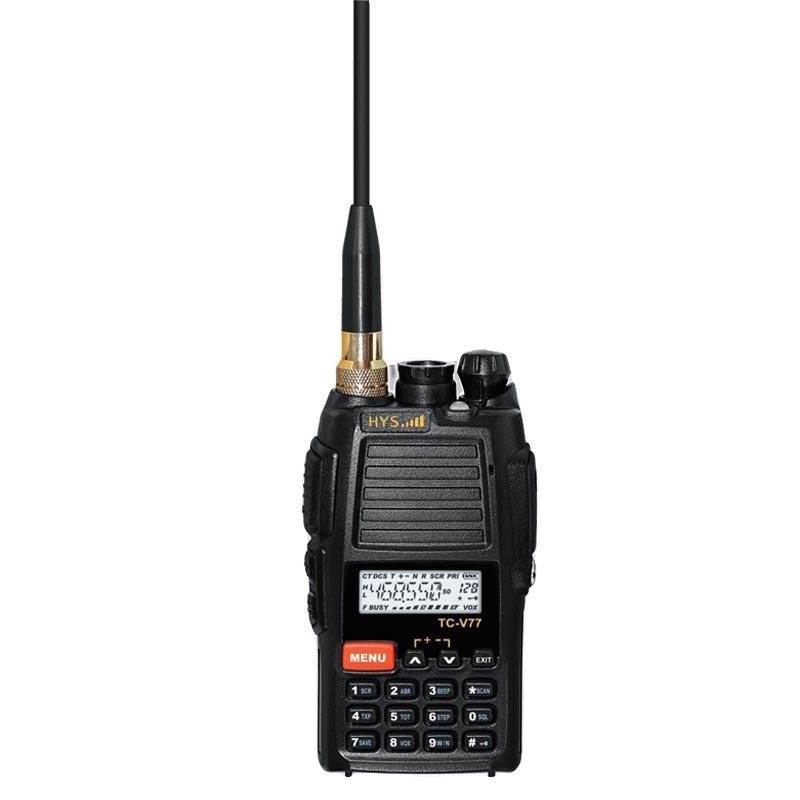

FM Transceiver/Walkie Talkie/Two Way Radio (TC-V77)

Name: FM Transceiver/Walkie Talkie/Two Way Radio (TC-V77)
Brand: china-manufacturer-directory.com
SKU: 678901975
Availability: InStock
Rating: 4.9 (142 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	TC-V77
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	VHF/UHF
FM Radio:	Yes
Flashlight:	Yes
Vox:	Yes
Dtmf:	Yes
PC Programming:	Yes
Tot:	Yes
Weight:	190g
Battery Capacity:	1200mAh(Li-ion Battery)
Dimension:	110×61×34mm (Except Antenna)
Condition:	New
Function:	Signal Transmitting Device
Type:	Transmitter

Product Description

1. FM radio
2. Voice guide
3. Voice encryption
4. Flashlight
5. DTMF
6. ANI code
7. PC Programming
8. All calls, group calls
9. Emergency alarm
10. Inspection
11. Monitor
12. Stun and kill
13. Battery save
14. VOX
15. TOT
16. Busy channel lockout
17. Wired cloning
18. PC programming

TC-V77
General Specification
Frequency Range	FM:87-108MHZ	Frequency combination	Phase lock loop frequency synthesize
	VHF:136-174MHZ
	UHF:350-390MHZ, 400-470MHZ,480-520MHZ
Memory Channels	128 Channels	Operating Voltage	DC7.4V
Channel Spacing	12.5/25KHz	Battery Capacity	1200MAH(Li-ion battery)
Frequency Stability	±2.5PPM	CTCSS/DSC	CTCSS:50 DCS:105
Antenna Impedance	50Ω	Operating Temperature	-10°C to +60°C
Weight(approx.)	190g(Except battery and antenna )	Dimension(approx.)	110×61×34mm (Except Antenna)
Transmitter(Testing under TIA/EIA-603 standard)
Output Power	≤ 5W	Modulation Mode	16K¢F3E
MAX. Frequency Deviation	≤±5.0KHz	Frequency Stability	±5ppm
Spurious Radiation	≤60dB	Residual Modulation	≤-35dB
Modulation Distortion	≤5%(300-3000Hz)	FM Noise	≤-40dB
Audio Distortion	≤5%	CTCSS Frequency Deviation	0.75KHz±50Hz
Receiver(Testing under TIA/EIA-603 standard)
Sensitivity	≤0.20uV	Operating Bandwidth	≥±7KHz
Squelch Sensitivity	≤0.15uV	Frequency Stability	±5ppm
Adjacent channel selectivity	≥60dB	Spurious Rejection	≥60dB
Intermodulation Rejection	≥60dB	FM Noise	≤-45dB
Audio Power	≥600mW	Audio Distortion	<5%
Meet U.S.A Military Standards (MIL-SID-810C/D/E)

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
