Product Specifications
| Prod Model: |
BX-5MK2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product name:

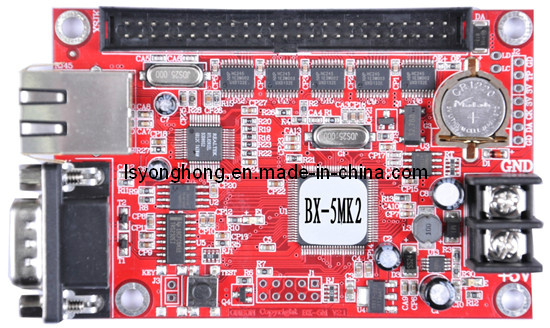

BX-5MK2 multi-area Font Library LED Controller
Applications:
Support Ethernet communication mode. Mainly used on industrial field, equipment, logistic warehouse and cluster system, etc.
Controller built-in font library. It could display content when users send characters, which greatly reduce the data flow and decrease the hardness on development.
Support informations dynamically refreshing: With totally 6 dynamic areas, could update informations at the same time, also could update independently;
Dynamic refreshing intervals ≥ 0.5s
BX-5MK series is based on the font library design, and suitable for the requirement of updating informations frequently. Especially for SDK.
Features:
Support many kinds of application systems, and satisfy the users' special requirement;
Smart control areas, abundant display functions and high performance price ratio;
Good technology and best quality;
Support firmware update online, which greatly save the cost on system development and updating;
Technical parameters:
Product model BX-5MK2
Product status 5th generation product, put into the market in December 2012, spot in stock
Control area Single color 72K pixels: 2048*16 2048*32 1536*48 1152*64 768*96 576*128 384*192 288*256
Double color 36K pixels: 2048*16 1152*32 768*48 576*64 384*96 288*128 192*192 144*256
Storage capacity 2MByte
Screen types All kinds of single and double colors LED screen
Software function System cluster management/multi-program editing/multi-area display
Program quantity Support 128 programs, 5 ares for each program
Area type Text/Time/dynamic area
Program type Normal program/Dynamic area
Font library 16 DOT matrix/24 DOT matrix/32 DOT matrix
Communication mode 100M Ethernet/RS232/RS485, standard with 100M Ethernet
Interface 1 nos 50PIN interface
Sensors Not support
Brightness 16 grades brightness, manual and auto-timing adjustment
Power on/off mode Auto-timing powered on/off
Voltage 5V(3.5V~6.5V)
Maximum power ≤ 1.8W
Temperature -40~80 degrees centigrade
SDK Offer communication protocol and Demo software
User manual " BX-5K user manual " " font_controller_protocol " " BX-5MK controller ardware Illustration "
Adapter HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12 HUB64-T12
