Product Specifications
| Prod Model: |
BX-5A1 |
| Markets: |
South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Application:
Serial communication mode,cheap and easy to operate. dedicated for small area LED strip screen, industry production lines and all kinds of LED cluster display system.
Features:
Flexible and rich display control, high cost performance.
3.5V-6.5V wide voltage range.-40~80 degrees centigrade wide work temperature
Sophisticated technology and stable quality.
Support software update online
Technical parameters:

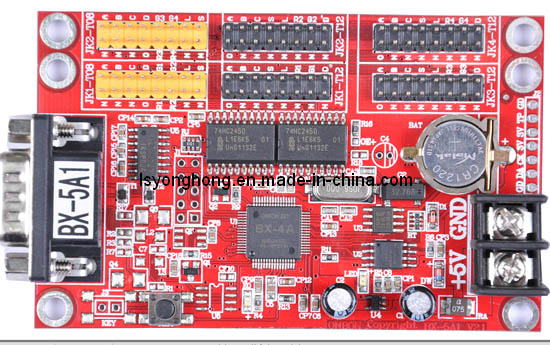

Product model: BX-5A1
Product status: The latest 5th generation products,put into market on March 28,2012.
Control area: Single color 32K:2048*16 1024*32 672*48 512*64
Dual color 16K: 1024*16 512*32 336*48 256*64
Memory storage : 2MByte
Screen types : All kinds of single and double colors LED screen
Software function: Screens cluster management/multi-program/multi-areas display/multi-languages
Program type: Normal/Shared program
Program quantity : Support 128 programs,8 areas for each program
Area type: Image/text/animation/lunar calendar/digital clock/analogue clock
/timer/temperature/temperature & humidity
Frame mode: Most advanced colorful / magic graphics frame/Area frame
Background ;Without
Time mode: Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode; S232/RS485,stanard RS232,customized RS485
Interface: 2 nos T8 and 4 nos T12
Sensors supported : Temperature /humidity
Remote control: Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation; 16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off mode: Auto-timing powered on/off /remote control
Voltage: 5V (3.5V~6V wide voltage)
Maximum power : ≤1W
Temperature: -40~80 degrees centigrade
Secondary development: Provide the DLL and corresponding demos
Software: LedshowTW2013
User manual:LEDshowTW 2013 software user manual
