Applications:
Mainly for website application, support the LAN and internet.
A best choice for single screen or cluster display system.
Widely used in larger lintel display screen and LED cluster display system.
Features:
High cost performance, Support large screen, on-board 100M Ethernet Interface, MAC bindings Mechanism,Ethernet auto-connection.
3.5V- 6.5V wide voltage range. -40°C~80°C wide work temperature.
Support PC direct connection/cross-Ethernet connection/cross-internet connection, support firmware update online
Technical parameters:

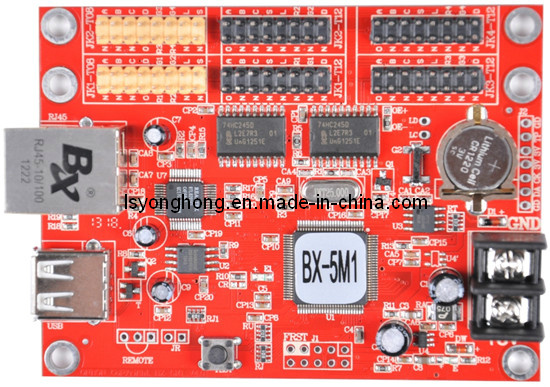

Product model: BX-5M1
Product status: The latest 5th generation products,put into market on March 28,2012.
Control area: Single color32K:2048*16 1024*32 672*48 512*64
Dual color 16K:1024*16 512*32 336*48 256*64
Memory storage : 2MByte
Screen types : All kinds of single and double colors LED screen
Software function: Screens cluster management/multi-program/multi-areas display/multi-languages
Program type: Normal/Shared program
Program quantity : Support 128 programs,24 areas for each program
Area type: Image/text/animation/lunar calendar/digital clock/analogue clock
/timer/temperature/temperature & humidity
Frame mode: Most advanced colorful / magic graphics frame/Area frame
Background: Support text/image back ground/animation background
Time mode: Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode: 100M ethernet/RS232/RS485,stanard is 100M ethernet, USB port
Interface: 2 nos T8 and 4 nos T12
Sensors: supportedTemperature /humidity
Remote control: Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation: 16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off mode: Auto-timing powered on/off /remote control
Voltage: 5V (3.5V~6.5V wide Voltage)
Maximum power: ≤1.8W
Temperature : -40~80 degrees centigrade
Secondary development: Provide the DLL and corresponding demos
Software: LedshowTW2013
User manual: LEDshowTW 2013 software user manual
