Product Specifications
Product Description

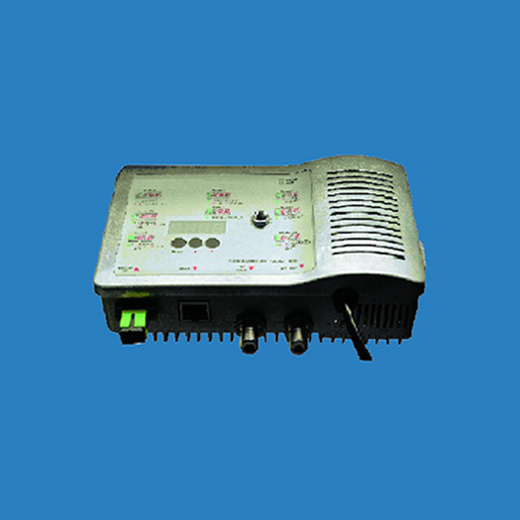

RD1000JS Optical receiver is the latest 1GHz FTTB dual switch optical receiver with wide range receiving optical power, high output level and low power consumption. It is the ideal equipment to build the high-performance NGB network.
Performance Characteristics
1) Excellent optical AGC control technique, when the input optical power range is -9~+2dBm, the output lever, CTB and CSO basically unchanged;
2) Two-way optical signal receiving, back up each other, arbitrarily set the auto-switching conditions and can also be set to manual switch
3) Downlink working frequency extended to 1GHz, RF amplifier part adopts the high performance low power consumption GaAs chip, the highest output level up to 108 dBuv;
4) EQ and ATT both use the professional electric control circuit, makes the control more accurate, operation more convenient;
5) Built-in the national standard II class network management transponder, support remote network management (optional);
6) Compact structure, convenient installation, is the first choice equipment of FTTB CATV network;
7) Built-in high reliability low power consumption power supply
Technology Parameters
| Item | Unit | Technical Parameter |
| Receive Optical Power | dBm | -9 ~ +2 |
| Optical Return Loss | dB | >45 |
| Optical Receiving Wavelength | nm | 1100 ~ 1600 |
| Connector Type | ---- | SC/APC |
| Fiber Type | ---- | Single Mode |
Link Parameter
| CNR | dB | ≥ 51 | EQ 6dB, Output level 108 dBμV 42-channel signal source input, -2dBm optical power received |
| CTB | dB | ≥ 60 |
| CSO | dB | ≥ 60 |
RF Parameter
| Frequency Range | MHz | 45 ~862/1000 |
| Flatness in Band | dB | ±0.75 |
| Rated Output Level | dBμV | ≥ 108 |
| Max Output Level | dBμV | Optical AGC-9dBm-+2dBm≥110, Optical AGC-7dBm-+2dBm≥ 114 |
| Output Return Loss | dB | ≥16 |
| Output Impedance | Ω | 75 |
| Optical AGC range |
| (-9dBm/-8dBm/-7dBm/-6dBm/-5dBm/-4dBm)-(+2dBm) adjustable |
| Electrical control EQ range | dB | 0~15 |
| Electrical control ATT range | dBμV | 0~15 |
Generic characteristic
| Power Voltage | V | AC(150~265)V |
| Operating Temperature | ºC | -40~60 |
| Consumption | VA | ≤8 |
| Dimension | mm | 190(L)* 110(W)* 52(H) |
