Product Specifications
| Prod Model: |
RDB2102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CATV（Cable Television）Equipment |
| Function: |
Signal Transmitting Device |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

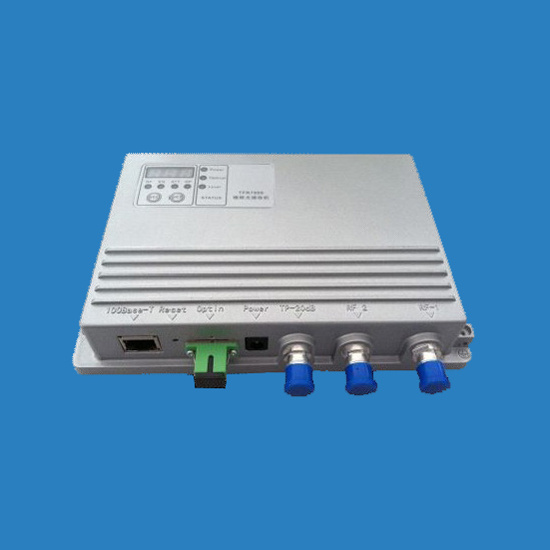

RDB2102 FTTB optical receiver can be used for CATV network, digital network and telecommunication network. It especially suitable for the FTTx network which the fiber extended to the building, the output ports covered subscribers.
RDB2102 FTTB optical receiver input power range is -9dBm~+3dBm, optic AGC adjustment range is 8~+2dBm, among this range, every port is up to 102dBuV for the dual outlets.CNR> 47dB at -6dBm input.
AC220V power is converted to DC6.5v through the out-set power adapter to feed the receiver's
interior.
Feature
1) 47~1000MHz working bandwidth
2) Completely comply with the national standard SNMP, support remote or local operation to optical receiver's setting and management, support setting and management directly to Web page.
3) Perfect surge suppression circuitry, improved the anti-lightning strike and the prevention of lightening surge shocks.
4) -8~+2dBm stable optic AGC function, input power range -9~+3dBm
5) Adopt imported low noise, high performance GaAs chips, greatly improved C/N and non-line distortion while significantly reducing the power consumption, complete machine's power consumption is less than 7W.
6) Strict reliability testing, MTBF is more than 100 thousand hours.
7) Adopt excellent detector, responsiveness is bigger than 0.9A/W.
8) Real time display the status of input power(OP),output RF level(RF), ATT value(ATT), EQ value(EQ) by LED, and real time setting to ATT and EQ.
9) Out-set high quality switching-power adapter which have 3C certification
Technique Parameter
| Optical |
| Wavelength | nm | 1200~1600 |
| optic connector | | FC/APC or SC/APC |
| input power range | dBm | -9~+3 |
| optic AGC range | dBm | -8~+2 |
| RF |
| Frequency range | MHz | 47~1000 | |
| flatness | dB | ±0.75 | |
| RF output port number | | 1~2 | |
| standard output level | dBuV | 102 | Dual outlets |
| testing port | dB | -20 | |
| RF output impendence | Ω | 75 | |
| Gain adjustment range | dB | 0~15 | 1dB step |
| Slope adjustment range | dB | 0~12 | 3dB step |
| output return loss | dB | >16 | |
| Equivalent input noise | PA / Hz | ≤8 | |
| Link |
| C/N | dB | >47 | -6dBm input power,6dB EQ,59 PAL-D analogue TV Channels and 45 digital Channels, digital signals |
| CTB | dBc | >65 |
| CSO | dBc | >61 |
| General |
| dimenstion | mm | 185×118×36 | |
| outset power input voltage | Vac | 100~240Vac, 0.5A,50/60Hz | |
| outset power output voltage | V | 6.5 | |
| Power consumption | VA | <7 | Including NMU |
| working temperature | ºC | -30~+65 | |
| storage temperature | ºC | -35~+70 | |
| working humidity | | 10%-90% (non-condensing) | |
| Weight | Kg | 0.5 | |
