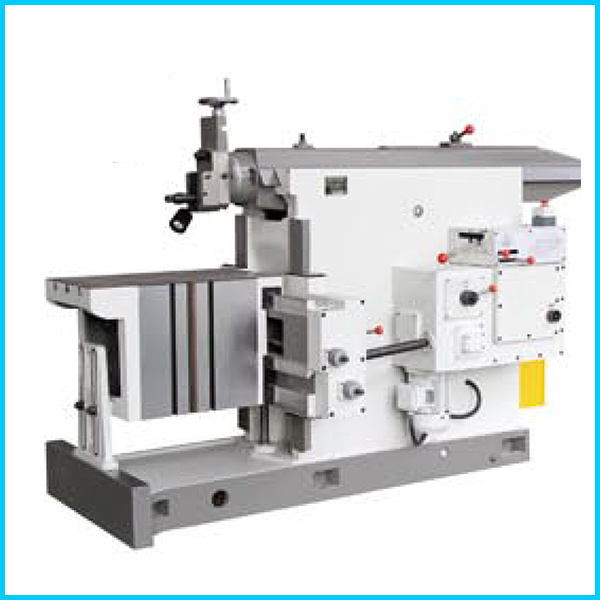

Model | BC6085 |
Maximum planing length(mm) | 850 |
Max.range if the borizontal movement of the table(mm) | 400 |
Max.distance between the ram bottom and table(mm) | 710 |
Max.length of the vertical movement of table(mm) | 360 |
Dimensions of table top(LxW) | 800x450 |
Travel of tool head | 160 |
Number of ram strokes per minute(times/min) | 14,20,28,40,56,80 |
Swivel of tool head | ±60° |
Number of ram reciprocation per minute(mm) |
|
Range of table feed | Horizontal(mm) | 0.25~3 |
Vertical(mm) | 0.12~1.5 |
Width of the T-slot for center positioning(mm) | 22 |
Power of the main motor(KW) | 5.5 |
Overall dimensions(LXWXH) | 2950x1325x1693 |
N.W/G.W | 2940/3090 |
Travel of tool head:160
Swivel of tool head:±60
Width of the T-slot for center positioning:22mm
Power of the main motor:5.5kw
Overall dimensions:2950x1325x1693mm
N.W/G.W:2940/3090
Our company is a professional company to manufacture & export machines and accessories. Our company mainly produces Lathe Machine, Milling machine, Drilling machine, Grinding machine, Metal Forming machine, Saw Machine and some machine accessories. Our company has formed a completely machine tools production system.
Our major objectives are providing quality, technology, innovations & services. We devote all of our efforts to provide our customers superior quality & reliable products, innovative design & technology, professional and quick after sales after service.
Our machine is the best quality in China and our prices are competitive. The most of our machine exported to high-end market. Such as Germany, USA, and Japan. Our production agents distributed in North America (USA), Europe (Germany) & Asia (Japan)
We sincerely invite that you can join our group in the near future. Thank you.
If you have any question or requirement, please contact us without hesitation, we are very pleased to provide service for you.
