| Supplier: | Shanghai Fulai Industry Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CIF,EXW |
|
|
| Prod Model: | BC6085 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width Of Central T-Slot Of Table: | 22mm |
| Power Of Motor: | 5.5kw |
| N.W/G.W: | 2940/3090kg |
| Travel Ogf Head: | 160 |

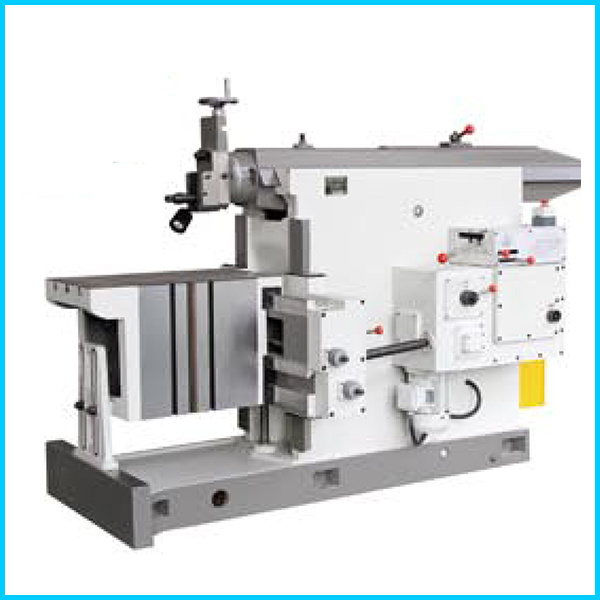

| Type: | Shaping Machine |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Power Source: | Hydraulic Pressure |
| Precision: | High Precision |
| Model | BC6085 | |
| Maximum planing length(mm) | 850 | |
| Max.range if the borizontal movement of the table(mm) | 400 | |
| Max.distance between the ram bottom and table(mm) | 710 | |
| Max.length of the vertical movement of table(mm) | 360 | |
| Dimensions of table top(LxW) | 800x450 | |
| Travel of tool head | 160 | |
| Number of ram strokes per minute(times/min) | 14,20,28,40,56,80 | |
| Swivel of tool head | ±60° | |
| Number of ram reciprocation per minute(mm) | ||
| Range of table feed | Horizontal(mm) | 0.25~3 |
| Vertical(mm) | 0.12~1.5 | |
| Width of the T-slot for center positioning(mm) | 22 | |
| Power of the main motor(KW) | 5.5 | |
| Overall dimensions(LXWXH) | 2950x1325x1693 | |
| N.W/G.W | 2940/3090 | |
