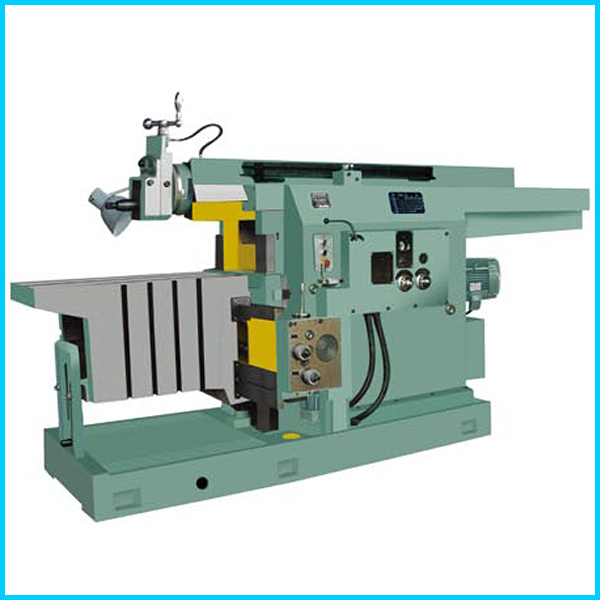

| Model | BY60100C |
| Max.cutting length | 1000mm |
| Min.cutting length | 1500mm |
| Working speed of the ram | 3-44m/min |
| Max.distance from the undersurface of ram to the worktable | 400mm |
| Max.cutting force | 1500mm |
|
| Max.working distance of knife rest | 160mm |
| Max.swivel of knife rest | 60 |
| Max.size of tool bar(width*height) | 30*45mm |
| Ram stroke reciprocating table for each level of the scope of the direction of feed | 0.25-5mm(reciprocating travel per time) |
| Ram stroke each table vertically reciprocating feed range | 0.05-0.25(reciprocating travel per time) |
| Transverse rapid travelling speed of the workticallworktable | 3m/min |
| Vertical movement of the worktable | 0.15m/min |
| Table area (length*width) | 1000*500mm |
| T he width of | 22mm |
| The T-solt in the center of the worktable |
| Max.deadweight of the worktable | 320kg |
| Max.lateral process of the worktable | 800mm |
| Max.cutting length when knife rest turn around | 800mm |
|
| Main motor power | 7.5kw |
| The ram of the main motor power | 970r/min |
| The motor power | 1.1kw |
| When the worktable quickly moved |
| The ram when the worktable quickly moved | 1400r/min |
| Flow of duplex vane pumpCSYB-63/63 | 63*63(L*M) |
| Overall Dimensions(L*W*H) | 3610*1545*1827mm |
| The weight of the machine | 4600kg |
Maximum cutting length:1000mm
Main motor:7.5KW
Overall dimensions:3610x1545x1827mm
The weight of the machine:4600kg
Our company is a professional company to manufacture & export machines and accessories. Our company mainly produces Lathe Machine, Milling machine, Drilling machine, Grinding machine, Metal Forming machine, Saw Machine and some machine accessories. Our company has formed a completely machine tools production system.
Our major objectives are providing quality, technology, innovations & services. We devote all of our efforts to provide our customers superior quality & reliable products, innovative design & technology, professional and quick after sales after service.
Our machine is the best quality in China and our prices are competitive. The most of our machine exported to high-end market. Such as Germany, USA, and Japan. Our production agents distributed in North America (USA), Europe (Germany) & Asia (Japan)
We sincerely invite that you can join our group in the near future. Thank you.
If you have any question or requirement, please contact us without hesitation, we are very pleased to provide service for you.
