Full Color LED Display (p6 outdoor LED screen)

Name: Full Color LED Display (p6 outdoor LED screen)
Brand: china-manufacturer-directory.com
SKU: 745932095
Availability: InStock
Rating: 4.8 (125 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 1330-1400/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	p6 outdoor led display
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Module Size:	192*96mm
Mbtf:	9000hours
Refresh:	2200Hz
Tube Chip Color:	Full Color
IP Rating:	IP67
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Scanning Mode:	1/8 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC
Pixel Pitch:	6mm
Pixel Density:	27777dots/M2

Product Description

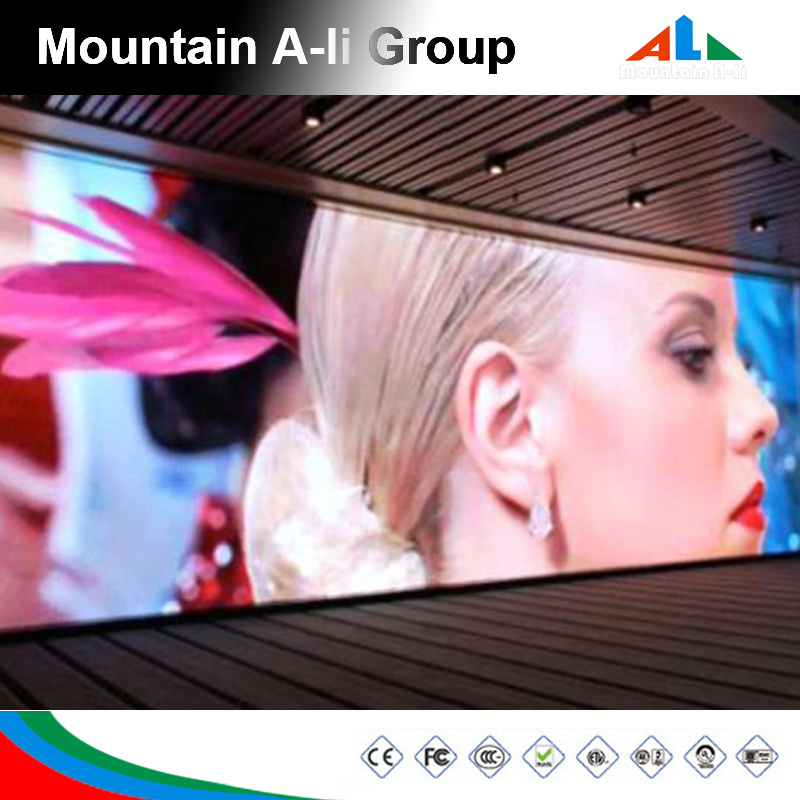

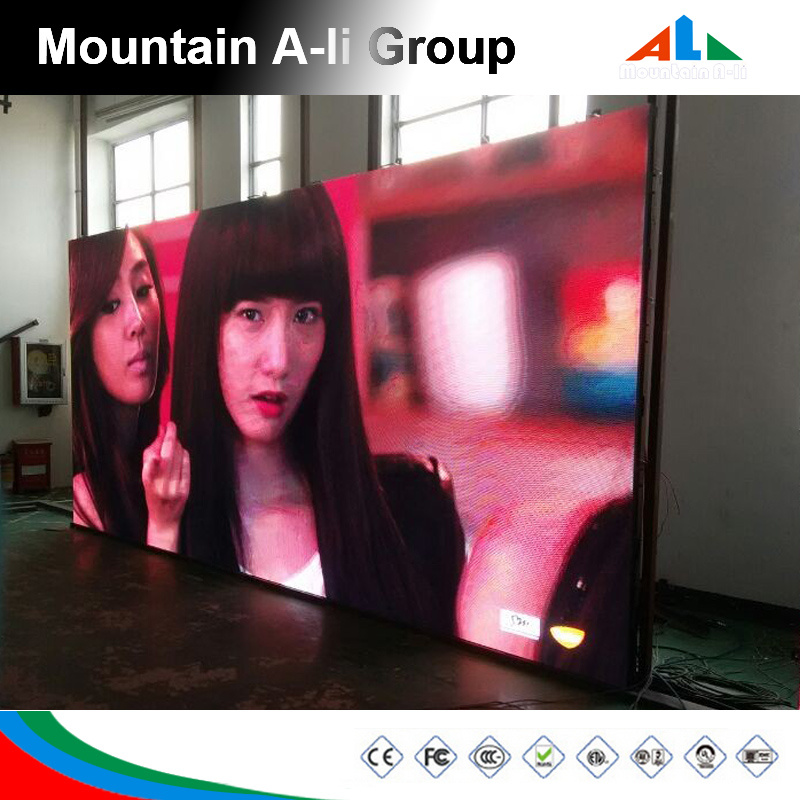

Outdoor Full Color LED Display (P6 advertising LED Display Screen)/LED sign/LED wall
1. full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.

(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)

2. P6 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.

3. Description:LED Display /led display screen/LED sign/LED video wall

1). Model No.: P6mm, P7mm, P8mm, P10mm, P12mm, P16mm, P20mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee:2 year with parts

Factory:

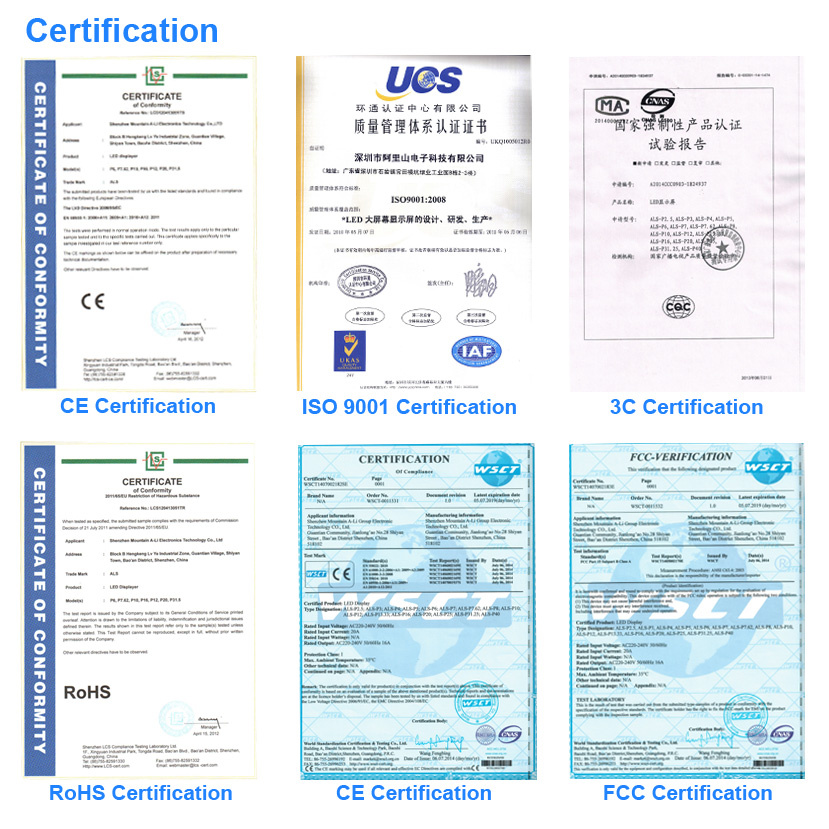

Certification(Mountain A-Li LED DISPLAY)

3C certification

CE certification

ISO9000

ROHS certification

IP65 certification

EMC certification

The Technical Parameters of p6 led screen Dip 3 in 1

The specifications of modules

Items			Parameter
Product Model			P6 Full Color Led Module
Module size			192mm*96mm
Pixel pitch			6mm
Pixel density			27777dots/m2
Pixel configuration			RGB 3 in 1
Module resolution			32dots(W)*16dots(H)
Module maximum power consumption			20W
Module Thickness			2.7CM
Module Weight			0.4kg
Driving method			Constant Current Driving
Scanning method			1/8 scan
Interface			HUB75B
Brightness			≥7000cd/m2
The specifications of cabinets

Cabinet size			768mm x 768mm
Module quantity			32pcs
Power supply			5V/40A 5V/60A
Cabinet resolution			128*128dots
Optimal viewing distance			5M ~ 50M
Optimal viewing angle			160°(W) 120°(H)
RHWorking temperature			(Work :-40 degree~ +60 degree )
System operating humility			10%-95%
The specifications of power supplier

Operating Voltage			AC220V±10%
Average power consumption			350W/H
Maximum power consumption			≤600W/ m2
Electric current			≤20mA(single LED)
The specifications of control card
Control Panels			Pentium4 or above
Operating system			WIN98/2000/NT/XP
Control model			Synchronization with PC
The specifications of the main technical parameters

Driving device			Constant Current Driving
Refresh rate			≥2200HZ
Grey scale			RGB Each 256, can display 16.7M colors)
MTBF			≥9000hours
Power switch			Automatic Switch
Display Mode			800600/1024768/1280*900

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
