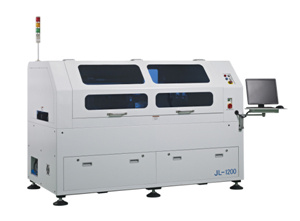

a high precision automatic solder paste printer designed for high precision screen printing or stencil printing in LED manufacturing industry.
Product Features:
A) Support wide spectrums of PCB size from 100mm x 50mm to 1500mm x 350mm and PCB thickness from 0.6mm to 6mm.
B) High printing resolution:
1. High positioning accuracy, repeat positioning accuracy ± 0.015mm; Printing accuracy 0.03mm.
Support glue printing
C) Automatic control improves production efficiency, controls quality and saves production cost:
1. Automatic stencil positioning;
2. Automatic PCB location calibration
3. Automatic adjustment of squeegee pressure;
4. Automatic printing;
5. Automatic stencil cleaning (dry-type, wet-type);
D) Adopt company independently developed suspended print head with automatic pressure adjustment system. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect paste forming effect.
E) Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.
F) Multi-functional PCB fixed positioning system, for convenient and accurate PCB positioning.
G) Upward and downward visual positioning.
H) Built-in image processing system;
I) Support 2D, SPC functions.
Applicable pitches of Components
A) SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.
B) IC: Support SOP, TSOP, TSSOP, QFN packaging, min. Pitch 0.3 mm; Support BGA, CSP packaging, min. Ball 0.2 mm.
C) Printing size: 100mm x 50mm ~1500 mm x 350 mm;
D) PCB thickness: 0.6 mm ~ 6 mm
E) FPC thickness: Less than 0.6 mm (excluding jig)
Applicable PCB Types
Applicable to PCB types of LED, mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, space flight and aviation, as well as production and processing of general electronics products
Items |
| Parameters |
Repeat Position Accuracy | ±0.01mm |
Printing Accuracy | ±0.025mm |
Printing Speed/Cycle Time | <15s (Exclude Printing & Cleaning) |
Products Changeover | <5Min |
Screen Stencil Size/Min | 1300mmX370(Standard);900mm X 370mm(Optional, pressing plate on guide rail shall be replaced) |
Screen Stencil Size/Max | 1800mm X 750mm |
Screen Stencil Thickness | 20mm ~ 40mm |
PCB Size/Min | 100X50mm |
PCB Size/Max | 1500X350mm |
PCB Thickness | 0.6~6mm (thickness <0.8mm need jig ) |
PCB Warpage Ratio | <1%(Based on diagonal length) |
Bottom of Board Size | 15mm (distance from pins to PCB) |
Edge of Board Size | 3mm (distance before PCB clamping) |
Transport High | 900±40mm |
Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right |
Transport Speed | 50-1200mm/sec programmable control |
Board Location | Support System | Magnetic pin/Side support block/Flexible automatic pin(optional) |
Clamping System | Elastic side clamping/Vacuum nozzle/Extension-type Z-direction tabletting |
Print head | Programmable motor driven print head (pneumatic control print head: optional) |
Squeegee Speed | 10~200mm/sec |
Squeegee Pressure | 0-15kg programmable control |
Squeegee Angle | 60°(Standard )/55°/45° |
Squeegee Type | Steel squeegee (standard), rubber squeegee, and other types of squeegee customizable. |
Stencil Separation Speed | 0.1~20mm/sec Programmable |
Cleaning Method | Dry-type, wet-type |
Table Adjustment Range | X:8mm;Y:±10mm;θ:±2° |
Type of Fiducial Mark | Standard geometry shape of fiducial point, bonding pad / stencil hole |
Camera System | Single digital camera with upward/downward vision system |
Air Pressure | 4~6Kg/cm2 |
Air Consumption | Approx 0.07m3 /min |
Control Method | PC Control |
Power Supply | AC:220±10%,50/60HZ 1Φ 2.5KW |
Machine Dimensions | 2600(W) x 1220(D) X1550(H)mm (excluding the height of indicating lighthouse) |
Weight | Approx. 1800Kg |
Operation Temperature | -20°C ~ +45°C |
Operation Humidity | 30%~60% |
Shenzhen Huancheng Automation Equipment Co., Ltd built in 2011, a High-speed developing manufacturer of High Precision Automatic Solder Paste Printer, Which specializes in High Precision Automatic Solder Paste Printer research and development.
Developing with equal pitches, high precision and high density electronic packaging technology such as QFP\SPO\BGA\01005 etc, the HC people are committed to build a high speed, high efficiency, cost-effective "HC highway " in SMT solder paste printing field to make the manufacturing more productive, more cost-effective and more profitable in current fierce competition market of SMT industry.
"stable technical level, innovative design concept, precise manufacturing process, reasonable price, and customer first after-sales system", For this purpose, We have successfully developed CC\CP\CM and other diversified High Precision solder paste printer products to meet the need of different customers.
