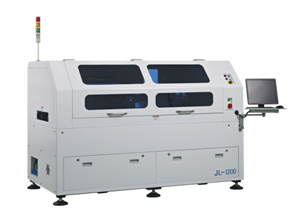

JL-1200 is a high precision automatic screen stencil printer designed for high precision steel mesh printing or stencil printing in SMT industry.
Wide compatibility for PCB dimensions from 50mm x 50mm to 1200mm x 340mm and PCB thickness from 0.6mm to 6mm.
High printing resolution:
High positional accuracy, repeated positioning accuracy ± 0.01mm; Printing accuracy 0.03mm.
Support glue printing
Automatic control improves production efficiency, controls quality and saves production cost:
Automatic stencil positioning;
Automatic PCB alignment;
Automatic adjustment of squeegee pressure;
Automatic printing;
Automatic stencil cleaning (dry-type, wet-type);
Adopt company independently developed suspended print head and programmable automatic pressure adjustment system with pressure closed-loop feedback. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect paste forming effect.
Programmable motor controls separation speed and stroke between squeegee and stencil, to realize multi-method demold.
Multi-functional PCB fixed positioning system, for convenient and accurate PCB positioning.
Upward and downward visual positioning.
Built-in image processing system;
Support 2D, SPC functions.
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.
IC: Support SOP, TSOP, TSSOP, QFN packaging, min. Pitch 0.3 mm; Support BGA, CSP packaging, min. Ball 0.2 mm.
Printing size: 80mm x 50mm ~1200 mm x 340 mm;
PCB thickness: 0.6 mm ~ 6 mm
FPC thickness: Less than 0.6 mm (excluding jig)
Applicable PCB Types
Applicable to PCB types of LED, mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, space flight and aviation, as well as production and processing of general electronics products
Items |
| Parameters |
Repeat Position Accuracy | ±0.015mm |
Printing Accuracy | ±0.03mm |
Printing Speed/Cycle Time | <15s (Exclude Printing & Cleaning) |
Products Changeover | <5Min |
Screen Stencil Size/Min | 1100mmX300(Standard);730mm X 300mm(Optional, pressing plate on guide rail shall be replaced) |
Screen Stencil Size/Max | 1500mm X 750mm |
Screen Stencil Size/Thickness | 20mm ~ 40mm |
PCB Size/Min | 80X50mm |
PCB Size/Max | 1200X340mm |
PCB Size/Thickness | 0.8~6mm |
PCB Warpage Ratio | <1%(Based on diagonal length) |
Bottom of Board Size | 15mm |
Edge of Board Size | 3mm |
Transport High | 900±40mm |
Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right |
Transport Speed | 50-1200mm/sec programmable control |
Board Location | Support System | Magnetic pin/Side support block/Flexible automatic pin(optional) |
Clamping System | Elastic side clamping/Vacuum nozzle/Extension-type Z-direction board pressing |
Print head | Programmable electric control (cylinder control: optional) |
Squeegee Speed | 10~200mm/sec |
Squeegee Pressure | 0-15kg programmable control |
Squeegee Angle | 60°(Standard )/55°/45° |
Squeegee Type | Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized. |
Stencil Separation Speed | 0.1~20mm/sec Programmable Control |
Cleaning Method | Dry-type, wet-type, vacuum-type (arbitrary combination with programmable control) |
Table Adjustment Range | X:8mm;Y:±10mm;θ:±2° |
Type of Fiducial Point | Standard geometry shape of fiducial point, pad /hole |
Camera System | Single digital camera for upward/downward vision system |
Air Pressure | 4~6Kg/cm2 |
Air Consumption | About 0.07m3 /min |
Control Method | PC Control |
Power Supply | AC:220±10%,50/60HZ 1Φ 1.5KW |
Machine Dimensions | 2220(W) x 1220(D) X1500(H)mm without the height of lighthouse, please see Dimension of Product) |
Weight | Approx:1500Kg |
Operation Temperature | -20°C ~ +45°C |
Operation Humidity | 30%~60% |
