Quanzhou Truest Communication Co., Ltd. >> GPS Portable Dpmr Digital Two Way Radio

GPS Portable Dpmr Digital Two Way Radio

Name: GPS Portable Dpmr Digital Two Way Radio
Brand: china-manufacturer-directory.com
SKU: 772348205
Availability: InStock
Rating: 4.9 (75 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	TC-819DP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	136-174 MHz; 400-470 MHz
Channel Spacing:	12.5kHz(Digital)/ 25kHz(Analog)
Channel Capacity:	256
Operating Voltage:	DC7.4V±15%
Battery Pack:	1800mAh
RF Power:	VHF:5W/1W; UHF:4W/1W
4fsk Modulation Accuracy:	≤5%
Dimensions(W×h×d):	60mm × 135mm × 36mm
Weight:	262g(with Belt Clip and Antenna)
Style:	Sky Wave
Condition:	New
Standard:	Standard
Screen:	With Screen

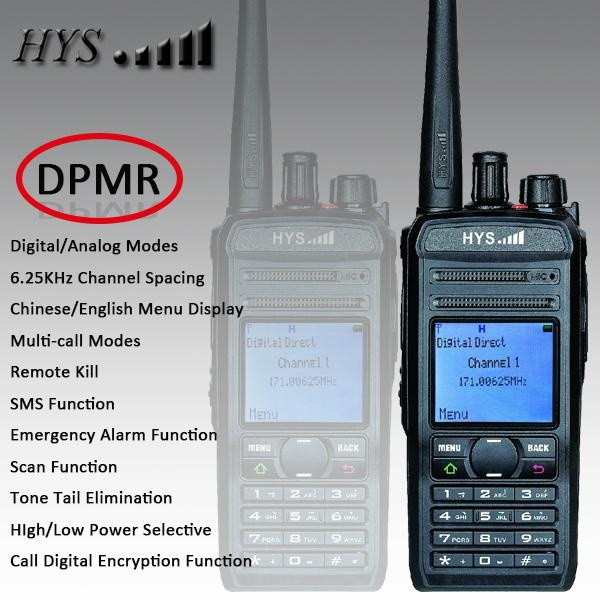

Product Description

Digital/Analog Modes

6.25KHz Channel Spacing

Chinese/English Menu Display

Multi-call Modes

Remote Kill

SMS Function

Emergency Alarm Function

Call Recording and Playback (Optional)

GPS RX Positioning (Optional)

Scan Function

Tone Tail Elimination

HIgh/Low Power Selective

Call Digital Encryption Function

General Specification
Frequency Range	136-174 MHz; 400-470 MHz	446MHz
Channel Spacing	12.5KHz(Digital)/ 25KHz(Analog)	6.25KHz(Digital)/12.5KHz(Analog)
Channel Capacity	256
Operating Voltage	DC7.4V±15%
Operating Temperature	-20ºC~ +60ºC
Battery Pack	1800mAh
RF Power	VHF:5W/1W; UHF:4W/1W
Frequency Modulation	4FSK(Digital); 11KΦF3E/16KΦF3E(Analog)
4FSK Modulation Accuracy	≤5%
Adjacent Channel Power	≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥60dB @ 6.25KHz;
Adjacent Channel Selectivity	≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥50dB @ 6.25KHz;
Digital Sensitivity	-110dBm (BER ≤1%)
Dimensions(W×H×D)	60mm × 135mm × 36mm
Weight	262g(With Belt Clip and Antenna)

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
