Product Specifications
| Prod Model: |
H5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black/Blue/Optional |
| Host PC: |
Industrial Host PC |
| RAM: |
2g DDR |
| HDD: |
500g HDD |
| Touchscreen Monitor: |
17"/19" Capacitive/Saw/IR Touchscreen Monitor |
| Audio: |
2X5w Stereo Audio |
| Options: |
Barcode Reader, Bill Acceptor, Coin Mechanism etc. |
| Size: |
About: 50*50*165(Customizable) |
| Weight: |
90kg |
| Certification: |
ISO |
| Type: |
Internet Kiosk |
Product Description

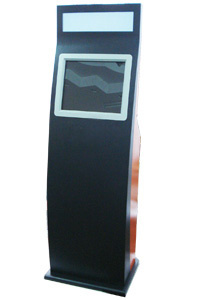

H5C is a selfservice touchscreen kiosk with 3G and light box
FEATURES
Compact design
Study structure with industrial host computer, touchscreen monitor, thermal printer and dotmatrix printer
Waterproof infrared touchscreen monitor optional
|
Hardware Configurations&Specifications |
|
|
Host: |
Motherboard: EPIA-M840-12PE
CPU: 1.2GHz VIA Nano? E (fanless)
RAM:2GB DDRII; Hard Disk: 60G SSD MLC
2*GbE RJ45 Net Port,6*RS232
Integrated VIA Chrome9 HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration
Integrated 3D sound card
8 USB ports
Data Cable; 12V single Power Cable; Newtwork Cable
24/7 sustainable
|
|
|
Display: |
Size: 17" TFT LCD
Resolution: 1024 x 768
Brightness: 350 cd/m
Viewing Angle: 178/178 |
|
|
Touch Screen: |
Optical infrared or SAW touch screen
Calibration: Once-Only, Four Points With no Drift
Touch material: Finger, Gloved Hand or Any Other Pointer
Activation force: No Pressure Required for infrared touch
Response Time: 8ms |
|
|
Receipt Thermal Printer: |
Themal Printer, Paper width:80mm,
Paper roll: 180mm, Thickness:60 to 120g/m2
Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm)
Automatic cutter only;out alarm/to be run out alarm,Jam
Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos
OMR,Black mark sensor,remote accessible Full Status Monitor Driver
Interface: RS232 / USB / Ethernet |
|
|
Impact/Dot-matrix Printer: |
9-pin dotmatrix heavy load printer
Paper width:76mm, Print Speed: 4.1 lines/second
Sensors:out alarm/to be run out alarm,Jam,OMR
Resolution: 8dot/mm;Font Size:16.9/14.1(CPI)
Paper Roll: 85mm max
Power rating: 24V DC 3A
Interface: RS-232/USB/LPT/Ethernet |
|
|
Audio: |
Bi-channel amplified output;
Multimedia stereo speaker |
|
|
Enclosure: |
1.5mm all steel anti-graffiti enclosure |
|
|
Add-ons |
Lightbox,Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt
|
|
|
|
Software Specifications |
|
|
Operating System: |
Windows XP, 7, Mac O/S
|
|
|
Functionalities: |
Queue lines
Cashless payment
Security access control
Internet access
Advertisement
Information
Service
|
|
|
Accessories |
|
|
Included: |
AC Power Cord
LAN cable
User Manual
Drivers CD |
|
|
Optional: |
External Stereo Speakers
External PC
|
|
|
Physical Characteristics |
|
|
Weight: |
80 Kg |
|
|
Size: |
|
|
|
Color: |
Gray, Sliver, Yellow, Beige or other color |
|
|
Environmental: |
0-60 Degrees (c)
0-90% Humidity
Power Consumption 200 Watts |
|
