Product Specifications
| Prod Model: |
PE type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001,ISO14000 |
| After Sale Service: |
We Offer |
| Installation: |
Under Our Engineer's Guide |
| Testing: |
We Offer |
| Design: |
Supply |
| Output: |
72-150 M3/H |
| Tongs' Features: |
Dedicated Tongs |
| Cutter Material: |
High-Speed Steel |
| Principle: |
Fixed Culling |
| Type: |
Jaw Crusher |
| Finished Surface: |
Cut Off Tool |
| Compressive Strength (',For Crushing): |
250-300MPA |
| Application: |
Stone |
| Crushing Style: |
Grinding and Crushing |
Product Description

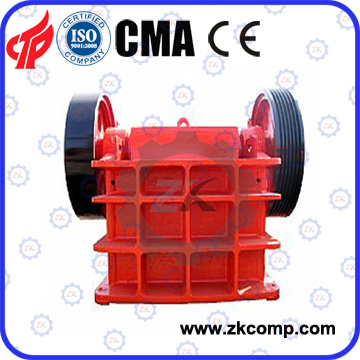

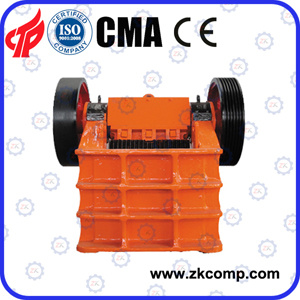

High EfficiencyStone Crushing Machine1)Firm structure
2)Stable performance
3)Large capacity
4)Easy adjustment
5)Perfect pre-service and After-service
Stone Crushing Machine DescriptionThe Stone Crushing Machine zk company offers are ideal for primary and secondary crushing. Stone Crushing Machine is one of the main types of primary crushers in a mine or ore crushing process plant and also is one of the most widely used crushing equipments in mining industry. Zk is a famous Stone Crushing Machine manufacturers in China, and sold crusher machines to all over the world. This series of Stone Crushing Machine can reach the crushing ratio of 4-6 and the shape of final product is even. Because it is primary crusher, Stone Crushing Machine is designed for long life service with minimum maintenance for hard, tough, abrasive material and overload high capacity
Stone Crushing Machine Working PrinciplePrimaryStone Crushing Machine is typically of the square opening design, and secondaryStone Crushing Machine is of the rectangular opening design. Stone Crushing Machine reduces large size rocks or ore by placing the rock into compression. A fixed jaw board, mounted in a "V" alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. The space at the bottom of the "V" aligned jaw plates decide the crusher product size gap, or the size of the crushed product from the jaw crusher. The rock remains in the jaw until it is small enough to pass through the gap at the bottom of the jaws.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone : 861-0371 -5590 2866 .
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558.html
Rotary Kiln:http://www.inczk.com/Products/459.html
Preheater:http://www.zkcomp.com/calcining/605.html
Cement Mill:http://www.inczk.com/Products/460.html
Rotary Dryer:http://www.zkcomp.com/calcining/564.html
Raw Mill:http://www.inczk.com/Products/1373.html
Ball Mill:http://www.zkcomp.com/grinding/582.html
| Mode | Size of Feed
Opening ( mm) | Max Feed
Size ( mm ) | Discharge Range
Opening (mm ) | Capacity(m 3 /h) | Motor Power(Kw) | Weight(t) |
| PE-250× 400 | 250× 400 | 210 | 20-60 | 3-13 | 15 | 2.8 |
| PE-400× 600 | 400× 600 | 340 | 40-100 | 10-35 | 30 | 6.5 |
| PE-500× 750 | 500× 750 | 425 | 50-100 | 25-60 | 55 | 10.6 |
| PE-600× 900 | 600× 900 | 500 | 65-180 | 30-85 | 55-75 | 15.5 |
| PE-750× 1060 | 750× 1060 | 630 | 80-180 | 72-150 | 90-110 | 28 |
| PE-800× 1060 | 800× 1060 | 680 | 100-200 | 85-143 | 90-110 | 30 |
| PE-870× 1060 | 870× 1060 | 750 | 170-270 | 145-235 | 90-110 | 30.5 |
| PE-900× 1060 | 900× 1060 | 780 | 200-290 | 170-250 | 90-110 | 31 |
| PE-900× 1200 | 900× 1200 | 780 | 95-255 | 100-240 | 110-132 | 49 |
| PE-1000× 1200 | 1000× 1200 | 850 | 195-280 | 190-275 | 110-132 | 51 |
| PE-1200× 1500 | 1200× 1500 | 1020 | 150-300 | 250-500 | 160 | 100.9 |
