Product Specifications
| Prod Model: |
CL-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Cutting Diameter For Disc Parts: |
200 |
| Max.Cutting Diameter For Axle Parts: |
120 |
| Z Travel: |
310 |
| X Travel: |
115 |
| Diameter Of Spindle Thru Hole: |
38 |
| Rapid Feed For Axis Z: |
20 |
| Rapid Feed For Axis X: |
12 |
| Max.Speed Of Spindle: |
6000 |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
Quick Details
Condition: New
CNC or Not: CNC
Automatic Grade: Automatic
Max. Swing Diameter: 330 mm
Voltage: Optional
Power(W): 3.7/5.5 KW
Dimension(L*W*H): 3115x1525x1685 mm
Weight: 2800 KG
Certification: CE, ISO9001, ISO14001,SGS
After-sales Service Provided: Overseas third-party support available
Max.cutting diameter for disc parts: 200 mm
Max.cutting diameter for axle parts: 120 mm
Max.length of workpiece: 310 mm
X travel: 115 mm
Z travel: 310 mm
Rapid feed for axis X: 12 m/min
Rapid feed for axis Z: 20 m/min
Max.speed of spindle: 6000 rpm
Spindle nose: A2-4
Diameter of spindle thru hole: 38 mm
TECHNICAL SPECIFICATIONS |
| MODELS | KDCL-10 |
| CAPACITY |
| Max.swing over bed | 330mm |
| Max.cutting diameter for disc parts | 200mm |
| Max.cutting diameter for axle parts | 120mm |
| Max.length of workpiece | 310mm |
| TRAVEL |
| X travel | 115mm |
| Z travel | 310mm |
| FEED |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 20m/min |
| SPINDLE |
| Max.speed of spindle | 6000rpm |
| Spindle nose | A2-4 |
| Diameter of spindle thru hole | 38mm |
| TOOL POST |
| Tool number | 8 ways |
| Outside diameter of cutting tool shank | 20×20mm |
| Inner dia.of cutting tool shank | 32mm |
| TAILSTOCK |
| Tailstock sleeve dia. | 63mm |
| Tailstock sleeve travel | 100mm |
| Taper hole of tailstock quill | M.T.No.3 |
| OTHERS |
| Capacity for coolant | 100L |
| Min.input | 0.001mm |
| Main motor power | 3.7/5.5kw |
| Bed structure | 45° slant bed |
| Overall dimensions(L×W×H) | 3115×1525×1685mm |
| Net weight | 2800kg |

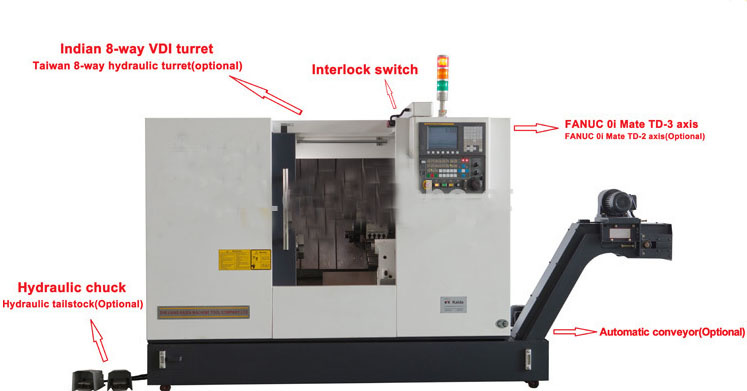

STANDARD DEVICES OR ACCESSORIES |
|
| ITEMS | REMARK |
| 1. CNC system | FANUC 0i Mate-TD |
| 2. Motor of X axis | FANUC |
| 3. Motor of Zaxis | FANUC |
| 4. Main motor | FANUC |
| 5. Ball screw of X/Z | Taiwan brand |
| 6. Linear guide of X/Z | Taiwan brand |
| 7. Tool post | India brand |
| 8. Solid 3-jaw hydraulic chuck | Taiwan brand |
| 9. Solid oil cylinder | Taiwan brand |
| 10. Coolant pump | Taiwan brand |
| 11. Lubrication system | China brand |
| 12. Hydraulic system | China brand |
| 13. Main electrical component | German brand |
| 14. Conveying | China brand |
| 15. Totally sealed guard | China brand |
| 16. Circle toolpost base |
|
| 17. Tool post clamp gib |
|
| 18. Square tool post base |
|
| 19. Tool box including: |
| 1) Open ended wrench | 8-10, 12-14, 17-19 |
| 2) Hex socket wrench | 4, 5, 6, 8, 10, 12 |
| 3) Flat screw driver | 5" |
| 4) Cross screw driver | 5" |
| 5) Chuck key |
|
| 6) Pads |
|
| 7) Operation munal |
|
| 8) Test record |
|
