High Quality Ductile Iron Mechanical Tee (grooved) with FM/UL Approval
| Price: |
US $ 2.1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |

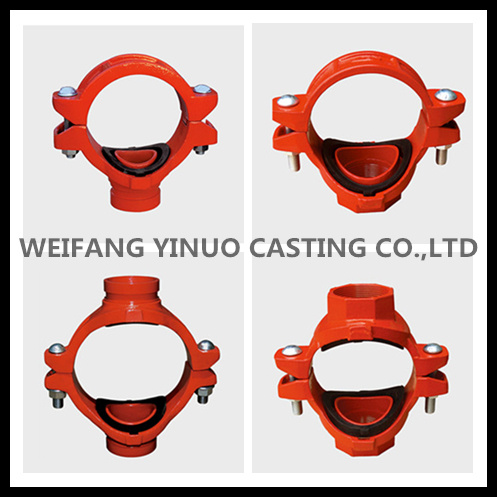

Mechanical Tee(grooved)Material: Ductile Iron (ASTM A536 Grade 65-45-12)
Gasket Material: EPDM/ Silicon Rubber/NBR
Surface Treatment: Epoxy-(Red/Blue/White), Painted-(Orange/Red), Galvanized
Size: 1"-12"
Working Pressure:300 psi
Certification: UL, FM, ISO 9001:2008
Connect Type: Grooved & Thread
Payment term: T/T, LC
Package: Cartons with pallet/ Wooden case
:

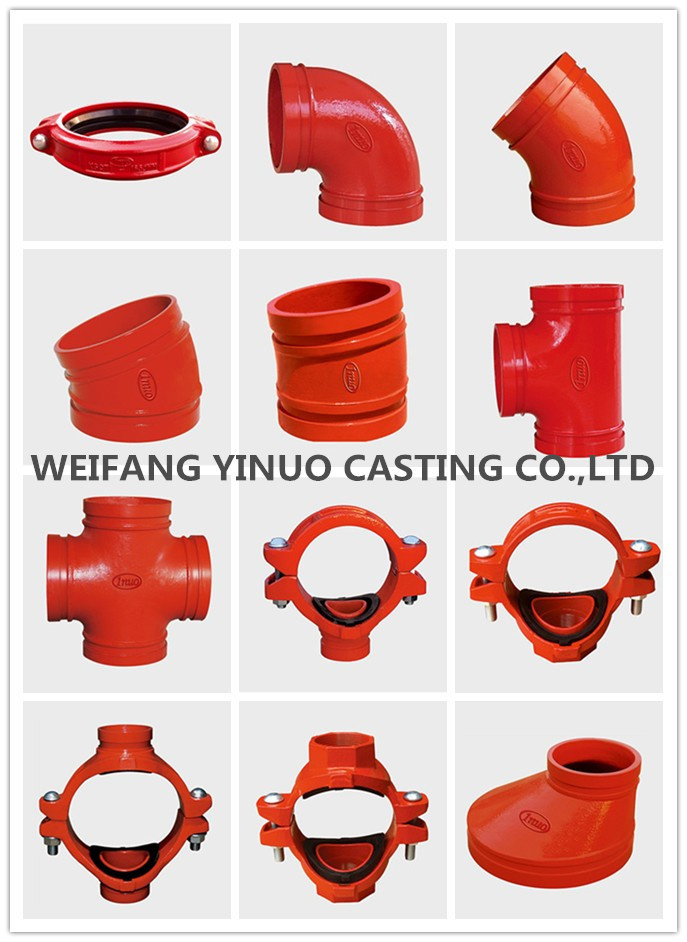

Application: As one of the most popular fittings in fire fighting systems, the grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, oil&gas pipeline, mine piping and ordinary piping delivery. Yinuo is spreading all over the world and winning the appreciations from users at home and abroad.| Nominal Size mm/in | Pipe O.D mm/in | Working Pressure PSI/MPa | Bolt Size | Dimensions mm/in | Hole cuting dimensions |
| No.-Size mm | Ø | A | B | C | mm/in |
| 50*32 | 60.3*42.4 | 300 | 2-M10*55 | 78 | 115 | 68 | 74 | 46 |
| 2*1¼ | 2.375*1.669 | 2.07 | 3.071 | 4.527 | 2.677 | 2.913 | 1.8 |
| 50*40 | 60.3*48.3 | 300 | 78 | 115 | 68 | 74 | 46 |
| 2*1½ | 2.375*1.900 | 2.07 | 3.071 | 4.527 | 2.677 | 2.913 | 1.8 |
| 65*32 | 73*42.4 | 300 | 2-M12*60 | 96 | 138 | 77 | 84 | 51 |
| 2½*1¼ | 2.87*1.669 | 2.07 | 3.78 | 5.433 | 3.031 | 3.307 | 2 |
| 65*40 | 73*48.3 | 300 | 96 | 138 | 77 | 84 | 51 |
| 2½*1½ | 2.87*1.900 | 2.07 | 3.78 | 5.433 | 3.031 | 3.307 | 2 |
| 65*32 | 76.1*42.4 | 300 | 99 | 140 | 78 | 84 | 51 |
| 3OD*1¼ | 3*1.669 | 2.07 | 3.898 | 5.512 | 3.071 | 3.307 | 2 |
| 65*40 | 76.1*48.3 | 300 | 99 | 140 | 78 | 84 | 51 |
| 3OD*1½ | 3*1.900 | 2.07 | 3.898 | 5.512 | 3.071 | 3.307 | 2 |
| Prod Model: |
XGQT03 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| 50: |
60.3 2.375mm/in |
| Type: |
Equal |
| Connection: |
Male |
| Material: |
Iron |
| Shape: |
Equal Tee |
| Lateral: |
90??Tee |
| Head Code: |
Round |
| Wall Thickness: |
SCH160 |
| Finish: |
Black Painting |
| Technics: |
Casting |
| Pressure Rating: |
3000LBS |
| Certification: |
ISO |
| Standard: |
FM & UL |
Our company is specialized in grooved fittings, valves and pipe processing of the Corrosion prevention. We make great contributions for improving the qualities and reducing the cost of the project in field of feed water, fire protection, mineral, electrical power. All grooved fittings & valves use the modern casting tooling of electric furnace smelting, auto-casting, vermicularizing control. The all machining use the CNC machine.
