Standard Ductile Iron Mechanical Tee (grooved) with FM/UL Approval

Name: Standard Ductile Iron Mechanical Tee (grooved) with FM/UL Approval
Brand: China-Manufacturer-Directory.com
SKU: 705709702
Availability: InStock
Rating: 4.3 (47 reviews)

Supplier:	Weifang Yinuo Casting Co., Ltd.
Price:	US $ 2.1/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XGQT03
Markets:	North America,South America,Southeast Asia,Africa,Mid East
50:	60.3 2.375mm/in
Type:	Equal
Connection:	Male
Material:	Iron
Shape:	Equal Tee
Lateral:	90??Tee
Head Code:	Round
Wall Thickness:	SCH100
Finish:	Black Painting
Technics:	Casting
Pressure Rating:	3000LBS
Certification:	ISO
Standard:	FM & UL

Product Description

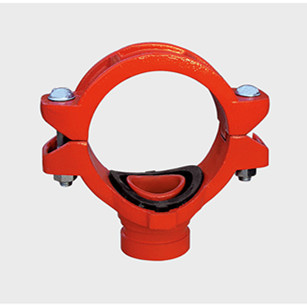

Mechanical Tee(grooved)
Material: Ductile Iron (ASTM A536 Grade 65-45-12)
Gasket Material: EPDM/ Silicon Rubber/NBR
Surface Treatment: Epoxy-(Red/Blue/White), Painted-(Orange/Red), Galvanized
Size: 1"-12"
Working Pressure:300 psi
Certification: UL, FM, ISO 9001:2008
Connect Type: Grooved & Thread
Payment term: T/T, LC
Package: Cartons with pallet/ Wooden case

:
Application: As one of the most popular fittings in fire fighting systems, the grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, oil&gas pipeline, mine piping and ordinary piping delivery. Yinuo is spreading all over the world and winning the appreciations from users at home and abroad.

Nominal Size mm/in	Pipe O.D mm/in	Working Pressure PSI/MPa	Bolt Size	Dimensions mm/in				Hole cuting dimensions
Nominal Size mm/in	Pipe O.D mm/in	Working Pressure PSI/MPa	No.-Size mm	Ø	A	B	C	mm/in
50*32	60.3*42.4	300	2-M10*55	78	115	68	74	46
2*1¼	2.375*1.669	2.07		3.071	4.527	2.677	2.913	1.8
50*40	60.3*48.3	300		78	115	68	74	46
2*1½	2.375*1.900	2.07		3.071	4.527	2.677	2.913	1.8
65*32	73*42.4	300	2-M12*60	96	138	77	84	51
2½*1¼	2.87*1.669	2.07		3.78	5.433	3.031	3.307	2
65*40	73*48.3	300		96	138	77	84	51
2½*1½	2.87*1.900	2.07		3.78	5.433	3.031	3.307	2
65*32	76.1*42.4	300		99	140	78	84	51
3OD*1¼	3*1.669	2.07		3.898	5.512	3.071	3.307	2
65*40	76.1*48.3	300		99	140	78	84	51
3OD*1½	3*1.900	2.07		3.898	5.512	3.071	3.307	2

Our company is specialized in grooved fittings, valves and pipe processing of the Corrosion prevention. We make great contributions for improving the qualities and reducing the cost of the project in field of feed water, fire protection, mineral, electrical power. All grooved fittings & valves use the modern casting tooling of electric furnace smelting, auto-casting, vermicularizing control. The all machining use the CNC machine.
