Weifang Yinuo Casting Co., Ltd. >> FM/UL Approved Ductile Iron 250psi Mechanical Tee (threaded)

FM/UL Approved Ductile Iron 250psi Mechanical Tee (threaded)

Name: FM/UL Approved Ductile Iron 250psi Mechanical Tee (threaded)
Brand: china-manufacturer-directory.com
SKU: 706311282
Availability: InStock
Rating: 4.7 (116 reviews)

Supplier:	Weifang Yinuo Casting Co., Ltd.
Price:	US $ 1.4/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XGQT03S
Markets:	North America,South America,Southeast Asia,Mid East
50*25:	60.3*33.7mm/in
Material:	Iron
Shape:	Equal Tee
Lateral:	90??Tee
Head Code:	Round
Wall Thickness:	SCH30
Finish:	Black Painting
Technics:	Casting
Certification:	ISO
Connection:	Threaded
Standard:	FM & UL

Product Description

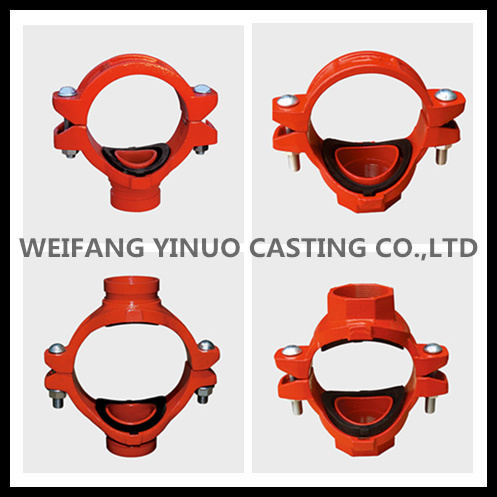

Mechanical Tee(threaded)
Material: Ductile Iron (ASTM A536 Grade 65-45-12)
Gasket Material: EPDM/ Silicon Rubber/NBR
Surface Treatment: Epoxy-(Red/Blue/White), Painted-(Orange/Red), Galvanized
Size: 1"-12"
Working Pressure:300 psi
Certification: UL, FM, ISO 9001:2008
Connect Type: Grooved & Thread
Payment term: T/T, LC
Package: Cartons with pallet/ Wooden case

:

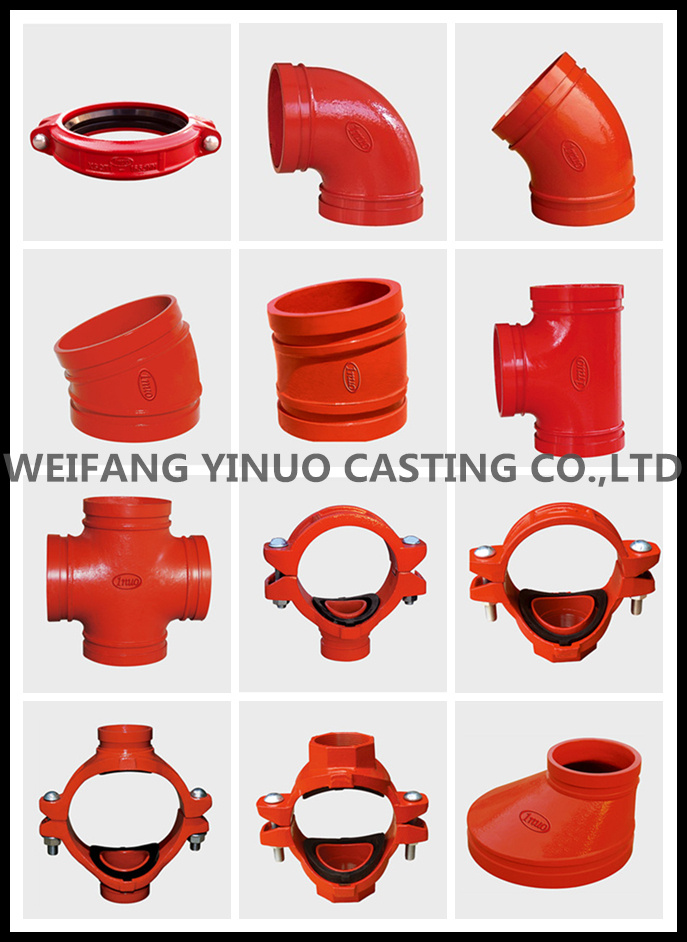

Application: As one of the most popular fittings in fire fighting systems, the grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, oil&gas pipeline, mine piping and ordinary piping delivery. Yinuo is spreading all over the world and winning the appreciations from users at home and abroad.

80*25	88.9*33.7	300	2-M12*65	112	150	76	79	38
3*1	3.500*1.327	2.07		4.409	5.906	2.992	3.110	1.5
80*32	88.9*42.4	300		112	150	76	84	51
3*1¼	3.500*1.669	2.07		4.409	5.906	2.992	3.307	2
80*40	88.9*48.3	300		112	150	76	84	51
3*1½	3.500*1.900	2.07		4.409	5.906	2.992	3.307	2
80*50	88.9*60.3	300		112	150	76	100	64
3*2	3.500*2.375	2.07		4.409	5.906	2.992	3.937	2.500
100*25	114.3*33.7	300	2-M12*75	140	176	90	79	38
4*1	4.500*1.327	2.07		5.512	6.929	3.543	3.11	1.5
100*32	114.3*42.4	300		140	176	90	92	51
4*1¼	4.500*1.669	2.07		5.512	6.929	3.543	3.622	2
100*40	114.3*48.3	300		140	176	90	92	51
4*1½	4.500*1.900	2.07		5.512	6.929	3.543	3.622	2
100*50	114.3*60.3	300		140	176	90	107	64
4*2	4.500*2.375	2.07		5.512	6.929	3.543	4.213	2.500
100*65	114.3*73	300		140	176	97	114	70
4*2½	4.500*2.874	2.07		5.512	6.929	3.819	4.488	2.75
100*65	114.3*76.1	300		140	176	97	114	70
4*3OD	4.500*3	2.07		5.512	6.929	3.819	4.488	2.75
100*80	114.3*88.9	300		140	176	95	134	89
4*3	4.500*3.500	2.07		5.512	6.929	3.74	5.276	3.5

Our company is specialized in grooved fittings, valves and pipe processing of the Corrosion prevention. We make great contributions for improving the qualities and reducing the cost of the project in field of feed water, fire protection, mineral, electrical power. All grooved fittings & valves use the modern casting tooling of electric furnace smelting, auto-casting, vermicularizing control. The all machining use the CNC machine.
