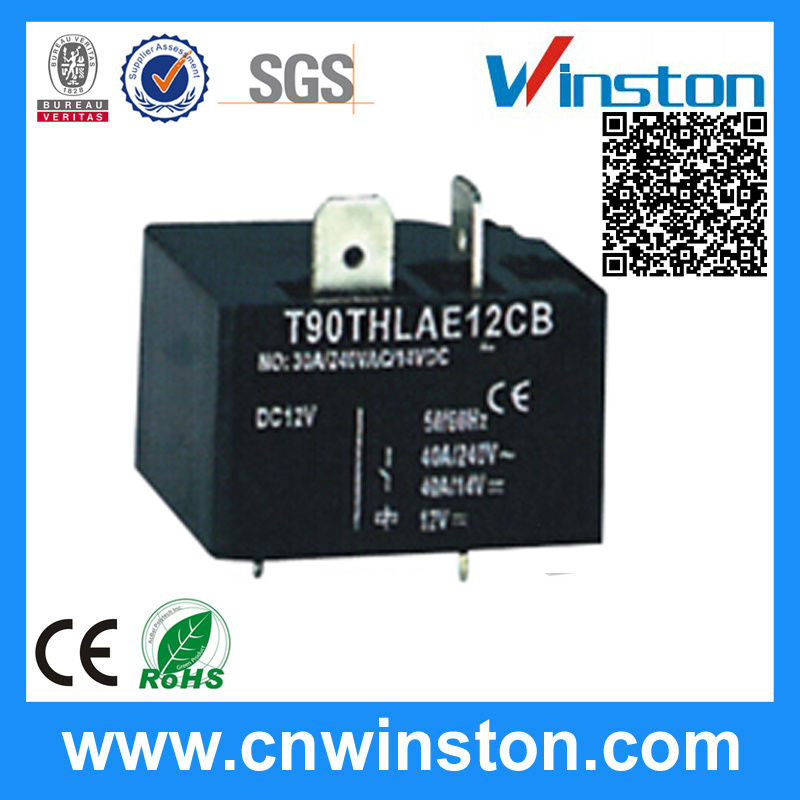

High Quality Mini PCB Power Automotive Electromagnetic Relay with CE

Name: High Quality Mini PCB Power Automotive Electromagnetic Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771650465
Availability: InStock
Rating: 4.6 (106 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 1.2-2.8/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	T90T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Contact Capacity:	40A, 30A, 220VAC 30VDC
Ambient Temperature:	-55~+100 Degree
Weight:	35g
Relay Size:	32.4mm27.5mm20mm
Mounting Form:	PCB & Direct Oupling
Contact Form:	1c
OEM/ODM:	Yes
Condition:	Original New

Product Description

Model: JQX-30F(T93)
Specifications

1) Outline dimensions: 32.4mm*27.5mm*20mm
2) Contact data:
A) Contact arrangement: 1C
B) Material: Silver alloy
3) Max. Switching current: 25A 30A
4) Max. Switching voltage: 28V DC / 250V AC
Max. Switching power: 840W/7.5KVA
Rated load(Resistive): 20 30A/250VAC
5) Coil data:
A) Nominal voltage: 3-110VDC/6-240VDC
B) Pick-up voltage: DC ≤ 75% AC ≤ 80%
C) Drop-out voltage: DC ≤ 10% AC ≤ 30%
D) Coil power: 0.9W
6) Specifications data:
A) Contact resistance: ≤ 50mΩ
B) Insulation resistance: ≥ 100MΩ
C) Dielectric strength Vr. M. S:
I) Between open contacts: ≥ 1500VAC
Ii) Between coil and contacts: ≥ 2500VAC
Iii) Between contacts form: ≥ 2000VAC
D) Ambient temperature: -55 - +100oC
E) Operation/release time: ≤ 15/10ms

Coil Versions

Contact Data
Contact Form	1A SPST(NO); 1B SPST(NC); 1C SPDT(B-M)
Contact Material	Silver Alloy
Contact Resistance	100mΩ (1A 6VDC)
Contact Rating	NO: 30A/14VDC 30A/240VAC
Contact Rating	NC: 30A/14VDC 20A/240VAC
Max. Switching Voltage	250VAC/28VDC
Max. Switching Power	5000VA/560W
Electrical Endurance	10^5 times
Mechanical Endurance	10^7 times

Coil Rating
Nominal Coil Power	0.9W

Coil Versions
Nominal Voltage(VDC)	Pull-in Voltage(VDC)	Release Voltage(VDC)	Max. Applicable Voltage(VDC)	Coil Resistance (Ω)
Nominal Voltage(VDC)	Pull-in Voltage(VDC)	Release Voltage(VDC)	Max. Applicable Voltage(VDC)	0.9W
5	3.75	0.5	6.5	27
6	4.50	0.6	7.8	40
9	6.75	0.9	11.7	97
12	9.00	1.2	15.6	155
15	11.25	1.5	16.8	256
18	13.5	1.8	20.2	380
24	18.00	2.4	31.2	600
48	36.00	4.8	62.4	2560

Operation Specification
Insulation Resistance	1000mΩ 500VDC
Dielectric Strength	BCC 50Hz 2500V
Dielectric Strength	BOC 50Hz 1500V
Operate/Release Time	15ms/10ms
Ambient temperature	-55~100°C
Weight	35g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
