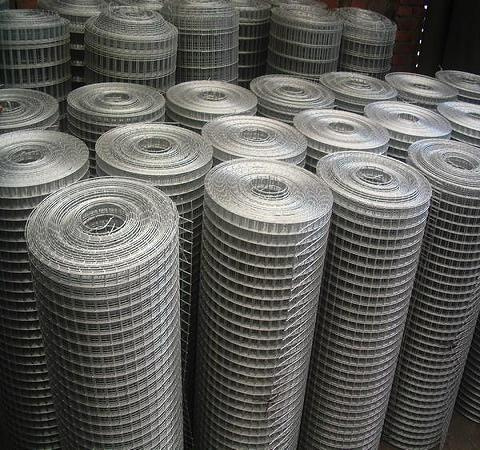

Hot Sale Wire Mesh / Wire Netting / Metal Wire Mesh
| Price: |
US $ 0.25-0.68/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Square Meter |
| Pay Type: |
L/C,T/T,D/P |
1. Brief introduction
Welded wire mesh made of high quality low carbon steel wire, welded wire mesh divides into hot dipped galvanized and electro galvanized. The adoption plates the zinc craft after welding, it is made from high-quality iron wire by automatic equipment. The products have smooth mesh surface, well-proportioned meshes, strong welded points and bright luster. The mesh does not come loose even if cut in parts or being exerted force on parts. Compared with general iron wire, the products are better in respects of anti-corrosive and anti rust.
2. Use:
Used in the industry, agriculture, construction, transport and mining. Such as machine protection cover, ranch fender, garden fender, window protection fender, passage fender, fowl cage, egg basket and foodstuffs basket.
3. Surface treated:
Galvanized and PVC coated, stainless steel wire
4. Weaving and characteristics:
Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
Electric galvanizing after weaving
Weaving with electric galvanized iron wire
PVC coated wire mesh
Specification List of Wire Mesh:
|
Opening
|
Wire Diameter
|
In inch
|
In metric unit(mm)
|
1/4" x 1/4"
|
6.4mm x 6.4mm
|
22,23,24
|
3/8" x 3/8"
|
10.6mm x 10.6mm
|
19,20,21,22
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21,22,23
|
5/8" x 5/8"
|
16mm x 16mm
|
18,19,20,21,
|
3/4" x 3/4"
|
19.1mm x 19.1mm
|
16,17,18,19,20,21
|
1" x 1/2"
|
25.4mm x 12.7mm
|
16,17,18,19,20,21
|
1-1/2" x 1-1/2"
|
38mm x 38mm
|
14,15,16,17,18,19
|
1" x 2"
|
25.4mm x 50.8mm
|
14,15,16
|
2" x 2"
|
50.8mm x 50.8mm
|
12,13,14,15,16
|
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
|
|
|
Galvanized Fencing Mesh:
|
Opening
|
Wire Diameter
|
In inch
|
In metric unit(mm)
|
2" x 3"
|
50mm x 75mm
|
2.0mm,2.5mm,1.65mm
|
3" x 3"
|
75mm x 756mm
|
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
|
2" x 4"
|
50mm x 100mm
|
2.11mm,2.5mm
|
4" x 4"
|
100mm x 100mm
|
2.0mm,2.5mm
|
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
|
|
|
PVC Coated Mesh:
|
Opening
|
Wire Diameter
|
In inch
|
In metric unit(mm)
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21
|
3/4" x 3/4"
|
19mm x 19mm
|
16,17,18,19,20,21
|
1" x 1"
|
25.4mm x 25.4mm
|
15,16,17,18,19,20
|
Technical Note:
|
|
| Prod Model: |
XL-FY735 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Aperture: |
30X30mesh-60X60mesh |
| Wire Gauge: |
0.12mm-1.6mm |
| Surface Treatment: |
Galvanized |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Application: |
Filter |
| Weave Technique: |
Plain Weave |
Anping County Xinlu Wire Mesh Products Co., Ltd, . Is located in Anping county which well known of "The hometown of wire mesh in China", emerged from Anping mine screen mesh factory in 1994 with a founding of 1.5 million RMB. It has a comparatively long history, a large scale production rate, and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.
Our company produce and sell as following: Johnson specialty screens, Water well screen, Wedge wire screen, Wedge wire slot tube, Wire wrap screens, Strainer pipe, Spiral screen tube, Rod based continuous slot screen pipe, Wire-wrap screen pipe, Mine screen mesh, Screen cylinders, Oil screen tube, Drilling well screen, Reverse rolled screen tube, V-ee wire screen, screen cylinders, sand control well screen, water filter, screen nozzle, water & gas strainer, filter element, stainless steel screen, low carbon steel screens, welded wedge wire screens, screen filter, rotary filter, various kinds of ore screen meshes, sieve bend, arc screen, wire wrapped panel, flat wedge wire panel, vibrating sieve screen plate, wire wrapped liner, johnson scren plate, continuous slot screens, Gabions, chain link fence, fence netting, welded wire mesh, stainless stell wire mesh, Galvanized wire, Galvanized wire mesh, crimped wire mesh and wire mesh, Mesh belt conveyor, Window Screening Series, Metal jewelry products and so on. The products are used in drilling well / pump, the trades, such as ore choosing, petroleum, chemical industry, electron, transportation, plastics, food, architecture, traffic, Musical Instruments, safety, etc. Our products can be seen everywhere in China, as well as African countries, Middle East and the regions of Southeast Asia.
