Product Specifications
| Prod Model: |
IBOX-QM77E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Embedded Systems |
| Processor Type: |
Intel |
| Certification: |
FCC |
Product Description
Main Feature
· Industrial grade fanless design in Al-alloy
· Intel QM77 Chipset
· Support CPU Intel Dual Core i3/i5/i7 Series
· 2* RJ45 10/100/1000M LAN
. 8*RS232(2*232/422/485 Optional)
· Support DC9~36V power supply
Introduction

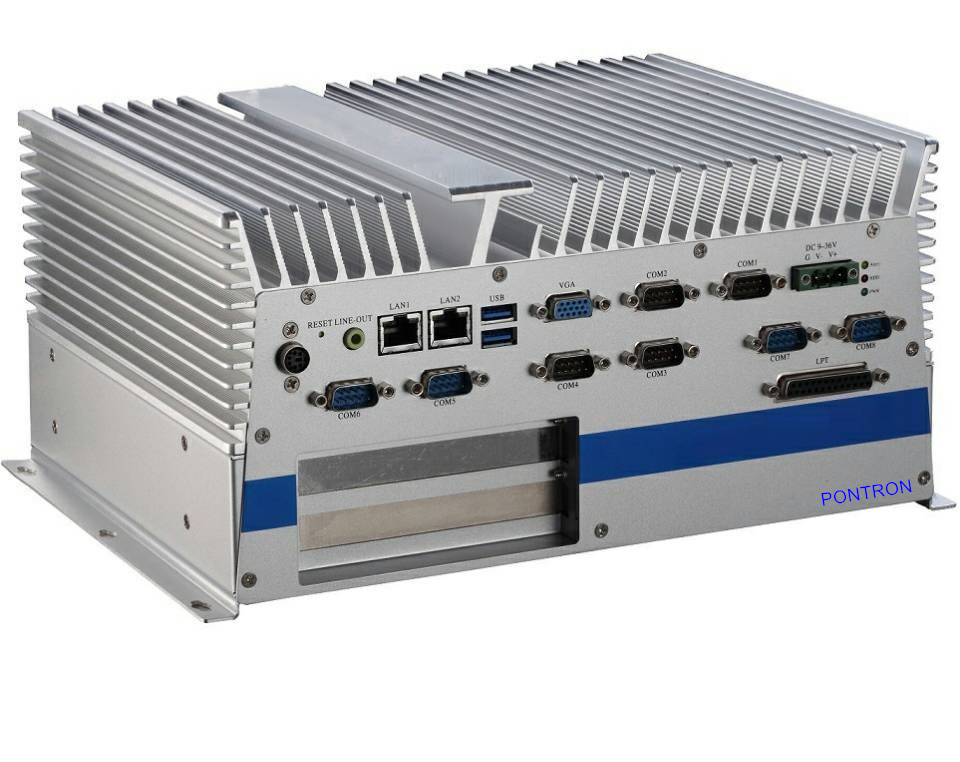

IBOX-QM77E is Industrial grade MINI box PC's, which supports Intel CPU Dual Core i3/i5/i7 Series, Intel QM77 Chipset, which comes with 1*VGA, 8*RS232(2*232/422/485 Optional), 2*RJ45 10/100/1000M LAN, 4*USB2.0, 2*USB3.0 with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to Intelligent car, Environmental control, equipment, industrial line, transportation,
Automation, communication etc.
| Material | Industrial Al-alloy |
| CPU | Intel Dual Core i3/i5/i7 Series |
| Chipset | Intel QM77 |
| Memory | DDR3 2G/4G/8G(optional) |
| Storage | 2.5"SATA 500G HDD,SSD: mSATA or 2.5"16G/32G(optional) |
| I/O | 1 x VGA |
| 8 x RS232(2 x 232/422/485 Optional) |
| 2 x RJ45 10/100/1000M LAN |
| 4 x USB2.0, 2 x USB3.0 |
| 1 x PS/2 KB/M |
| 1 x Audio Line Out |
| 1 x LPT |
| WIFI(Optional) |
| Power supply | DC 9~36V Input |
| LED light | 1 x Power LED,1 x HDD LED,1 x Alert |
| Watchdog timer | Programmable overtime interrupt or recovery |
| Color | White(optional) |
| OS | Windows 7,Windows XP, Windows XP Embedded,Linux |
| Dimension | 284 x 222.9 x 143.4mm |
| N.G | 5.5KG |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing ) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD)
1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
| Shock | 50 g peak acceleration(11ms duration)(SSD)
20 g peak acceleration(11ms duration)(Built-in HDD module) |
| Ordering Information | IBOX-QM77E:Mini box PC's with Intel CPU i3-3120M Dual Core 2.5GHz, W/SSD32G, W 4G memory, 19V power supply. |
