Product Specifications
| Prod Model: |
IBOX-QM57 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Embedded Systems |
| Processor Type: |
Intel |
| Certification: |
FCC |
Product Description
Main Feature
· Compacting fanless design
· Intel core I7-2.66G
· Support 3*RS232 COM
· Support DC12V power supply
Introduction

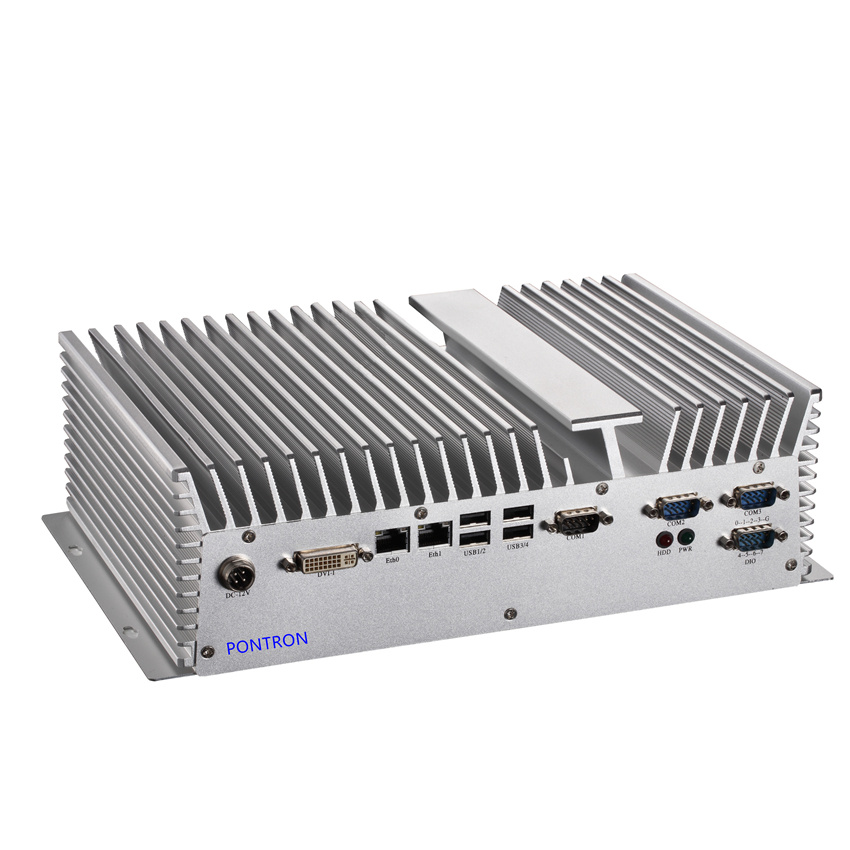

IBOX-QM57 is MINI box PC's with Intel Core I7-620M 2.66G CPU, Intel QM57 Chipset, which comes with 1*DVI, 3*RS-232(1*RS485/422 optional), 2*RJ45 10/100/1000M LAN, 4*USB2.0, with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to office, equipment, industrial line, transportation, automation, communication etc.
| Material | Industrial Al-alloy |
| CPU | Intel Core i7-620M 2.66GHz |
| Chipset | Intel QM57 |
| Memory | DDR3 2G/4G(optional) |
| Hard disk | 2.5"SATA 500G HDD/16/32G SSD(optional) |
| I/O | 1 x DVI |
| 3 x RS-232(1 x RS485/422 optional) |
| 2 x RJ45 10/100/1000M LAN |
| 4 x USB2.0 |
| 1 x DIO 8Bit(4bit input, 4bit output) |
| 1 x WIFI(optional) |
| Power supply | DC 12V Input |
| LED light | 1 x Power LED,1 x HDD LED |
| Watchdog timer | Programmable overtime interrupt or recovery |
| Color | White(optional) |
| OS | Windows 7,Windows XP, Windows XP Embedded,Linux |
| Dimension | 308 x 192.4 x 88.9mm |
| N.G | 3.5KG |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing ) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD)
1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
| Shock | 50 g peak acceleration(11ms duration)(SSD)
20 g peak acceleration(11ms duration)(Built-in HDD module) |
| Ordering Information | IBOX-QM57:Mini box PC's with Intel Core i7-620M 2.66GHz, W/SSD16Gb, W/2G memory, 12V power supply. |
