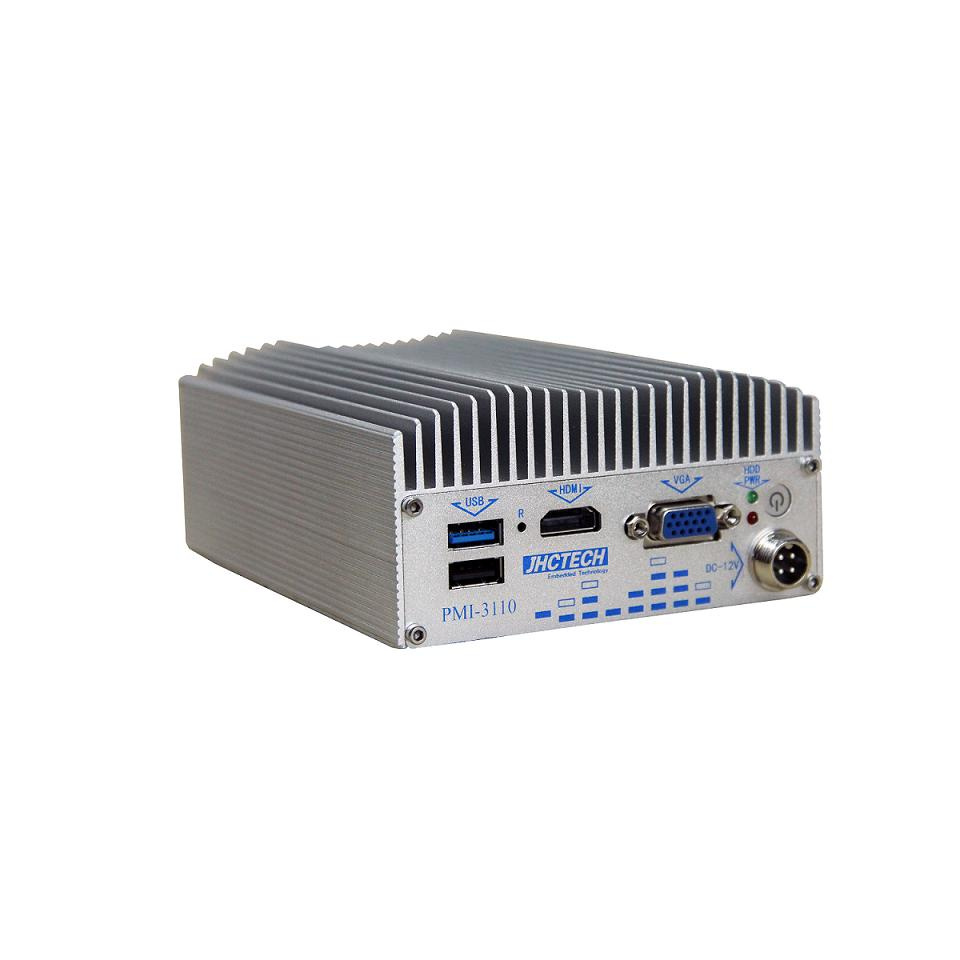

Industrial Computer with Windows 7/8 System

Name: Industrial Computer with Windows 7/8 System
Brand: China-Manufacturer-Directory.com
SKU: 755218345
Availability: InStock
Rating: 4.4 (82 reviews)

Supplier:	Shenzhen JHC Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	PMI-3110/S002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Line:	Industrial Computer
CPU:	Intel Celeron J1900 Quad-Core Four Thread Processo
Memory:	1*DDR3l 1333MHz SODIMM, up to 4GB
Expansion Card:	2*Mini Pcie Card
LAN:	2* Gigabit Ethernet Ports
Display:	VGA&HDMI
COM&USB:	1COM&2USB
Option:	3G/WiFi
OS:	Windows 7, Windows XP, Windows XP Embedded, Linux
Processor Type:	Intel
Certification:	FCC
Type:	Embedded Systems

Product Description

Features:

Aluminum alloy chassis, Fanless cooling design
Intel Celeron J1900 up to 2.41GHz
1*DDR3L 1333MHz SODIMM, Max. 4GB
4*100M port switch
VGA &HDMI Display
mSATA and 2.5"SATA HDD Bay
2*USB

SYSTEM	CPU	Intel® Celeron J1900 Processor 2.0 to 2.41GHz Quad-core four thread processor, 2M Cache, 22nm,TDP10W
	ARM	1*DDR3L 1333MHz SODIMM, up to 4GB
	EXPANSION	MINI PCIe CARDx2, one is PCIe x1+USB signal(with sim slot), the other is SATA2 signal, support mSATA disk
	DISPLAY	VGA&HDMI dual display interfaces,support synchronous or asynchronous display
	M/K	USB
	LAN	2* Gigabit Ethernet ports
	SSD	mSATA× 1, support 8G to 256G mSATA disk
	HDD	2.5" HDD Bay
	COM&USB	1RS232 & USB3.01 and USB 2.0*1
	Audio	Line-out and Mic
	System control	1*Power switch , reset switch x1
	LED indicator	1*Power light,HDD light×1
	AUDIO	Mic-in /Phone/Line out
	LED LIGHT	Power light×1,HDD light×1
	WATCH DOG TIMER	Timer system reset/interruption
	OS	Windows 7,Windows XP,Windows XP Embedded, Linux
POWER	DC IN-PUT VOLTAGE IN-PUT	built-in DC-DC Converter
	DC IN-PUT VOLTAGE IN-PUT	DC 12V
	AC IN-PUT VOLTAGE IN-PUT	power adapter (option )
	AC IN-PUT VOLTAGE IN-PUT	100VAC~240VAC@50~60Hz
	OPTION	WIFI /3G
MECHANICAL	STRUCTURE	aluminum-case, Wrinkle-shape for cooling and ultrathin
	COLOUR	Silver aluminum+ silver SGCC
	INSTALLATION	on-wall, desktop installation
	DIMENSIONS	111144.556.1mm
ENVIROMNTAL	OPERATION TEMPERATURE	-10°C ~ 55°C - SSD Without Airflow; -10°C ~ 45°C - HDD With out Airflow
	STORAGE TEMPERATURE	-20°C ~ 70°C (-4°F ~ 158°F)
	STORAGE HUMIDITY	5~90%@40°C,non-condensing
	VIBRATION	5 grms / 5 ~ 500Hz / in work status (SSD)
	VIBRATION	1 grms / 5 ~ 500Hz /in working status(HDD )
	SHOCK	50 g peak acceleration (duration 11ms)(CFD)
	SHOCK	20 g peak acceleration (duration 11ms)(HDD )
EMC	CE /FCC A class, UL
ORDER INFORMATION
PMI-3110/S001
Embedded PC , Intel Celeron J1900, VGA/HDMI/2* Gigabit Ethernet ports/2USB/1COM/mSATA
PA-60DC12
AC/DC power adapter, DC12V/5A 60W
