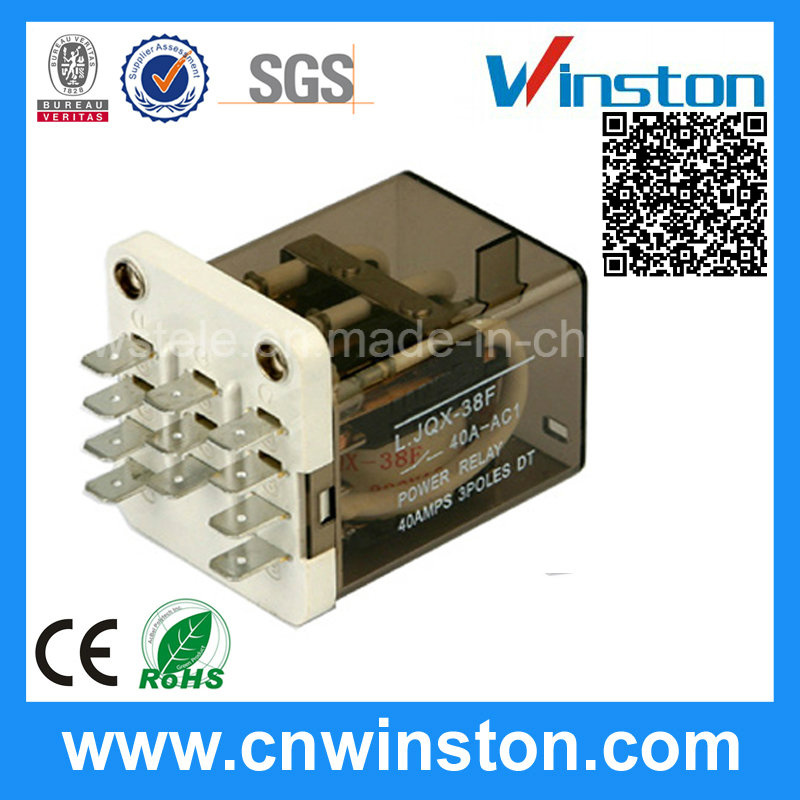

Industrial Power Socket Mounted Electromagnetic Relay with CE
| Price: |
US $ 2.8-3.3/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Product Description:Terminal layout: 3Z, 3H, 3D
Contact capacity: 40A 250VAC 2HP 250VAC
Contact resistance (mΩ): ≤30mΩ
Insulation resistance (mΩ): ≥1,000mΩ
Dielectric strength: BOC: 1200VAC; BCC: 2,500VAC
Coil nominal voltage: 5 TO 60VDC 12V TO 220VAC
Coil nominal power: AC: ≈2.0W; DC: ≤2.0W

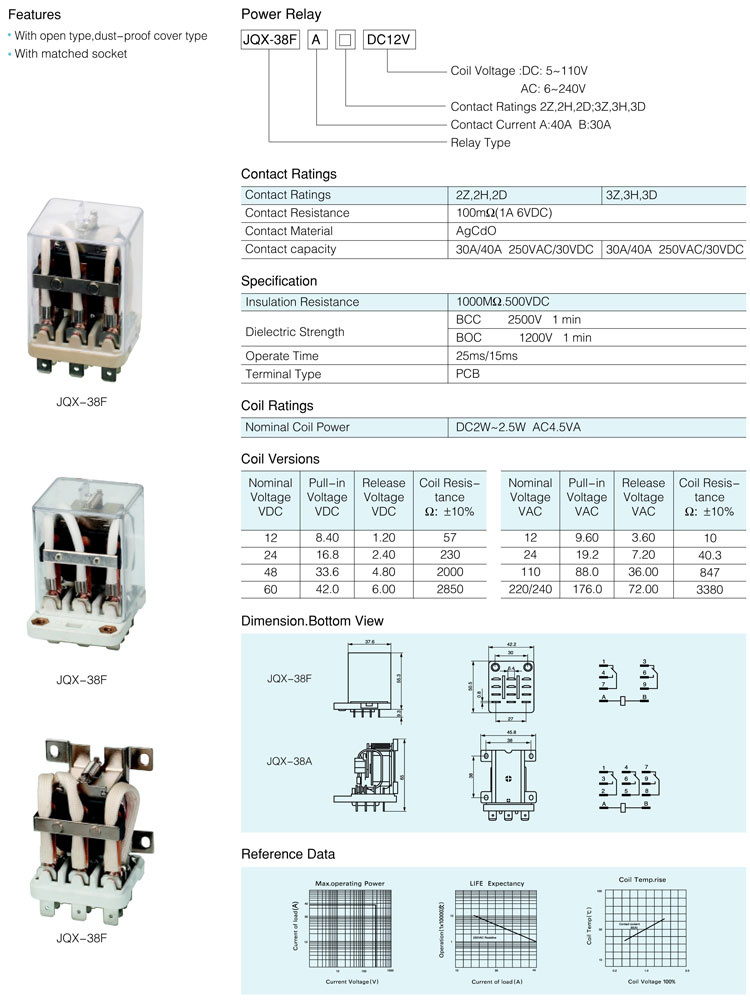

Mounting methods: socket and pcbData:| Model | JQX-38F |
| PIN Length | 10mm |
| Coil voltage | 12VDC/24VDC/250VAC for normal |
| Contact | Form | 3Z 3H 3D |
| Material | Silver alloy |
| Resistance Performance | 40A/24VDC/250VAC |
| Coil power at 23ºC | DC(W) | <1.5W |
| AC(VA) | <2.5VA |
| Coil voltage | DC(V) | 6~220V |
| AC(V) | 6~380V |
| Pick-up voltage at 23ºC | DC≤75% AC≤80% |
| Release voltage at 23ºC | DC≥10‰ AC≥30‰ |
| Max voltage at 23ºC | 110% |
| Contact resistance (at 6VDC 1A) | ≤100mΩ |
| Dielectric Strength | Between Open Contacts | ≥1200VAC 50Hz/1min Leakage current 1mA |
| Between Contacts | ≥1500VAC 50Hz/1min Leakage current 1mA |
| Between coil & Contacts | ≥1500VAC 50Hz/1min Leakage current 1mA |
| Insulation Resistance at 500VDC | ≥1000MΩ |
| Life | Electrical | 105 Times (Frequency: ON 1time/1s OFF 1time/1s) |
| Mechanical | 10 6Times (Frequency: 300times/1min) |
| Ambient Temperature | -25ºC ~ +55ºC |
| Terminal type | Insert type / Welding type |
| Suitable sockets | 38F11A |
| Unit weight | ≈130G |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
Our Services
| 1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: Manufacture company, each of the products is tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty. |
Trade Information | Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Prod Model: |
JQX-38F |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Contact Form: |
3z |
| Contact Capacity: |
30/40A 250V AC |
| Dimensions(mm): |
50.5*42.2*55.3 |
| Weight: |
130g |
| Quality: |
2 Year Warranty |
| Mounting Form: |
Welding |
| Condition: |
Original New |
| OEM/ODM: |
Yes |
