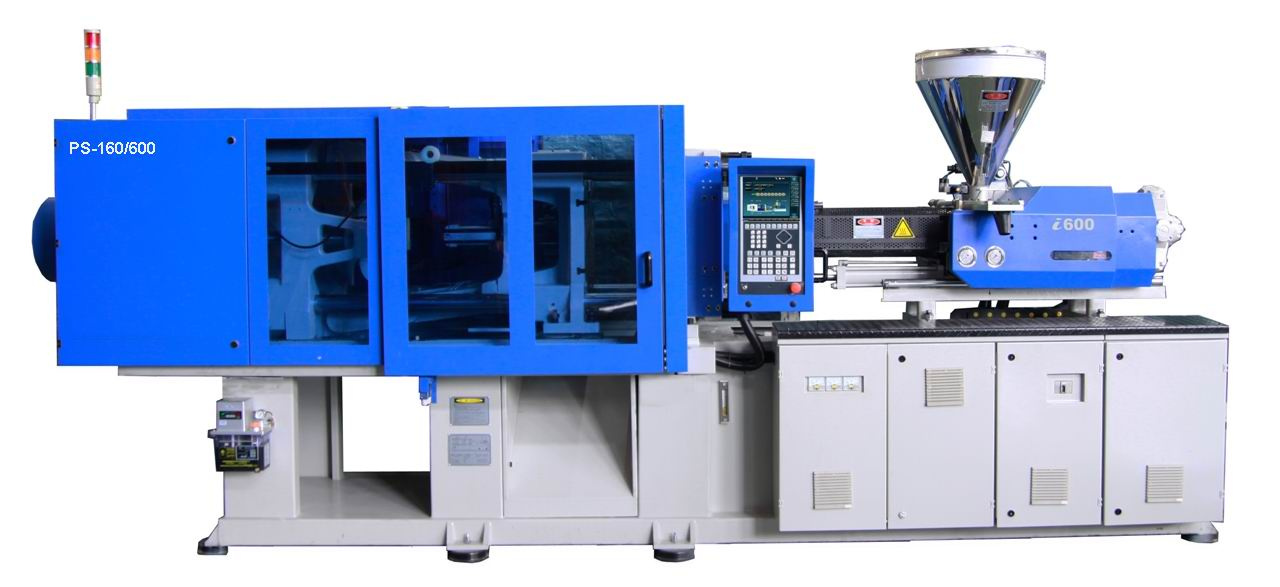

Injection Molding Machine for Making Fork and Spoon

Name: Injection Molding Machine for Making Fork and Spoon
Brand: china-manufacturer-directory.com
SKU: 677682571
Availability: InStock
Rating: 5 (90 reviews)

Supplier:	Wuxi Poshstar Industry Co., Ltd.
Price:	US $ 30000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PS-160-600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Preform Injection
Structure:	Horizontal
Plastic Type:	Thermoplastic
Plasticizing Way:	Plunger Type
Clamping Way:	Hydraulic
Automation:	Automatic
Computerized:	Computerized
Certification:	ISO9001:2008

Product Description

Guarantee : 1 year.
Installation:
We can send technician to install the machine or customer can send technician to our factory for training.
Buyer need to pay air thicket & food & hotels.
Remark:
(a) All specifications and designs are subject to change without notice.
(b) The price of the machine all are in US dollars based on FOB Shanghai.
(c) The price is base on 380V, 50Hz, 3 Phase, for special power, add additional 5% of all machine.

				PS-160/600
ITEMS				A		B		C
INECTION UNIT		Screw Diameter	mm	42		45		50
		Screw L/D Ratio	L/D	21.4		20		18
		Shot Size(Theoretical)	cm3	287		329		406
	(Ps)	Injection Weight	g	261		300		370
		Injection Pressure	MPa	212.8		185.4		150.2
		Injection Rate into Air	cm3/s	125	156.3	143.5	179.4	177.2	221.4
		Injection Stroke	mm	207
		Injection Speed	mm/s	90/113
		Screw Speed	rpm	208/260
CLAMPING UNIT		Clamping Force	KN	1600
		Clamping Stroke	mm	480
		Space Between Tie Bar	mm	470*470
		Max. Mold Height	mm	530
		Min. Mold Height	mm	200
		Eject Stroke	mm	150
		Eject Force	KN	34
		No. Of Ejector Pins	piece	5
		Max. Pump Pressure	MPa	17.5
OTHERS		Pump Motor Power	KW	16/20
		Heater Power	KW	10.4/12.9
		Hopper Capacity	L	25
		Oil Tank Capacity	L	350
		Weight	t	5.2

WUXI POSHSTAR INDUSTRY Co., Ltd. is established in 2003, succeeding blow moulding techniques & experiences accumulated many years by our engineers and technicians in this field.

We have been able to carve a niche in the industry due to the unstinting support of our industrious team; In other words, our team is the backbone of our organization. Our professionals possess vast experience, expertise and extensive knowledge in their respective domain which allows them to utilize their skill and talent wisely. We also can provide all the necessary facilities to our workforce in order make the latest and most advanced technology available to them. We have appointed the following professionals as a part of our team:

(1)Designers

(2)Quality Analysts

(3)Skilled Craftsmen

(4)Machine Operators

(5)Packaging Experts

(6)Sales and Marketing Professionals

Looking forward to cooperating with you in future.
