Inverted Metallurgical Microscope Mlm-20bd High Quality

Name: Inverted Metallurgical Microscope Mlm-20bd High Quality
Brand: China-Manufacturer-Directory.com
SKU: 684438302
Availability: InStock
Rating: 4.7 (117 reviews)

Supplier:	Ningbo Gamry Optical Instrument Co., Ltd.
Price:	US $ 2350/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MLM-20BD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Function:	Metallurgical Microscope
Feature:	Inverted Microscope
Type:	Metallographic
Principle:	Optics
Mobility:	Portable
Number Of Cylinder:	Binoculars
Magnification:	500-1000X
Shape:	Rectangular Prism

Product Description

1.Introduction

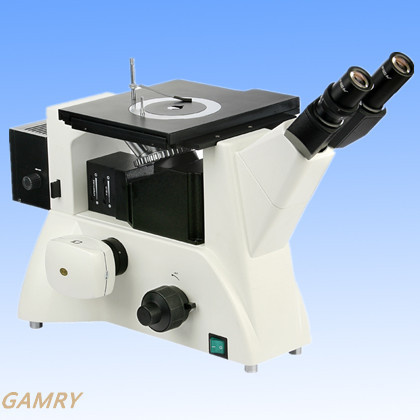

MLM-20BD Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

Specification:
Eyepiece	Wide field WF10X/Φ22mm
Infinity Plan achromatic objective	Equipped with bright and dark field objectives
	PL L5X/0.12BD
	PL L10X/0.25BD
	PL L20X/0.40BD
	PL L50X/0.70BD
Eyepieces tube	Inclination 45° and interpupillary distance:53-75mm
Focus system	Coaxial coarse/fine focus system with tension adjustable and limit stopper, the minimum division of fine focusing is 2μm
Nosepiece	QuintupleBackward ball bearing inner locating
Stage	mechanical stage, 242mmX200mm, moving range: 30mmX30mm
	Rotundity and rotatable stage size: maximal measurement: Φ130mmand minimal clear aperture is less than Φ20mm
Illumination system	12V50W, halogen lamp, adjustable brightness
	Integrated field diaphragm, aperture diaphragm and system polarizer
	Equipped with frosted glass and yellow, green and blue filters
Optional Accessory	Eyepiece	10X Dividing eyepiece (field number Φ22mm)
	Objective	40X, 60X, 80X,100X Bright and dark field objective
	CCD adapter	0.5X,1X
	Camera	USB output:1.3M/2.0M/3.0M pixel VIDEO output:380/520TV Line
	Digital camera adapter	CANON(EF) NIKON(F)

Ningbo Gamry Optical Instrument Co., Ltd. is a professional company which was established at 1997, specialized in the research, development, manufacturing and selling of a wide range of high-precision optical instruments and components.

Our main products include measuring microscopes, biological microscopes, metallurgical microscopes, stereo microscopes, and refractometers ect. Our company also produces various types of optical components and optical scaling parts, in particular to the fabrication of big astronomical mirrors.

Our objective is to strive for becoming the first-class optical enterprise by providing high-quality products with price advantage, timely delivery, and good services to satisfy our old and new customers.

We welcome your inquiries, and are at your disposal for any information you might need. Please contact us now.
