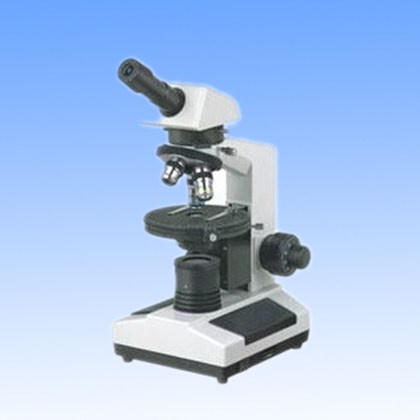

Professional Polarizing Microscope with High Quality Np-107A

Name: Professional Polarizing Microscope with High Quality Np-107A
Brand: China-Manufacturer-Directory.com
SKU: 685530612
Availability: InStock
Rating: 4.9 (106 reviews)

Supplier:	Ningbo Gamry Optical Instrument Co., Ltd.
Price:	US $ 600-630/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	NP-107A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Function:	Polarizing Microscope
Principle:	Optics
Mobility:	Desktop
Number Of Cylinder:	Monocular
Magnification:	100-500X
Shape:	Rectangular Prism
Type:	Polarizing

Product Description

1. Introduction:
NP-107A with the features of easy operation, complete functions and economy, it is ideal instrument in geology, petroleum, coal, chemicals and physic fields. It is also widely used in academic demonstration and research

Technical data:
Viewing Head	Monocular Head at 45°,360°Readable
Eyepiece	Eyepiece WF10×with Scale of Crosshair
Objective	Strain free Achromatic Objective 4×\10×\40×
Nosepiece	Toward Quadruple Nosepiece
Analyzer	Fixed Analyzer
Bertrand Lens	Bertrand Lens, Sliding in/ out of Optical Path
Optical Compensator	λ Slip (first class red)
Optical Compensator	1/4λ Slip
Revolving Round Stage	Diameter Φ135mm, 360° Rotatable and Graduate in 1° Increments, Minimum Resolution 6′when Using Venire Scale, Center Adjustable
Condenser	Abbe Condenser with Iris Diaphragm&Filter
Focusing	Coaxial Coarse & Fine Adjustment , Range 28mm, Fine Division 0.002
Polarize	0°-90° Rotatable Located on the Top of collector
Illumination	6V/ 20W Halogen Lamp, Brightness Adjustable

Ningbo Gamry Optical Instrument Co., Ltd. is a professional company which was established at 1997, specialized in the research, development, manufacturing and selling of a wide range of high-precision optical instruments and components.

Our main products include measuring microscopes, biological microscopes, metallurgical microscopes, stereo microscopes, and refractometers ect. Our company also produces various types of optical components and optical scaling parts, in particular to the fabrication of big astronomical mirrors.

Our objective is to strive for becoming the first-class optical enterprise by providing high-quality products with price advantage, timely delivery, and good services to satisfy our old and new customers.

We welcome your inquiries, and are at your disposal for any information you might need. Please contact us now.
